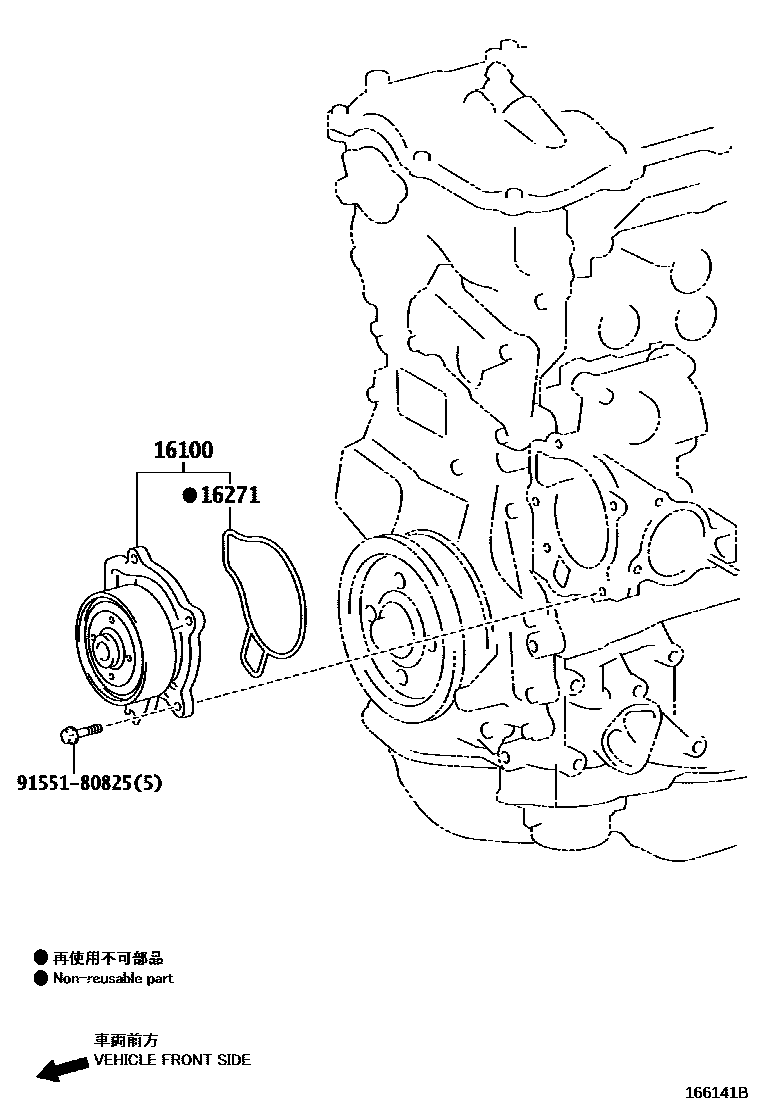

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10¥13,400201112-201809

main16100-39595i8ARFTS..ARL10¥9,500201510-201908

main16100-39615i2GRFKS..GRL1#¥9,500201510-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GRL1#¥9,500202004-202007

16271GASKET, WATER PUMP

main16271-31020i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10¥2,320201112-201809

main16271-31050i2GRFKS..GRL1#¥1,740201510-202007

main16271-36040i8ARFTS..ARL10¥340201510-201908

9155180825

main91551-80825¥80

3 parts on this diagram · 4 diagrams in section
