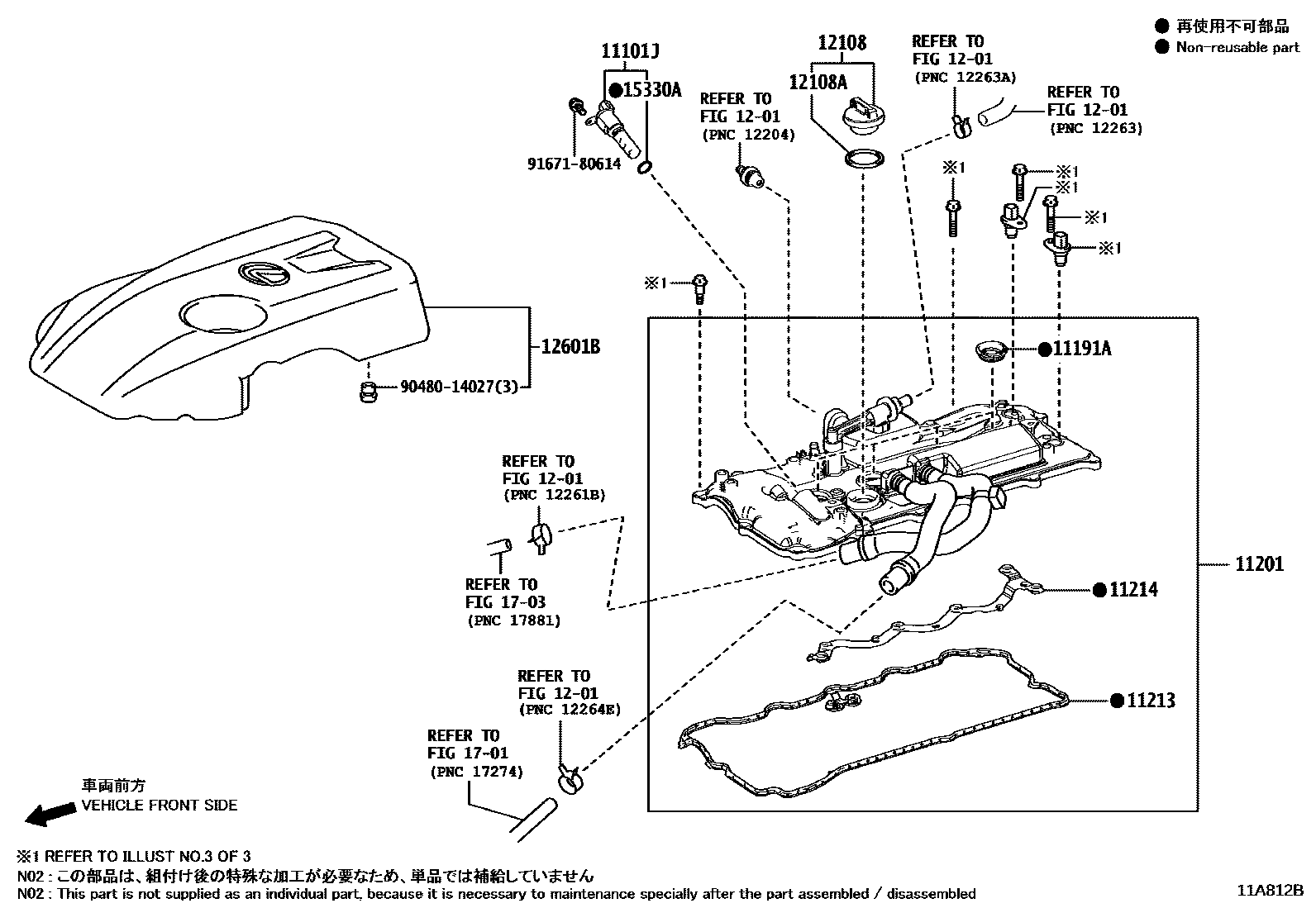

CYLINDER HEAD

0001 1HEAD COVER 0002 1CAMSHAFT HOUSING & CYLINDER H0003 1FITTING PARTS 0004 1 0005 1 0006 1 0007 1CYLINDER HEAD(LH BANK) 0008 1CYLINDER HEAD(RH BANK) 0009 1CYLINDER HEAD COVER 0010 1ENGINE COVER & V BANK COVER 0011 1 0012 1

11101HEAD SUB-ASSY, CYLINDER

main11101-39596i4GRFSE..GRL11201201-201402

sub11101-39597

main11101-39597i4GRFSE..GRL11201402-201510

main11101-39607i2GRFSE..GRL15;2GRFSE..GRL10..8FC201112-201402

sub11101-39608

main11101-39608i2GRFSE..GRL10,15201402-201411

sub11101-39855

main11101-39786i2GRFXE..GWL10201203-201402

sub11101-39787

main11101-39787i2GRFXE..GWL10201402-201411

sub11101-39788

main11101-39788i2GRFXE..GWL10201411-201809

main11101-39855i2GRFSE..GRL10,15201411-201510

main11101-39885i8ARFTS..ARL10201510-201708

sub11101-39886

sub13715-36041

main11101-39886i8ARFTS..ARL10201708-201908

sub11101-39887

main11101-80001i2GRFKS..GRL1#201510-202007

sub11101-80017

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i8ARFTS..ARL10201510-201908

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-31010i8ARFTS..ARL10201510-201908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-31232i2GRFSE..GRL10201112-201510

main11201-31280i2GRFXE..GWL10201203-201809

main11201-31300i2GRFKS..GRL1#201510-201609

sub11201-31301

main11201-31301i2GRFKS..GRL1#201610-201909

sub11201-31302

main11201-31302i2GRFKS..GRL1#201910-202007

main11210-36020i8ARFTS..ARL10201510-201908

11213GASKET, CYLINDER HEAD COVER

main11213-31040i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main11213-31060i2GRFXE..GWL10201203-201809

main11213-31070i2GRFKS..GRL1#201510-201909

sub11213-31090

main11213-31090i2GRFKS..GRL1#201910-202007

main11213-36050i8ARFTS..ARL10201510-201908

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-31020i2GRFSE..GRL10201112-201510

main11214-31040i2GRFXE..GWL10201203-201809

main11214-31050i2GRFKS..GRL1#201510-201909

sub11214-31070

main11214-31070i2GRFKS..GRL1#201910-202007

main11214-36020i8ARFTS..ARL10201510-201908

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201504

main12180-31010i8ARFTS..ARL10201510-201908

main12180-38010i2GR#,4GRFSE..GRL1#,GWL10201505-202007

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2GR#,4GRFSE..GRL1#,GWL10201505-202007

main90430-37140i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201505

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-31040i2GRFKS..GRL1#201510-202007

NO.2

sub12601-31041

main12601-31050i2GRFKS..GRL1#201510-202007

NO.1

main12601-36220i8ARFTS..ARL10201510-201606

sub12601-36221

main12601-36221i8ARFTS..ARL10201607-201908

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201908

1701

1703

9048014027

main90480-14027

9167180614

main91671-80614

15 parts on this diagram · 12 diagrams in section
