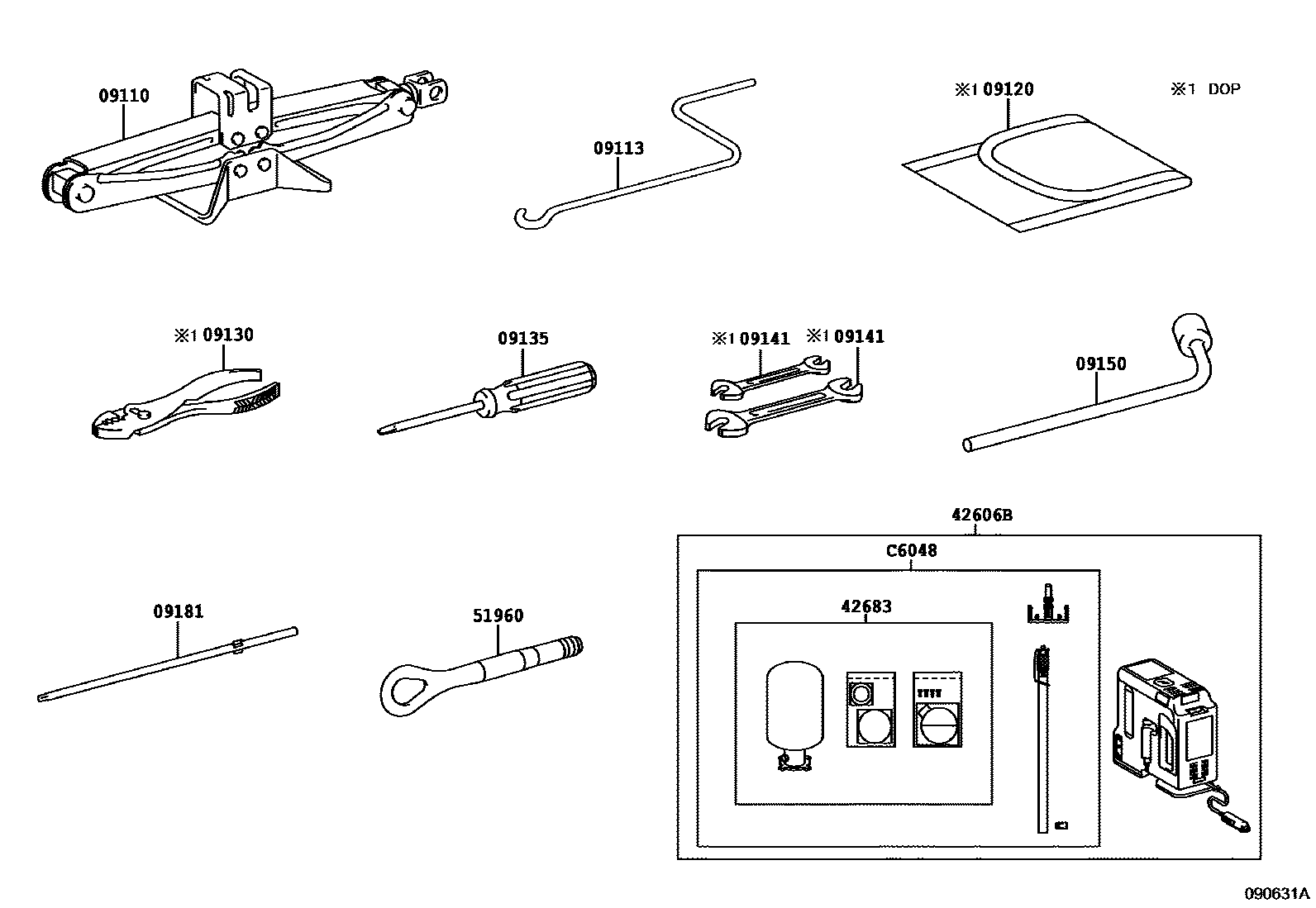

STANDARD TOOL

09110JACK ASSY

main09111-30160iGRL10201112-201602

sub09111-30181

main09111-30180iARL10,GRL1#,GWL10201603-202007

sub09111-30181

09113HANDLE, JACK

main09113-30050iGRL1#,GWL10201112-202007

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060iGRL1#,GWL10201112-202007

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-48010iGRL1#,GWL10201112-201207

main09150-76020iGRL10201208-202007

09181ROD, PARKING BRAKE RELEASE

main09181-30010iGRL1#,GWL10201112-202007

42606BREPAIR KIT, TUBELESS TIRE

main42606-50020iGRL11201201-201205

sub42606-50021

main42606-50021iGRL11201206-201309

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub42606-50022

42683SEAL, TIRE REPAIR

main42683-50020iGRL11201201-201206

sub42683-50021

main42683-50021iGRL11201206-201309

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub42683-50022

51960HOOK ASSY, FRONT

main51961-53010iGRL10201112-202007

C6048REPAIR SET, TIRE

mainC604850020iGRL11201201-201206

subC6048-50021

mainC604850021iGRL11201206-201309

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

subC6048-50022

12 parts on this diagram · 1 diagram in section
