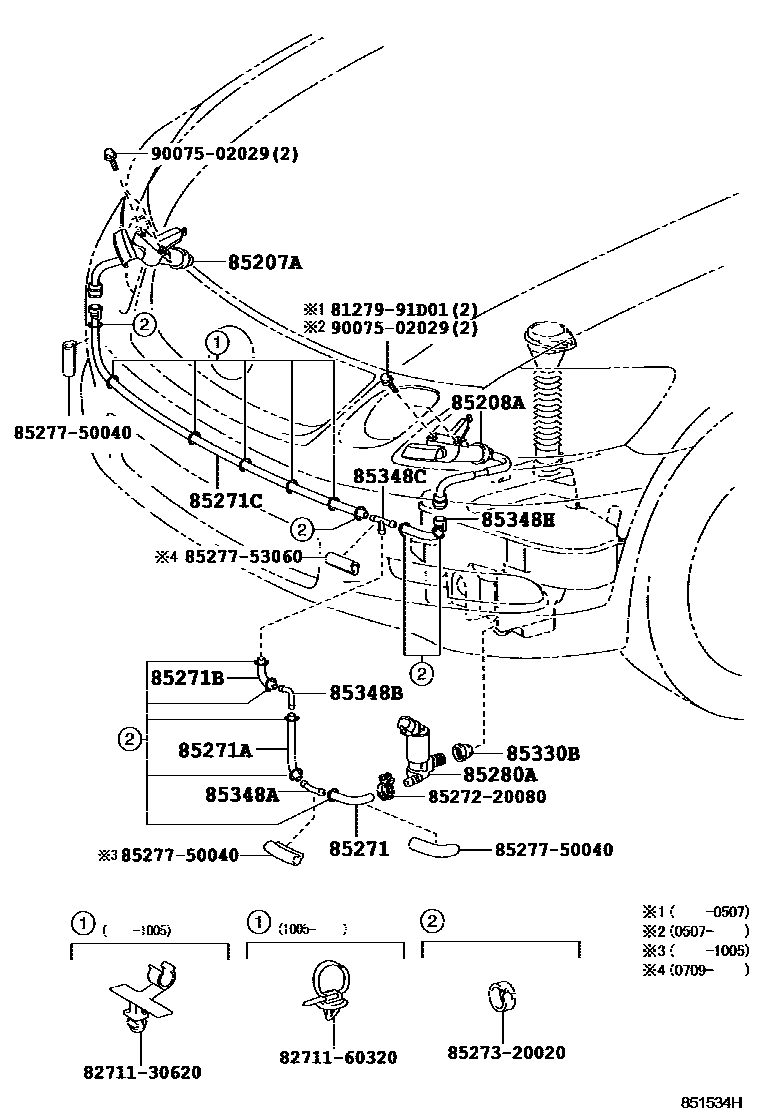

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85271HOSE, HEADLAMP CLEANER, NO.1
L=60,WITH(HEADLAMP CLEANER)
85271AHOSE, HEADLAMP CLEANER, NO.2
L=140,WITH(HEADLAMP CLEANER)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=50,HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1190,HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
WITH(HEADLAMP CLEANER)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
WITH(HEADLAMP CLEANER)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP-DISCHARGE HEDLAMP,WITH(AFS)&WITH(HEADLAMP CLEANER)
8127991D01WASHER, SIDE TURN SIGNAL LAMP
main81279-91D01
8271130620WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-30620
8271160320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60320
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527750040HOSE, HEADLAMP CLEANER, C
main85277-50040
8527753060HOSE, HEADLAMP CLEANER, C
main85277-53060
9007502029
main90075-02029
20 parts on this diagram · 1 diagram in section
