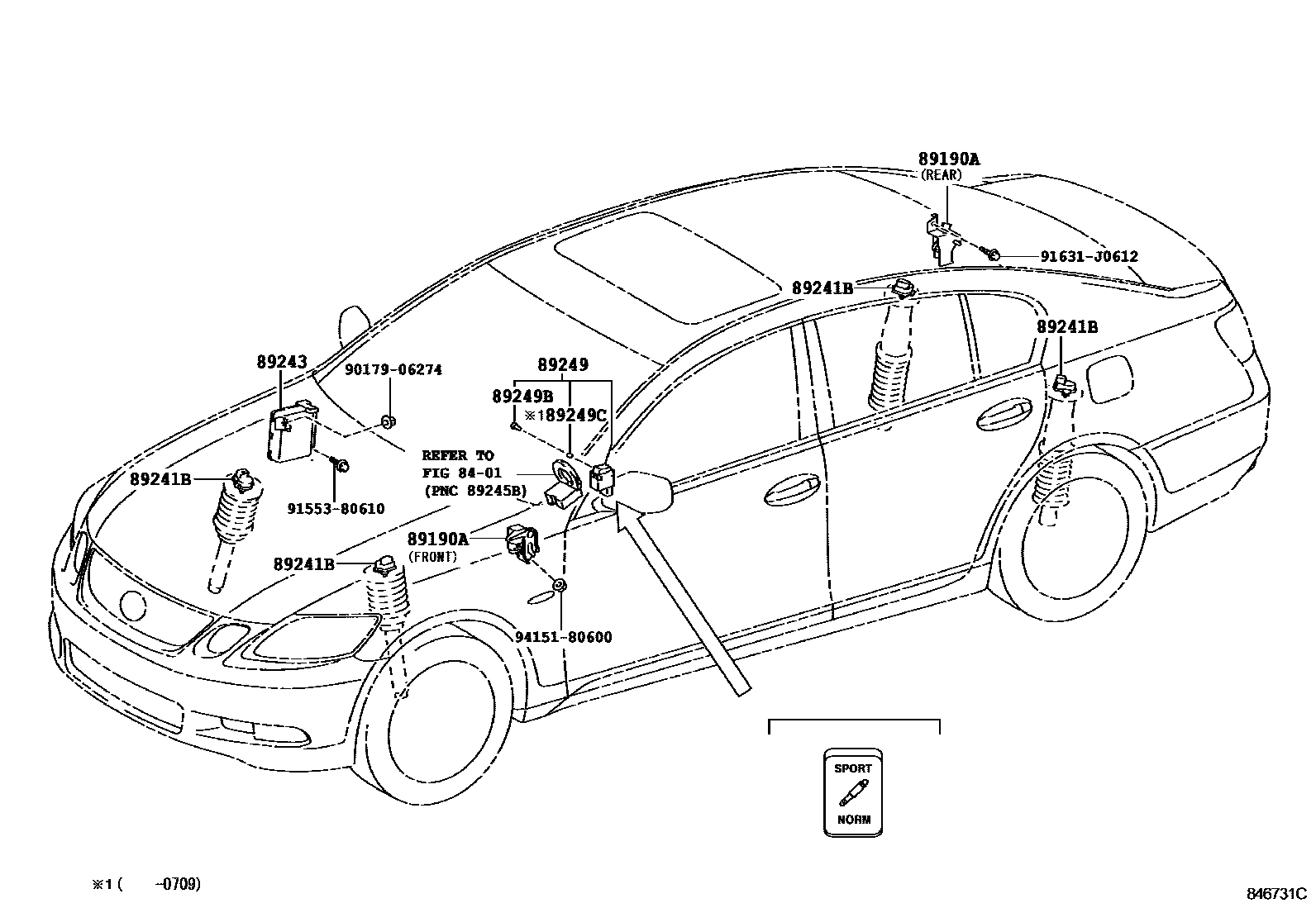

ELECTRONIC MODULATED SUSPENSION

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30020iURS190200709-201108

WITH(AVS),REAR

sub89190-30021

main89190-30020iUZS190200501-200709

REAR

sub89190-30021

main89190-30021iURS190201108-201112

WITH(AVS),REAR

sub89190-30050

main89190-30040iURS190200709-201112

WITH(AVS),FRONT

main89190-30040iUZS190200501-200709

FRONT

89241BACTUATOR, ABSORBER CONTROL

main89241-30040iURS190200709-201104

WITH(AVS)

sub89241-30041

main89241-30040iUZS190200501-200709

sub89241-30041

main89241-30041iURS190201105-201112

WITH(AVS)

89243COMPUTER, ABSORBER CONTROL

main89243-30090iUZS190200501-200607

main89243-30131iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main89243-30132iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main89243-30180iGRS19#200709

WITH(AVS)

89249SWITCH, ABSORBER CONTROL

main89249-30060iUZS190200501-200709

main89249-30070iURS190200709-201112

WITH(AVS)

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10820iUZS190200501-200709

14V 0.7W

main90010-01059iURS190200709

14V0.84W,W/GREEN CAP,WITH(AVS)

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10670iUZS190200501-200709

9017906274

main90179-06274

9155380610

main91553-80610

91631J0612

main91631-J0612

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
