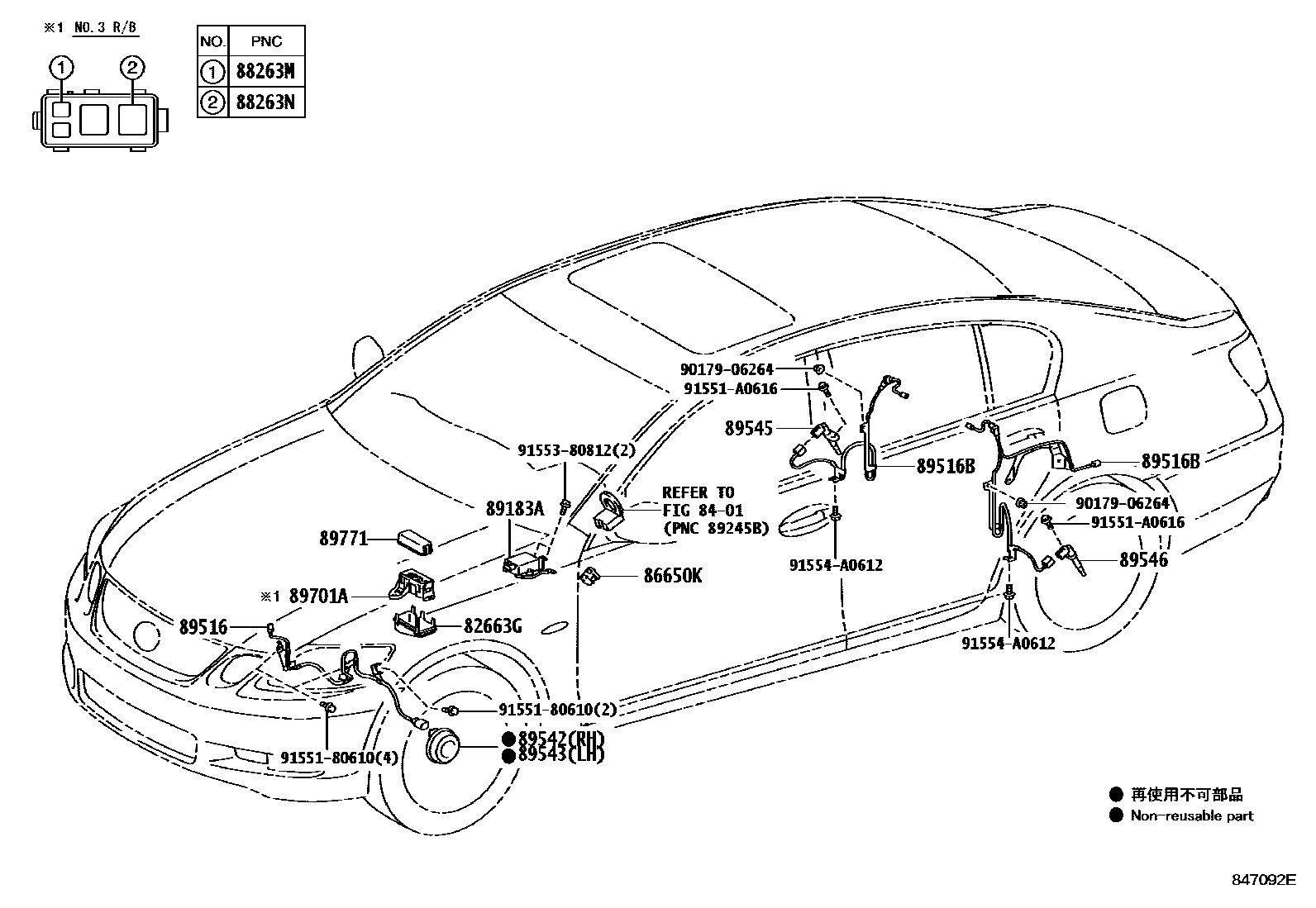

ABS & VSC
82663GCOVER, RELAY BLOCK, LOWER
8401
86650KBUZZER ASSY, SKID CONTROL
88263MRELAY, ABS SOLENOID
88263NRELAY, ABS MOTOR
89516WIRE, SKID CONTROL SENSOR
LH
LH
LH
89516BWIRE, SKID CONTROL SENSOR
RH
LH
RH
LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89701ABLOCK SUB-ASSY, ABS RELAY
89771COVER, ABS RELAY BLOCK, UPPER
9017906264
main90179-06264
9155180610
main91551-80610
91551A0616
main91551-A0616
9155380812
main91553-80812
91554A0612
main91554-A0612
19 parts on this diagram · 6 diagrams in section
