HEADLAMP
5201
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN,TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81110LBULB, DISCHARGE HEADLAMP
45V 35W
45V 35W
42V 35W
81116DRIM, HEAD LAMP, RH
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81125ACORD, HEADLAMP, RH
KOREA SPEC
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
KOREA SPEC&ART WORKS&HEADLAMP-RD4 LO:DISCHARGE
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81156RIM, HEADLAMP, LH
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81165CORD, HEADLAMP, LH
KOREA SPEC
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81175UNIT ASSY, HEADLAMP, LH
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
KOREA SPEC&ART WORKS&HEADLAMP-RD4 LO:DISCHARGE
TAIWAN SPEC&HEADLAMP-RD4 LO:DISCHARGE WITH(AFS)&WITH(HEAD LAMP CLEANER)
81189COVER, HEADLAMP
81193APROTECTOR, HEADLAMP, RH
81194APROTECTOR, HEADLAMP, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81710FBULB, FRONT SIDE MAKER LAMP
8505
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9007502059
main90075-02059
9010506298
main90105-06298
9010906293
main90109-06293

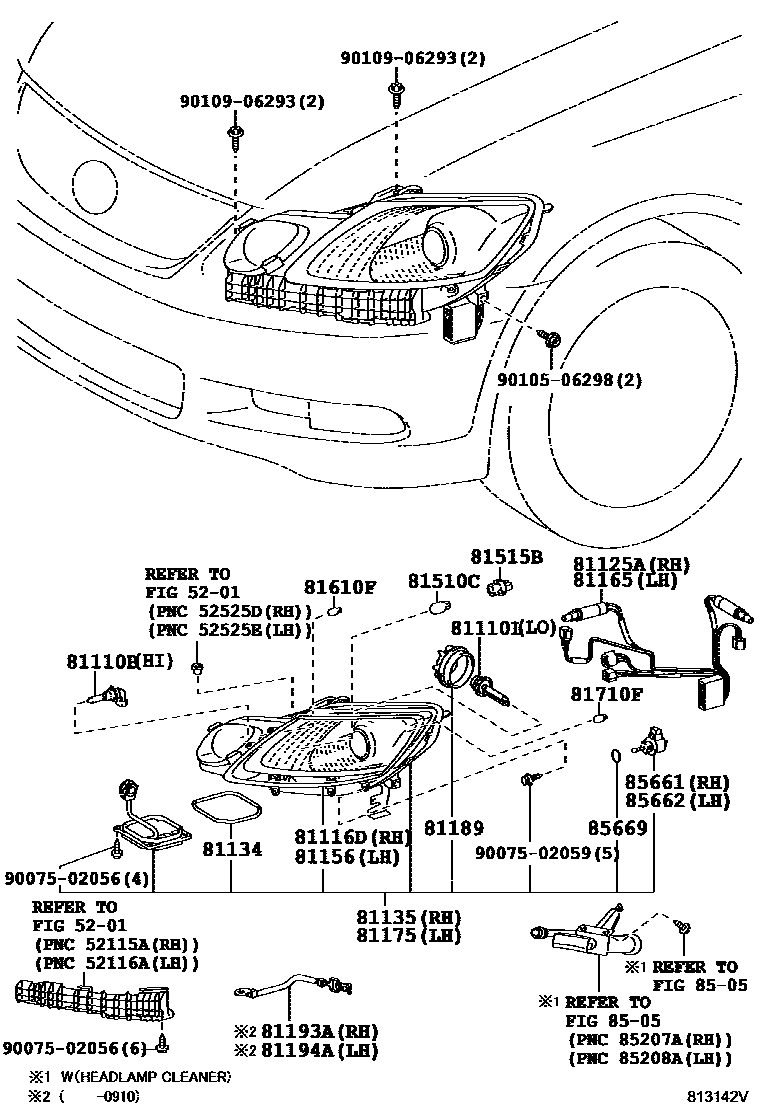

25 parts on this diagram · 3 diagrams in section
