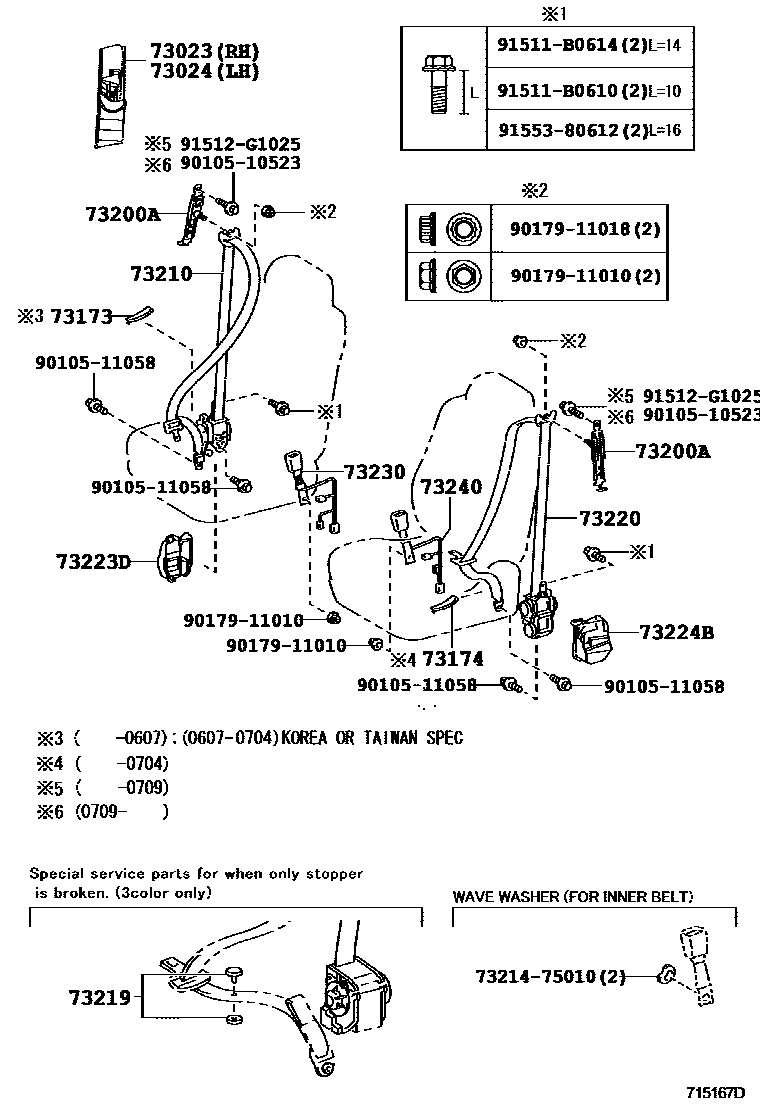

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
73173COVER, FRONT SEAT BELT HOLE, RH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
73174COVER, FRONT SEAT BELT HOLE, LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
KOREA SPEC,IVORY,TRIM0#,MODEL NO. 7Q2580-P
TAIWAN SPEC,IVORY,TRIM0#,MODEL NO. 7Q2580-P
TAIWAN SPEC,GRAY,TRIM1#,MODEL NO. 7Q2580-P
KOREA SPEC,GRAY,TRIM1#,MODEL NO. 7Q2580-P
TAIWAN SPEC,BLACK,TRIM2#,MODEL NO. 7Q2580-P
KOREA SPEC,BLACK,TRIM2#,MODEL NO. 7Q2580-P
73223COVER, SEAT BELT RETRACTOR
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010510523
9010511058
9017911010
9017911018
91511B0610
91511B0614
91512G1025
9155380612
22 parts on this diagram · 2 diagrams in section
