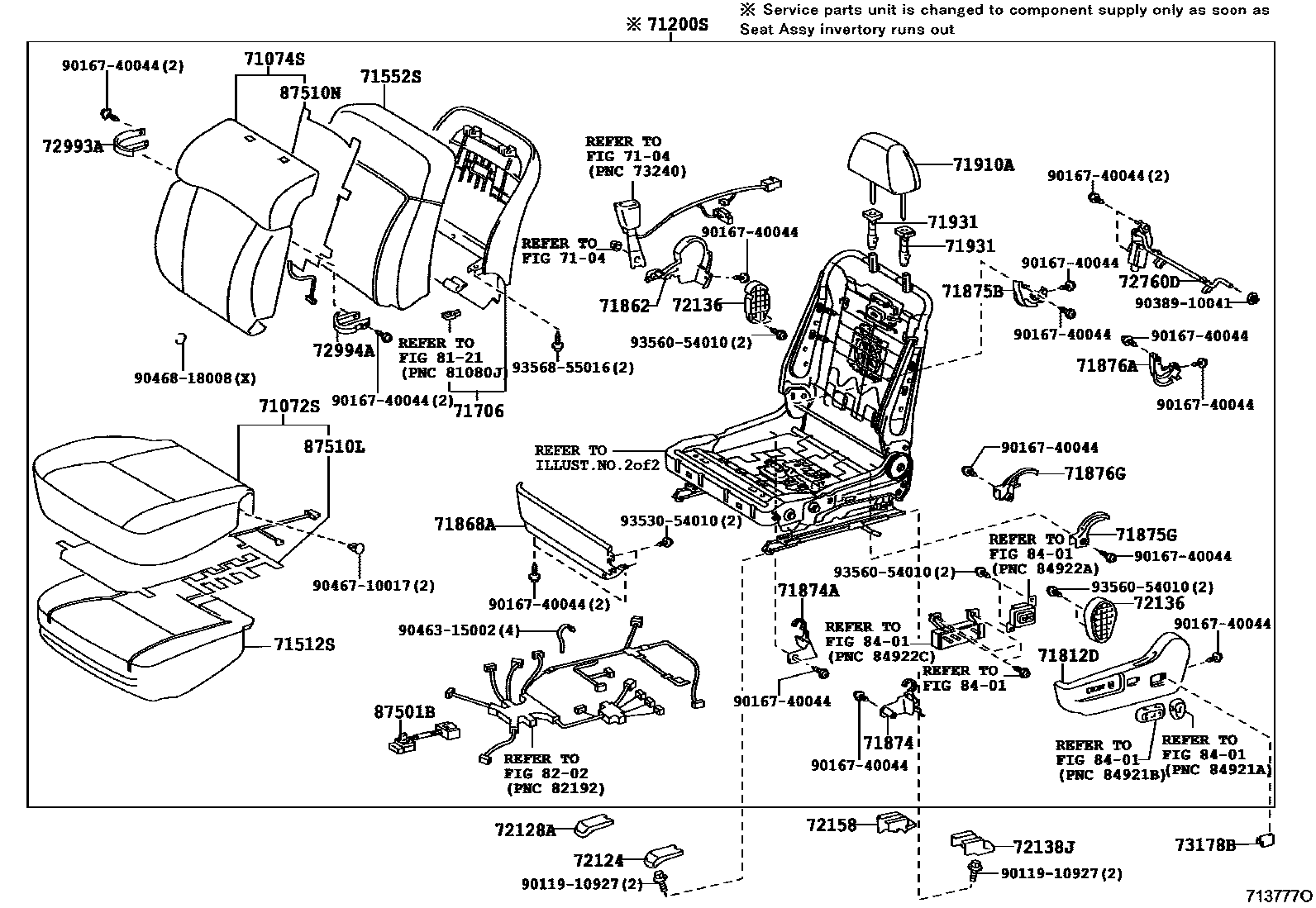

FRONT SEAT & SEAT TRACK
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71200SSEAT ASSY, FRONT LH
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)&W(BUTTON),TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC,IVORY,TRIM0#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC&SEAT COVER MATERIAL-FABRIC,IVORY,TRIM0#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&SEAT COVER MATERIAL-FABRIC,IVORY,TRIM0#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC&SEAT COVER MATERIAL-FABRIC,LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC,LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&SEAT COVER MATERIAL-FABRIC,LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),KOREA SPEC&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,PASSENGER
sub71930-52030
W(LOCK)&W(BUTTON),TAIWAN SPEC,BLACK,TRIM2#,PASSENGER
sub71930-52030
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#,PASSENGER
sub71931-42020
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#,PASSENGER
sub71931-42020
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#,PASSENGER
sub71931-42020
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,PASSENGER
sub71931-42020
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72136SPACER, SEAT TRACK, LOWER NO.1
NO.1
NO.1
RH SEAT, NO.2
LH SEAT, NO.2
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
72158COVER, SEAT TRACK BRACKET, INNER LH
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
72993COVER, FRONT SEATBACK
BLACK,TRIM2#
72993ACOVER, FRONT SEATBACK
BLACK,TRIM2#
72994COVER, FRONT SEATBACK
BLACK,TRIM2#
72994ACOVER, FRONT SEATBACK
BLACK,TRIM2#
73178BCAP, SEAT BELT ANCHOR COVER
IVORY,TRIM0#,RH
GRAY,TRIM1#,RH
BLACK,TRIM2#,RH
IVORY,TRIM0#,RH
LT.GRAY,TRIM1#,RH
BLACK,TRIM2#,RH
IVORY,TRIM0#,LH
LT.GRAY,TRIM1#,LH
BLACK,TRIM2#,LH
8121
8202
8401
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
sub87501-60060
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9011910927
main90119-10927
9016740044
main90167-40044
9038910041
main90389-10041
9046315002
main90463-15002
9046710017
main90467-10017
9046818008
main90468-18008
9353054010
main93530-54010
9356054010
main93560-54010
9356855016
main93568-55016
45 parts on this diagram · 8 diagrams in section
