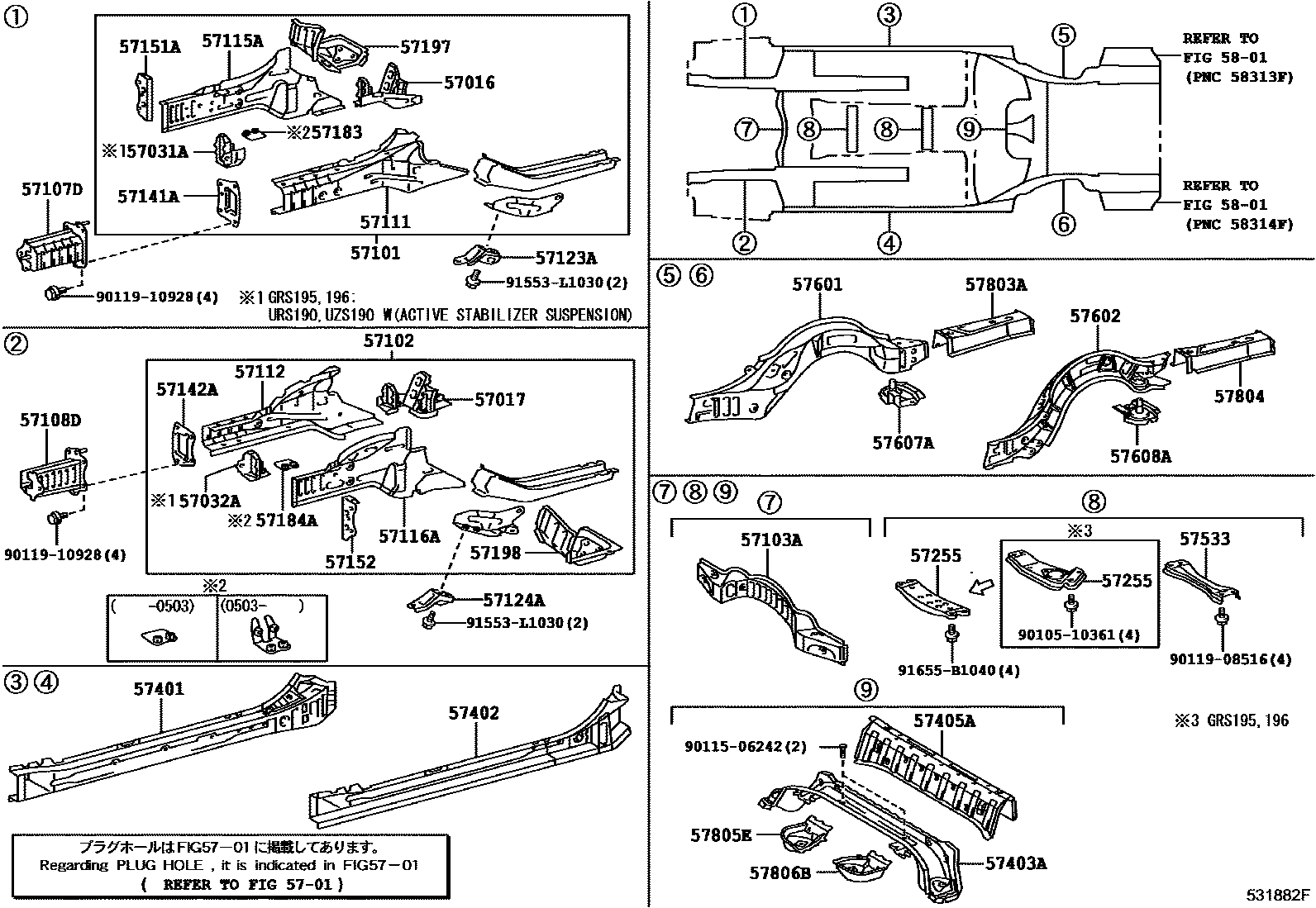

FLOOR SIDE MEMBER

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGRS191,URS190200501-200709

main57016-30051iGRS195200501-200709

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGRS190200501-200709

main57017-30051iGRS196200501-200709

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-30010iGRS195200501-200709

main57031-30010iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-30010iURS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main57032-30010iGRS195200501-200709

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30162iGRS190,UZS190200501-200503

sub57101-30163

main57101-30163iGRS191,URS190200503-200709

main57101-30173iGRS195200501-200503

sub57101-30174

main57101-30174iGRS196200503-200709

main57101-30180iURS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30141iGRS190,UZS190200501-200503

sub57102-30143

main57102-30142iGRS190,UZS190200503-200504

sub57102-30143

main57102-30143iGRS191,UZS190200505-200709

main57102-30152iGRS195200501-200503

sub57102-30153

main57102-30153iGRS195200503-200504

sub57102-30154

main57102-30154iGRS195200505-200709

main57102-30160iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30030iGRS19#200501-201112

sub57103-30031

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30061iGRS191200709-201112

TAIWAN SPEC

main57107-30080iGRS19#,URS190200501-201112

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGRS191200709

TAIWAN SPEC

sub57108-30081

main57108-30100iGRS19#200501-200709

sub57108-30101

57111MEMBER, FRONT SIDE, RH

main57111-30082iGRS190200501-200709

main57111-30092iGRS196200501-200709

main57111-30092iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

57112MEMBER, FRONT SIDE, LH

main57112-30081iGRS190,UZS190200501-200505

sub57112-30082

main57112-30082iGRS190200505-200709

main57112-30101iGRS195200501-200505

sub57112-30102

main57112-30102iGRS196200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main57112-30102iGRS195200505-200709

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRS19#200501-200709

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRS19#200501-200709

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGRS190200501-200709

main57305-30020iGRS195200501-200709

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGRS190200501-200709

main57306-30020iGRS195200501-200709

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRS19#200501-200709

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRS19#200501-200709

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRS19#200501-200709

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRS19#200501-200709

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30020iGRS19#,UZS190200501-200503

main57183-30030iGRS191,196,UZS190200503-200709

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57183-30020iGRS19#,UZS190200501-200503

main57184-30020iGRS191,196,UZS190200503-200709

57197BOX, TORQUE, FRONT RH

main57197-30040iGRS19#200501-200709

57198BOX, TORQUE, FRONT LH

main57198-30041iGRS19#,URS190200501-200709

57255MEMBER, ENGINE REAR MOUNTING

main57209-30030iGRS195200501-200709

main57255-30080iURS190200709

main57255-30130iGRS191,UZS190200501-200709

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30101iGRS19#,URS190200501-200709

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30091iGRS19#,UZS190200501-200709

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iGRS19#,URS190200501-200709

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30041iGRS19#,UZS190200501-200505

sub57405-30050

main57405-30050iGRS19#200505-200709

57533BRACE, FRONT FLOOR, CENTER

main57533-30050iGRS190200501-200709

main57533-30060iGRS196200501-201001

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30917iGRS19#200501-200709

sub57601-30922

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30928iGRS19#200501-200709

sub57602-30934

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-30070iGRS19#,UZS190200501-200506

sub57607-53020

main57607-53020iGRS19#200507-200709

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-30080iGRS19#,UZS190200501-200506

sub57608-53030

main57608-53030iGRS19#200507-200709

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30040iGRS19#200501-200709

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30050iGRS19#200501-200709

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iGRS19#200501-200709

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGRS19#200501-200709

5801

9010510361

main90105-10361

9011506242

main90115-06242

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

45 parts on this diagram · 1 diagram in section
