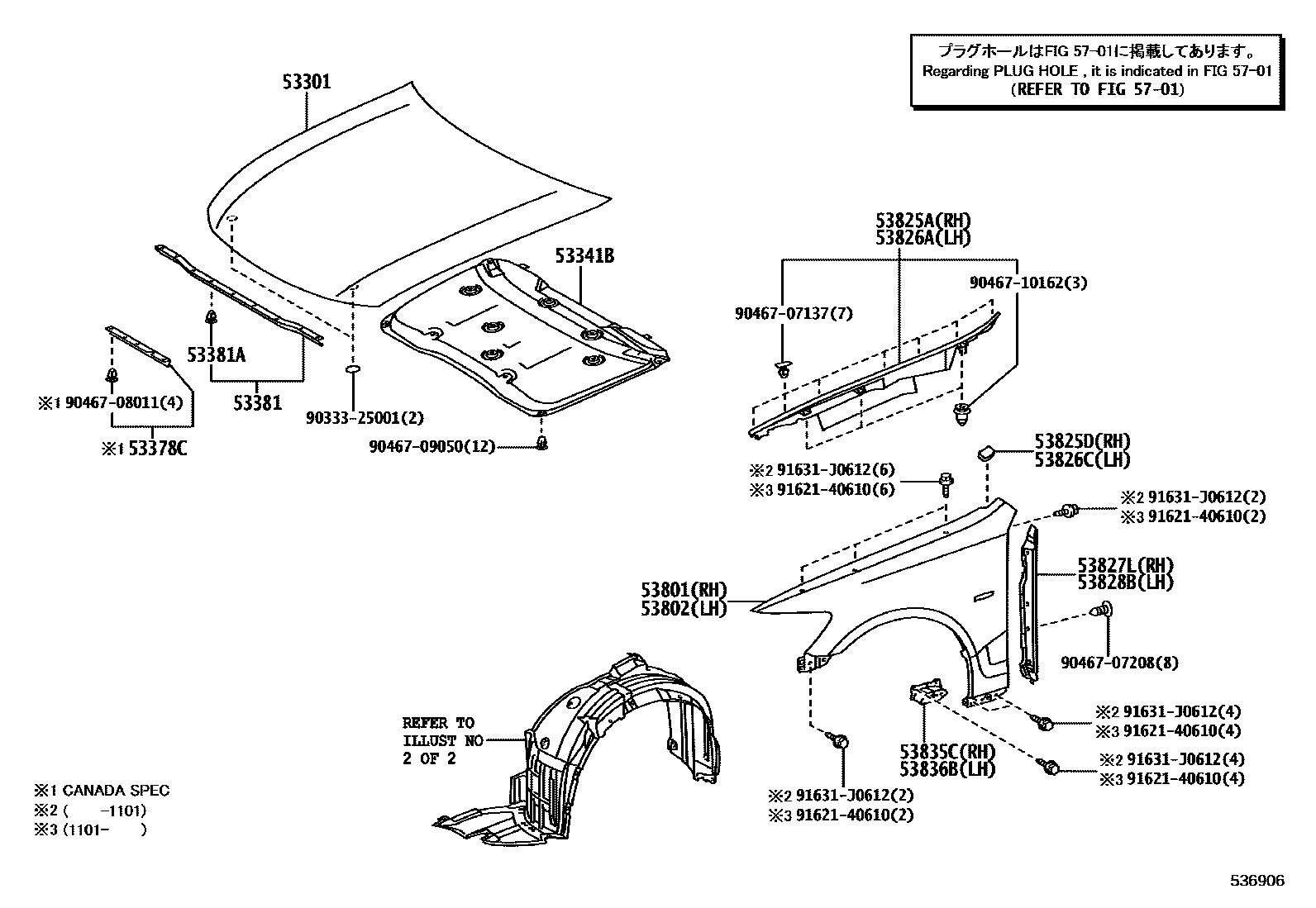

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-30450iGRS19#,URS190201007-201112

main53301-30460iGRS19#,UZS190200501-201007

sub53301-30450

53341BINSULATOR, HOOD

main53341-30270iGRS19#200501-200709

53378CSEAL, HOOD AIR INTAKE DUCT

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30230iGRS19#,URS190200501-200709

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGRS19#,URS190200501-200709

53801FENDER SUB-ASSY, FRONT RH

main53801-30A00iGRS19#,URS190201007-201012

sub53801-30A01

main53801-30A01iGRS19#,URS190201101-201112

main53801-30A30iGRS19#,UZS190200501-201007

sub53801-30A00

53802FENDER SUB-ASSY, FRONT LH

main53802-30A10iGRS19#,UZS190200501-201007

sub53802-3F210

main53802-3F210iGRS19#,URS190201007-201012

sub53802-3F211

main53802-3F211iGRS19#,URS190201101-201112

53825APROTECTOR, FRONT FENDER, UPPER RH

main53805-30100iGRS19#200501-200709

53825DPATCH, FRONT FENDER, UPPER RH

main53825-30170iGRS191,196,UZS190200501-200709

53826APROTECTOR, FRONT FENDER, UPPER LH

main53806-30100iGRS19#200501-200709

53826CPATCH, FRONT FENDER, UPPER LH

main53825-30170iGRS19#200501-200709

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30050iGRS19#200501-200709

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30060iGRS19#200501-200709

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-30110iGRS19#,UZS190200501-200709

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-30060iGRS19#200501-200709

5701

9033325001

main90333-25001

9046707137

main90467-07137

9046707208

main90467-07208

9046708011

main90467-08011

9046709050

main90467-09050

9046710162

main90467-10162

9162140610

main91621-40610

91631J0612

main91631-J0612

24 parts on this diagram · 2 diagrams in section
