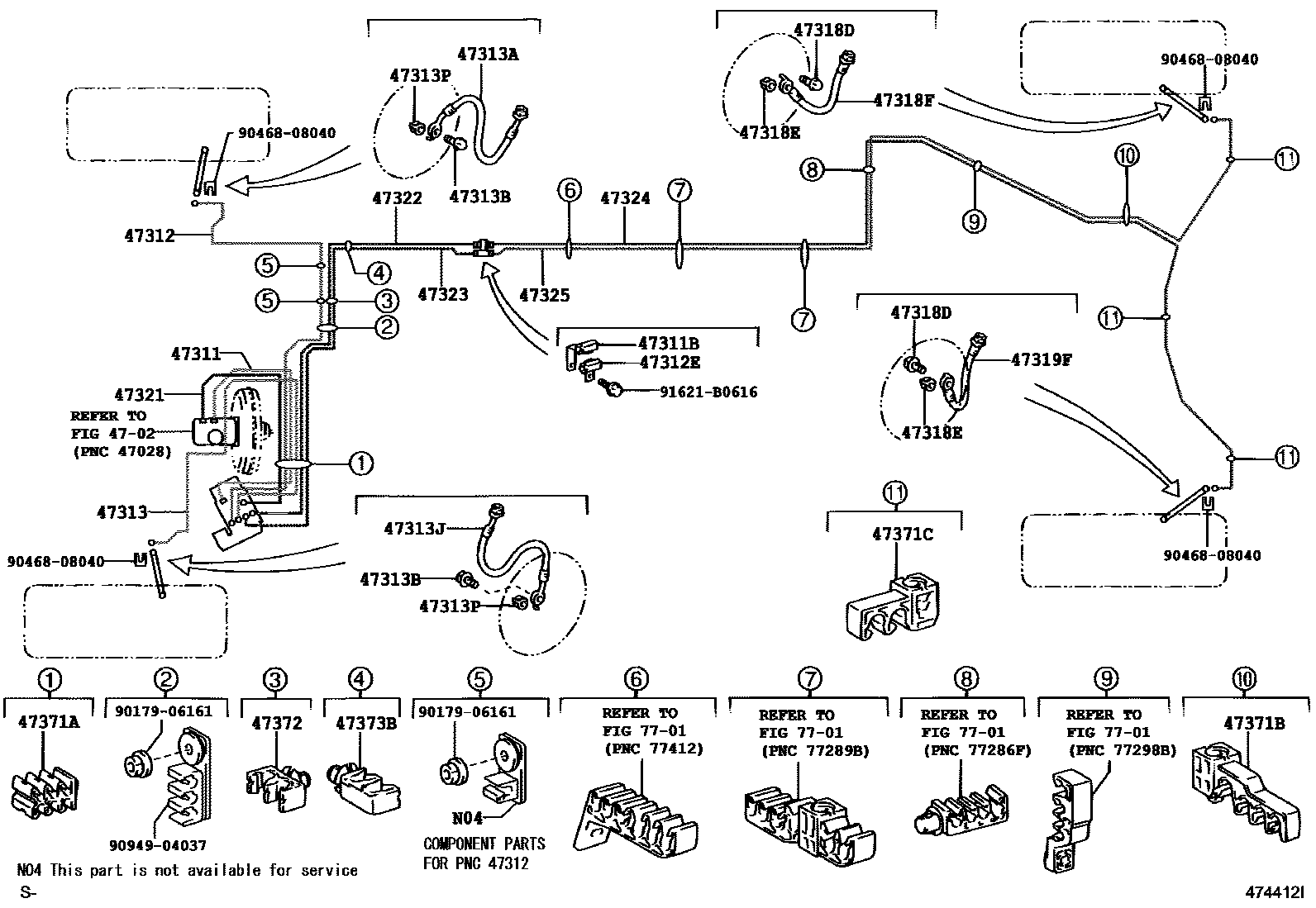

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-30690iGRS19#200501-200709

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iGRS191,196,UZS190200501-200709

47312TUBE, FRONT BRAKE, NO.2

main47312-30591iGRS191200501-200709

main47312-30601iGRS196200501-200709

main47312-30611iUZS190200501-200709

main47312-30700iURS190200709

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10144iGRS19#,UZS190200501-200709

main90412-10278iGRS19#,URS190200709

47313TUBE, FRONT BRAKE, NO.3

main47313-30540iGRS190200501-200709

main47313-30550iGRS196200501-200709

main47313-30561iUZS190200501-200709

main47313-30660iURS190200709

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D89iGRS190200501-200607

main90947-02E02iGRS195200501-200607

main90947-02E06iGRS191,UZS190200501-200701

sub90947-02F66

main90947-02E53iGRS196200607-200709

main90947-02F66iGRS191,UZS190200701-200911

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGRS19#200501-200709

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02D89iGRS190200501-200607

main90947-02E03iGRS195200501-200607

main90947-02E06iGRS191,UZS190200501-200701

sub90947-02F66

main90947-02E54iGRS196200607-200709

main90947-02F66iGRS191,UZS190200701-200911

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGRS191,196,UZS190200501-200709

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGRS19#200501-200709

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGRS19#200501-200709

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D88iGRS19#,UZS190200501-200701

sub90947-02F67

main90947-02F67iGRS19#,UZS190200701-200911

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D88iGRS19#,UZS190200501-200701

sub90947-02F67

main90947-02F67iGRS19#,UZS190200701-200911

47321TUBE, REAR BRAKE, NO.1

main47321-30400iGRS19#200501-200709

47322TUBE, REAR BRAKE, NO.2

main47322-30351iGRS19#200501-200709

main47322-30361iUZS190200501-200709

sub47322-30390

main47322-30410iURS190200709

47323TUBE, REAR BRAKE, NO.3

main47323-30311iGRS19#200501-200709

main47323-30321iUZS190200501-200709

main47323-30370iURS190200709

47324TUBE, REAR BRAKE, NO.4

main47324-30310iGRS19#200501-200709

47325TUBE, REAR BRAKE, NO.5

main47325-30090iGRS19#200501-200709

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C51iGRS19#200501-200709

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D09iGRS19#200501-200709

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D11iGRS19#200501-200709

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D12iGRS19#200501-200709

main90949-01D62iURS190200709

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D13iGRS19#200501-200709

7701

9017906161

main90179-06161

9046808040

main90468-08040

9094904037

main90949-04037

91621B0616

main91621-B0616

29 parts on this diagram · 5 diagrams in section
