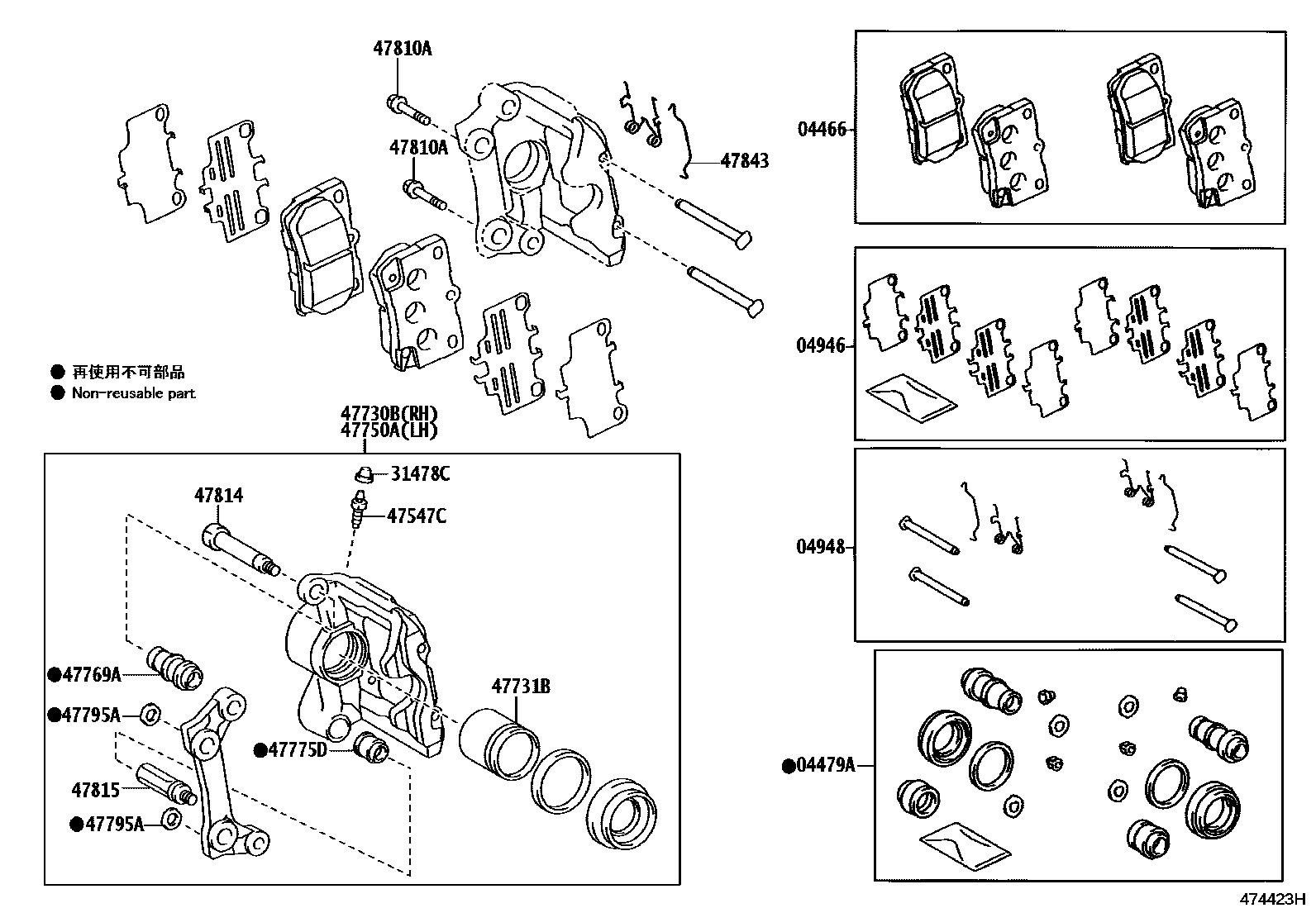

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRS191,196,UZS190200501-201112

MARK NBK PN529H

main04466-30210iGRS19#200501-200607

MARK AK PA561H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iUZS190200501-200511

sub04479-30530

main04479-22170iGRS19#,URS190201104

main04479-30340iGRS19#200501-200511

sub04479-30550

main04479-30450iGRS19#200511-200607

sub04479-30510

main04479-61020iGRS191,196,UZS190200606-200707

sub04479-61040

main04479-61040iGRS19#,UZS190200707-201104

sub04479-22170

main04479-68030iUZS190200511-200606

sub04479-61020

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGRS191,196,UZS190200501-200709

main04946-30110iGRS19#200501-200607

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGRS190,195200501-200705

sub04948-30210

main04948-30100iGRS19#200501-200511

sub04948-22090

main04948-30210iGRS19#,URS190200705-200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRS19#,URS190200501-200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS190,195,UZS190200501-200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iUZS190200501-200511

sub47830-22221

main47830-22221iGRS191,196,UZS190200511-200709

main47830-30320iGRS19#200501-200511

sub47830-30321

main47830-30321iGRS19#200511-200607

47731BPISTON, REAR DISC BRAKE

main47831-22220iUZS190200501-200709

main47831-30300iGRS19#200501-200607

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iUZS190200501-200511

sub47850-22221

main47850-22221iGRS191,196,UZS190200511-200709

main47850-30320iGRS19#200501-200511

sub47850-30321

main47850-30321iGRS19#200511-200607

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRS19#,URS190200501-200709

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iGRS19#,UZS190200501-200511

main47875-22221iGRS19#,UZS190200511-200707

sub47875-30340

main47875-30340iGRS19#,UZS190200707-201104

sub47875-30341

main47875-30341iGRS19#,URS190201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS19#,UZS190200501-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS19#,UZS190200501-201112

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS19#,URS190200501-200709

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300iGRS19#,UZS190200501-200511

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGRS19#,UZS190200501-200705

16 parts on this diagram · 2 diagrams in section
