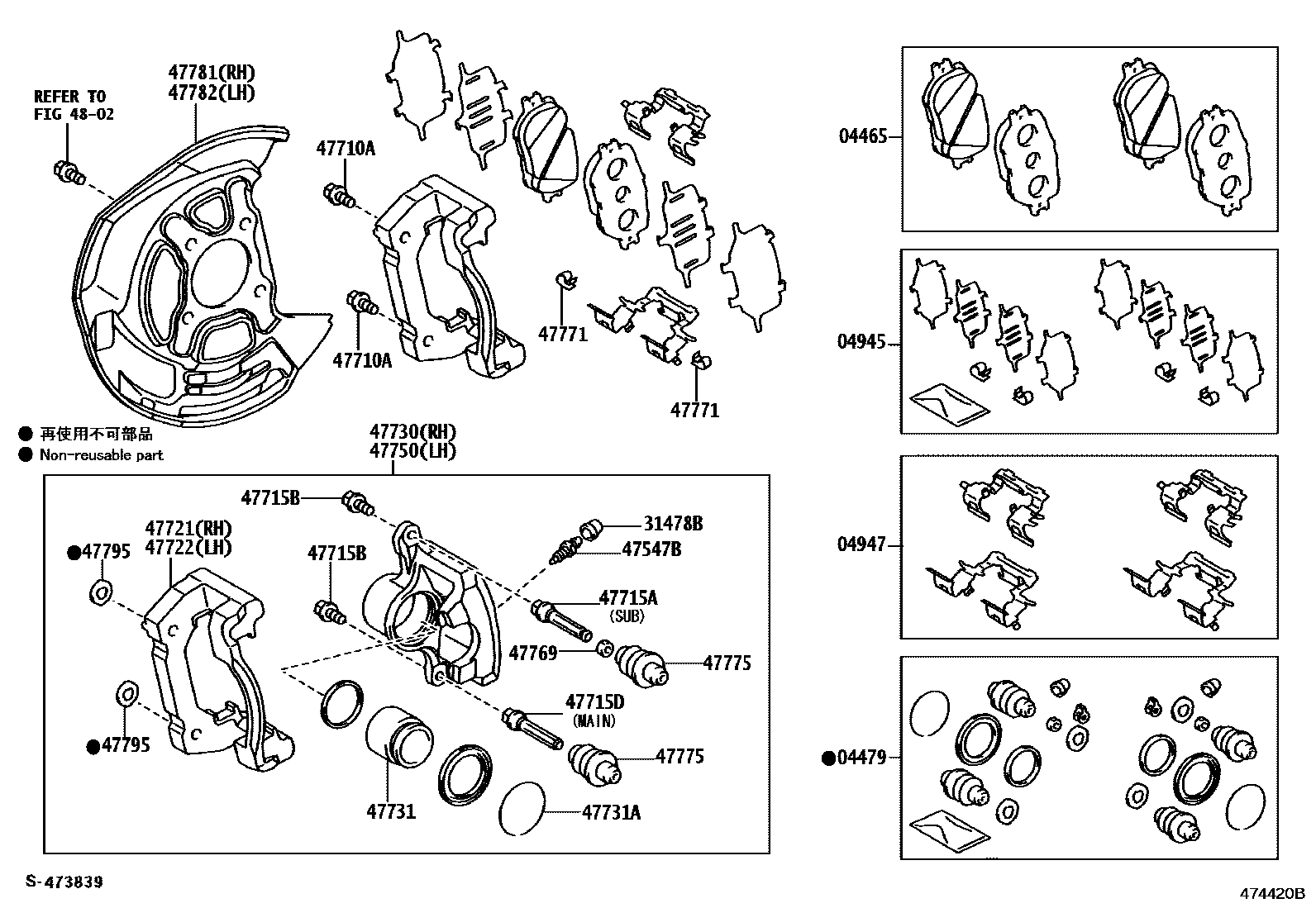

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30340iGRS19#200501-200607

MARK NBK D6893H

main04465-30400iGRS19#,URS190200809-201101

MARK NBK D6893H

sub04465-30450

main04465-30410iGRS191,196,UZS190200501-200809

MARK TEXTAR T4146

sub04465-30500

main04465-30450iGRS19#,URS190201101-201112

MARK NBK D6893H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGRS191,196,UZS190200501-200709

main04478-30110iGRS19#200501-200607

sub04478-30260

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22151iGRS191,196,UZS190200501-200808

sub04945-22152

main04945-22152iGRS19#,URS190200808-201101

sub04945-30350

main04945-30180iGRS19#200501-200607

main04945-30330iGRS19#,URS190201101

sub04945-30350

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGRS19#,UZS190200608-200709

main04947-30150iGRS19#200501-200607

main04947-50090iUZS190200501-200607

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGRS191,196,UZS190200501-200709

main31478-30010iGRS19#200501-200607

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGRS19#200501-200607

main47547-50010iGRS191,196,UZS190200501-200709

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-K1240iGRS19#,UZS190200501-201112

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGRS19#200501-200607

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGRS19#200501-200607

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33050iGRS19#200501-200607

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30530iGRS19#200501-200607

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30530iGRS19#200501-200607

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGRS191,196,UZS190200501-200709

main47730-30530iGRS19#200501-200607

47731PISTON, FRONT DISC BRAKE

main47731-33070iGRS19#200501-200607

sub47731-30570

main47731-50070iGRS191,196,UZS190200501-200709

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iGRS19#200501-200607

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGRS191,196,UZS190200501-200709

main47750-30530iGRS19#200501-200607

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGRS19#200501-200607

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iGRS19#200501-200607

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGRS19#200501-200607

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iGRS191,URS190200501-201112

main47781-30220iGRS190200501-200607

main47781-30230iGRS195200501-200607

main47781-30240iGRS196200607-201112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iGRS191,URS190200501-201112

main47782-30220iGRS190200501-200607

main47782-30230iGRS195200501-200607

main47782-30240iGRS196200607-201112

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iGRS19#200501-200607

4802

23 parts on this diagram · 2 diagrams in section
