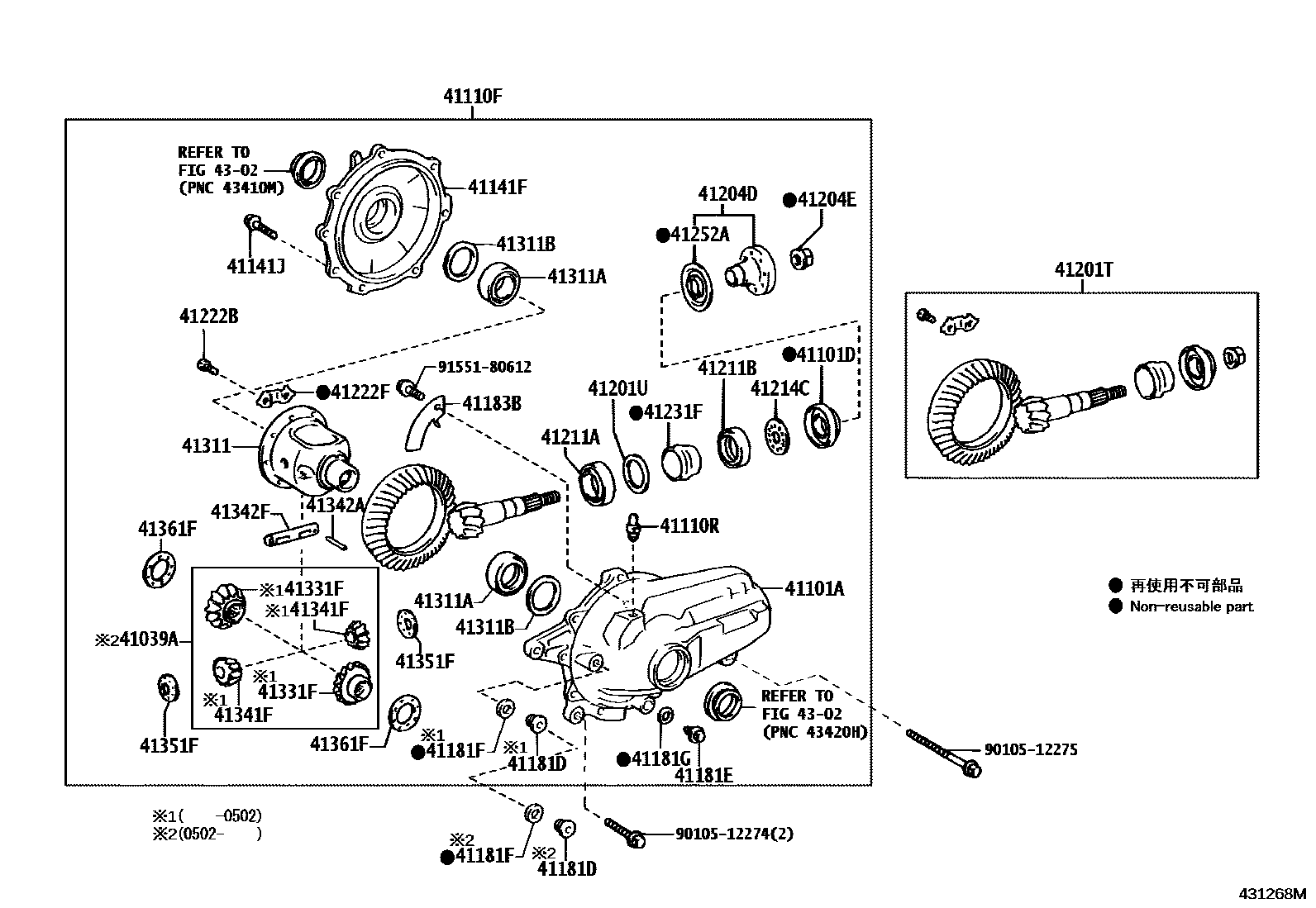

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
sub90311-43015
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:10=4.100
*FGR=49:13=3.769
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX38-30
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
sub90430-24017
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=41:10=4.100
*FGR=49:13=3.769
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
T=2.36
T=2.38
T=2.40
T=2.42
T=2.44
T=2.46
T=2.48
T=2.50
T=2.52
T=2.54
T=2.56
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.22
T=2.24
T=2.26
T=2.28
T=2.30
T=2.32
T=2.34
T=2.36
T=2.38
T=2.40
T=2.42
T=2.44
T=2.46
T=2.48
T=2.50
T=2.52
T=2.54
T=2.56
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
T=2.82
T=2.84
T=2.86
T=2.88
T=2.90
T=2.92
T=2.94
T=2.96
T=2.98
T=3.00
T=3.02
T=3.04
T=3.06
T=3.08
T=3.10
T=3.12
T=3.14
T=3.16
T=3.18
T=3.20
T=3.22
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302
9010512274
main90105-12274
9010512275
main90105-12275
9155180612
main91551-80612
36 parts on this diagram · 1 diagram in section
