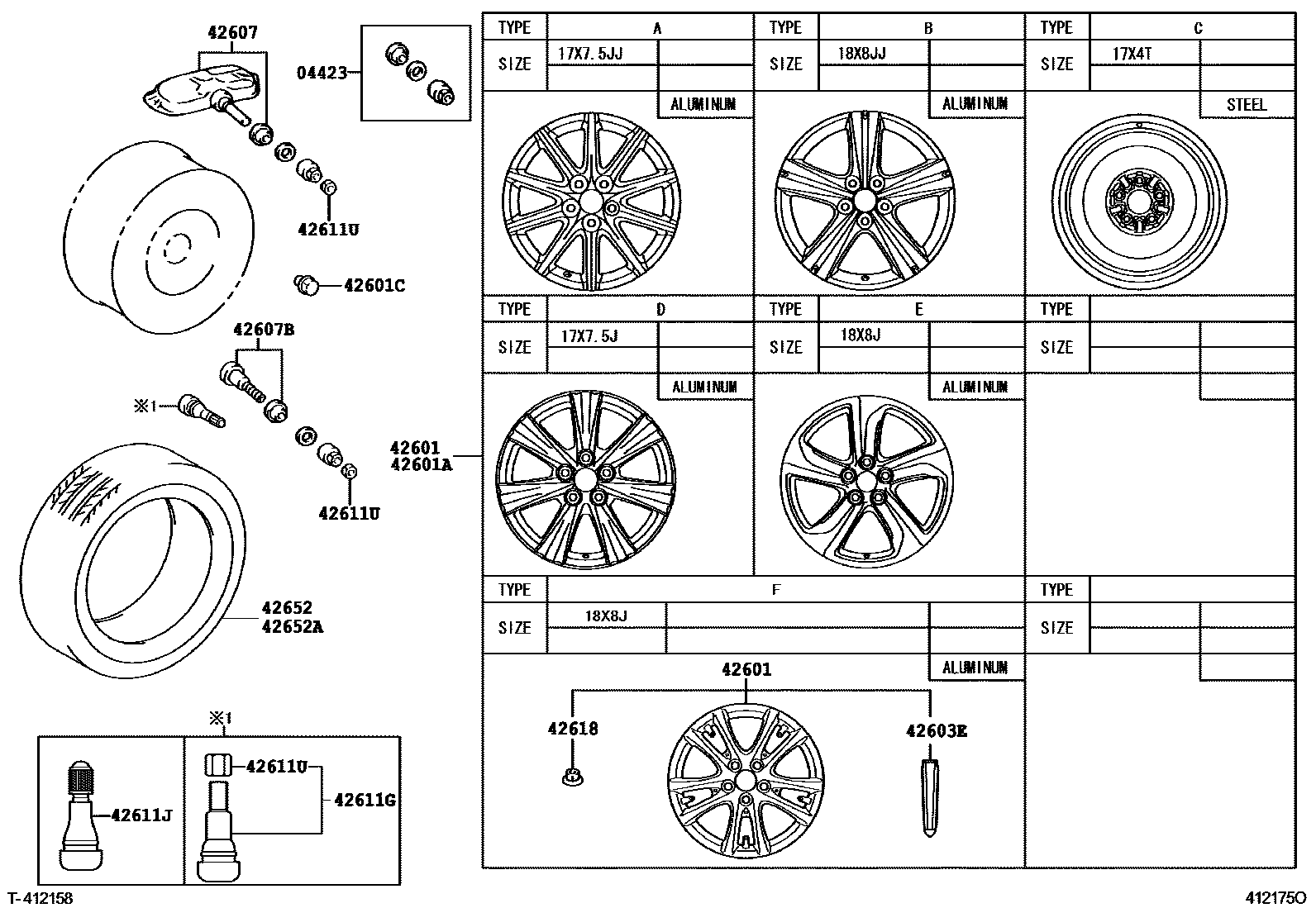

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030i200607-201112

sub04423-33060

main04423-33030i200510-200607

KOREA SPEC

sub04423-33060

main04423-35020i200501-200604

main04423-42010i200604-200607

42601WHEEL, DISC

main42601-30110i201007-201109

18X8J, *MGB,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS,TYPE F:REFER ILLUST.

sub42601-30111

main42611-30A40i200501-200607

17X7.5JJ, #,TYPE A:REFER ILLUST.

sub42611-30A41

main42611-30A41i200607-200709

17X7.5JJ, #,TYPE A:REFER ILLUST.

sub42611-30C70

main42611-30A50i200501-200510

18X8JJ, #,TYPE B:REFER ILLUST.

sub42611-30B10

main42611-30B10i200607-200709

18X8JJ, #,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ,TYPE B:REFER ILLUST.

sub42611-30B20

main42611-30B10i200607-200709

18X8JJ, #,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ,TYPE B:REFER ILLUST.

sub42611-30B20

main42611-30B10i200607-200709

18X8JJ, #,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ,TYPE B:REFER ILLUST.

sub42611-30B20

main42611-30B10i200607-200709

18X8JJ, #,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ&SPARE TIRE-WITHOUT,TYPE B:REFER ILLUST.

sub42611-30B20

main42611-30B10i200510-200607

18X8JJ, #,KOREA SPEC,TYPE B:REFER ILLUST.

sub42611-30B20

main42611-30B10i200510-200709

18X8JJ, #,TYPE B:REFER ILLUST.

sub42611-30B20

main4261A-30010i200709-201002

17X7.5J, #,TYPE D:REFER ILLUST.

sub4261A-30100

main4261A-30020i200709-201002

17X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/50R17 RUN FLAT ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.

sub4261A-30110

main4261A-30020i200709-201002

17X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/50R17 RUN FLAT ALL SEASON TIRE 7.5J&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.

sub4261A-30110

main4261A-30020i200709-201002

17X7.5J, #,CANADA SPEC,TYPE D:REFER ILLUST.

sub4261A-30110

main4261A-30030i200709-201112

18X8J, #,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30030i200709-201112

18X8J, #,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30030i200709-201112

18X8J, #,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30030i200709-201112

18X8J, #,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30030i200709-201112

18X8J, #,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J&SPARE TIRE-WITHOUT,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30030i200709-201112

18X8J, #,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30040i200709-201112

18X8J, #,CANADA SPEC,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30040i200709-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30040i200709-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J,TYPEE:REFER ILLUST.

sub4261A-30300

main4261A-30040i200709-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J&SPARETIRE-WITHOUT,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30040i200709-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT SUMMER TIRE 8J&SPARE TIRE-WITHOUT,TYPE E:REFER ILLUST.

sub4261A-30300

main4261A-30100i201003-201112

17X7.5J, #,TYPE D:REFER ILLUST.

sub4261A-30110

main4261A-30110i201003-201112

17X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/50R17 RUN FLAT ALL SEASON TIRE 7.5J&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.

sub4261A-30111

main4261A-30110i201003-201112

17X7.5J, #,CANADA SPEC,TYPE D:REFER ILLUST.

sub4261A-30111

main4261A-30110i201003-201112

17X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/50R17 RUN FLAT ALL SEASON TIRE 7.5J,TYPE D:REFER ILLUST.

sub4261A-30111

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60i200501-200908

17X4T,TYPE C:REFER ILLUST.

main42611-53320i200909-201112

17X4T,TYPE C:REFER ILLUST.

sub42611-53321

42601CNUT, HUB (FOR AXLE)

main90942-01033i200501-201112

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540i200501-200709

*ALU,TYPE A:REFER ILLUST.

main42603-30590i200501-200709

*CHR,TYPE A:REFER ILLUST.

main42603-30590i200607-200709

*CHR,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ,TYPE A:REFER ILLUST.

main42603-30590i200607-200709

*CHR,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ,TYPE A:REFER ILLUST.

42603EGARNISH SUB-ASSY, WHEEL HUB

main4260B-30050i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30030i200501-200607

sub42607-33021

main42607-33021i200607-201112

sub42607-33022

42607BVALVE SUB-ASSY, TIRE PRESSURE BALANCER

main42607-35020i200501-201001

KOREA SPEC

sub90942-05041

main42607-35020i200607-200709

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub90942-05041

main42607-35020i200709-201001

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

sub90942-05041

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

main90942-05028i201001-201112

KOREA SPEC

main90942-05028i201001-201112

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200501-201112

42611UCAP, TIRE VALVE

main90942-05029i200709-201112

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main90942-05029i200501-201112

KOREA SPEC

main90942-05029i200607-200709

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

main90942-05029i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

main90942-05037i200501-201112

42618RETAINER, WHEEL CAP

main42618-24010i201007-201109

TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

42652TIRE

main42652-24333i200607-200709

245/40ZR18,*B/S,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISC WHEEL-245/40R18 RUN FLAT SUMMER TIRE 8JJ&SPARE TIRE-WITHOUT

sub42652-24334

main42652-24341i200607-200708

245/40ZR18,*D/L,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISC WHEEL-245/40R18 RUN FLAT SUMMER TIRE 8JJ&SPARE TIRE-WITHOUT

sub42652-24343

main42652-24390i200501-200608

P245/40R18,*D/L,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ

sub42652-24391

main42652-24390i200501-200608

P245/40R18,*D/L,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ&SPARE TIRE-WITHOUT

sub42652-24391

main42652-24391i200609-200709

P245/40R18,*D/L,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ&SPARE TIRE-WITHOUT

sub42652-24392

main42652-24391i200609-200709

P245/40R18,*D/L,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ

sub42652-24392

main42652-24400i200501-200709

P245/40R18,*B/S,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ&SPARE TIRE-WITHOUT

sub42652-24401

main42652-24400i200501-200709

P245/40R18,*B/S,TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8JJ

sub42652-24401

main42652-30810i200501-200708

225/50R17,*D/L

sub42652-30811

main42652-30811i200709-201012

225/50R17,*D/L,KOREA SPEC

sub42652-30812

main42652-30812i201101-201112

225/50R17,*D/L,KOREA SPEC

main42652-30840i200501-200708

245/40R18,*D/L

sub42652-30841

main42652-30840i200607-200708

245/40R18,*D/L,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30841

main42652-30840i200607-200708

245/40R18,*D/L,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30841

main42652-30841i200709-201012

245/40R18,*D/L,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

sub42652-30842

main42652-30841i200709-201012

245/40R18,*D/L,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

sub42652-30842

main42652-30841i200709-201012

245/40R18,*D/L,KOREA SPEC

sub42652-30842

main42652-30842i201101-201112

245/40R18,*D/L,KOREA SPEC

main42652-30842i201101-201112

245/40R18,*D/L,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-30842i201101-201112

245/40R18,*D/L,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-30A50i200501-200704

225/50R17,*Y/H

sub42652-30A51

main42652-30A51i200709-201012

225/50R17,*Y/H,KOREA SPEC

sub42652-30A52

main42652-30A51i200705-200709

225/50R17,*Y/H

sub42652-30A52

main42652-30A52i201101-201112

225/50R17,*Y/H,KOREA SPEC

main42652-30A70i200607-200704

245/40R18,*Y/H,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30A71

main42652-30A70i200607-200704

245/40R18,*Y/H,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30A71

main42652-30A70i200501-200704

245/40R18,*Y/H

sub42652-30A71

main42652-30A71i200709-201012

245/40R18,*Y/H,KOREA SPEC

sub42652-30A72

main42652-30A71i200705-200709

245/40R18,*Y/H

sub42652-30A72

main42652-30A71i200705-200709

245/40R18,*Y/H,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30A72

main42652-30A71i200709-201012

245/40R18,*Y/H,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

sub42652-30A72

main42652-30A71i200709-201012

245/40R18,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

sub42652-30A72

main42652-30A71i200705-200709

245/40R18,*Y/H,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

sub42652-30A72

main42652-30A72i201101-201112

245/40R18,*Y/H,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-30A72i201101-201112

245/40R18,*Y/H,KOREA SPEC

main42652-30A72i201101-201112

245/40R18,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-30C20i200607-200709

245/40R18,MICHELIN,TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8JJ

main42652-30C20i200607-200709

245/40R18,MICHELIN

42652ATIRE (FOR SPARE)

main42652-30C00i200510-200709

T155/70D17,*T/Y

main42652-30C00i200909-201112

T155/70D17,*T/Y,CANADA SPEC

main42652-30C00i200709-201112

T155/70D17,*T/Y,KOREA SPEC

main42652-30C00i200709-201112

T155/70D17,*T/Y,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-30C00i200709-201112

T155/70D17,*T/Y,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-58050i200709-201112

T155/70D17,*D/L,TAIWAN SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-58050i200709-201112

T155/70D17,*D/L,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J

main42652-58050i200709-201112

T155/70D17,*D/L,KOREA SPEC

main42652-58050i200909-201112

T155/70D17,*D/L,CANADA SPEC

main42652-58050i200610-200709

T155/70D17,*D/L

14 parts on this diagram · 3 diagrams in section
