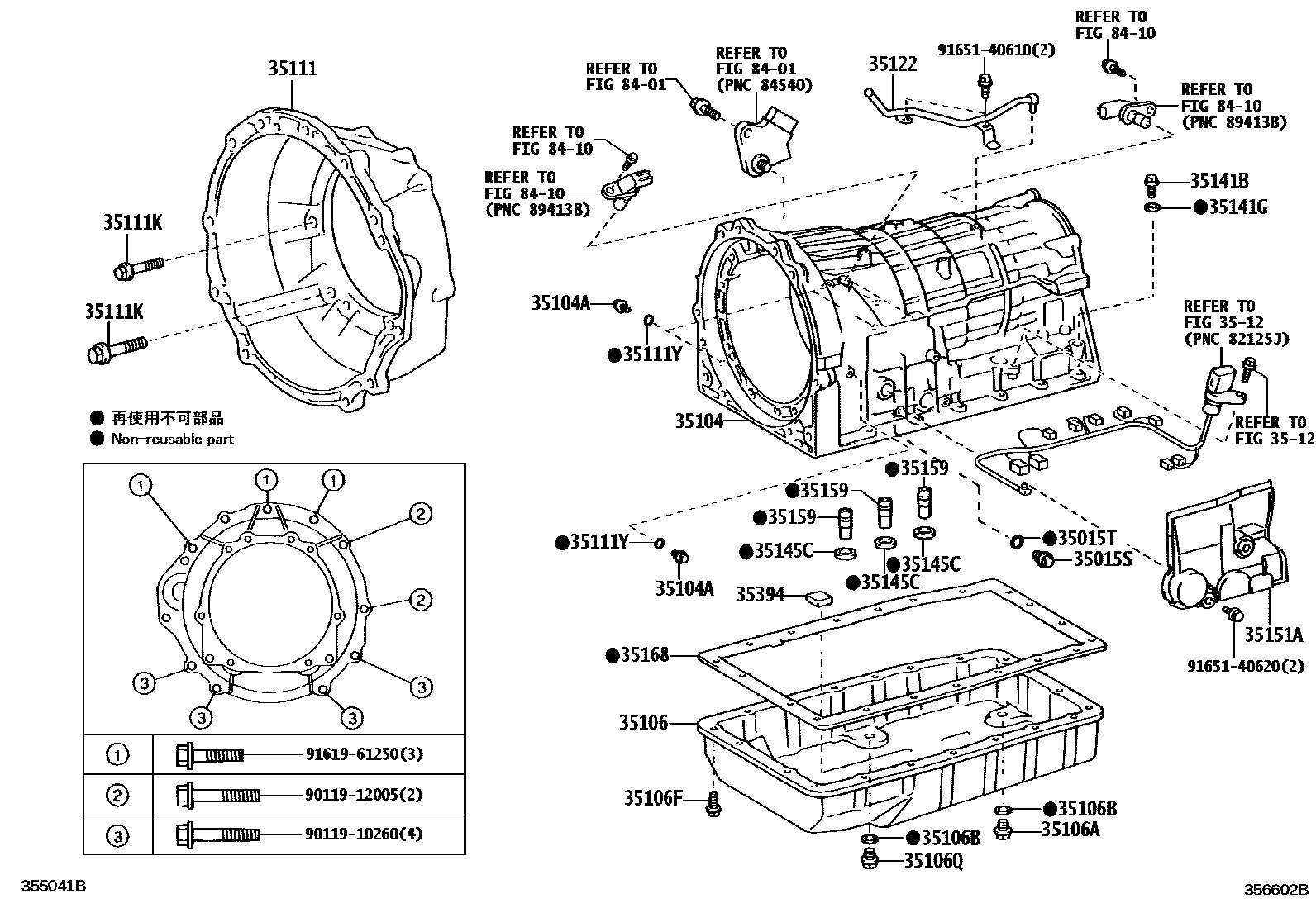

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A960E 0002 1A761E 0003 1A760H 0004 1A760E 0005 1AA80E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRS191,196,UZS190200501-200709

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRS19#200501-200607

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRS190200501-200607

main35104-30220iGRS195200501-200607

main35104-50020iGRS191,UZS190200501-200709

main35104-50030iURS190200709

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRS19#200501-200607

main90341-14011×2iURS190200709

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30260iGRS196200501-200709

main35106-30270iGRS190200501-200607

main35106-30300iURS190200709

sub35106-30310

main35106-50040iGRS191200709

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURS190200709

NO.1

main90341-10021iURS190200709

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRS19#200501-200607

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×20iGRS19#,UZS190200501-200610

main90119-06173×20iGRS19#,UZS190200610-200709

main90119-06982×9iURS190200709

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRS19#200501-200607

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRS190200501-200607

main35111-30190iGRS191,196200501-200709

main35111-50020iUZS190200501-200709

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRS191,196,UZS190200501-200709

*10-1.5PX35-30

main90119-10947×2iGRS191,196,UZS190200501-200709

*10-1.50PX35-29.3

main90119-12378×2iGRS19#200501-200607

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRS19#200709

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03182iGRS190200501-200607

main90930-03184iGRS195200501-200607

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRS19#200501-200607

main90341-24017iURS190200709

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11006iGRS19#200501-200607

main90301-11030iGRS19#200709

main90301-20013iURS190200709

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRS191,196,UZS190200501-200709

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS190200501-200607

main35151-30040iGRS191200709

35159GASKET, BRAKE DRUM

main35159-60010×3iGRS191,196,UZS190200501-200709

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS190200501-200607

main35168-50010iURS190200709

main35168-60010iGRS195200501-200607

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×6iGRS191200709

main35394-48010×3iURS190200709

8401

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 5 diagrams in section
