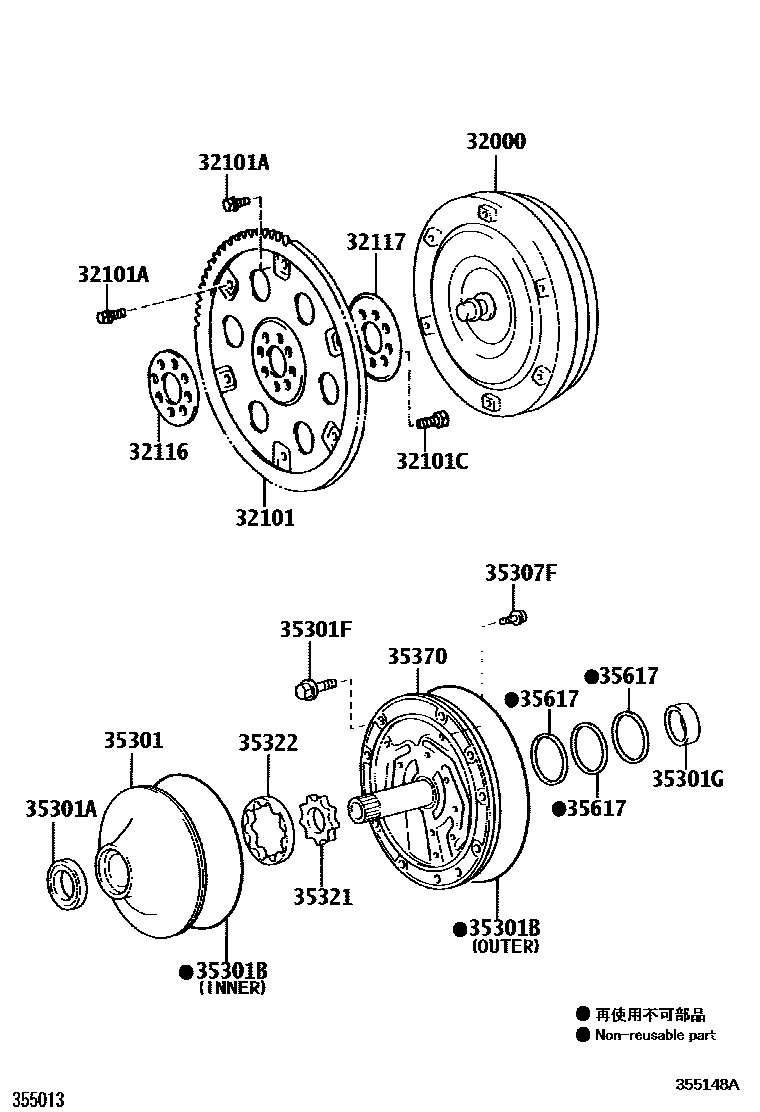

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX11-8,BLACK
*9-1.25PX11-8.5,SILVER WHITE
*10-1.5PX12.8-9.8
*10-1.5PX12.8-9.7
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*10-1.25PX18-13,(J)
*10-1.25PX23-16,(J)
*10-1.25PX23-16
*10-1.25PX23-16,(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BRING, O (FOR FRONT OIL PUMP BODY)
INNER
INNER
OUTER
INNER
OUTER
OUTER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX50-30
*8-1.25PX40-30
*8-1.25PX40-30
35301GBEARING,NEEDLE ROLLER
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=9.946-9.952
T=9.953-9.959
T=9.960-9.966
T=9.967-9.973
T=9.974-9.980
T=9.981-9.987
T=9.988-9.994
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
35322GEAR, FRONT OIL PUMP DRIVEN
T=9.946-9.952
T=9.953-9.959
T=9.960-9.966
T=9.967-9.973
T=9.974-9.980
T=9.981-9.987
T=9.988-9.994
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
35617RING, CLUTCH DRUM OIL SEAL
16 parts on this diagram · 3 diagrams in section
