STARTER

0001 112V 1.7KW 0002 112V 2.0KW 0003 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i3GRFSE..GRS19#200501-200709

main28021-38020i1URFSE..URS190200709

28100STARTER ASSY

main28100-31070i3GRFSE..GRS19#200501-200909

12V 1.7KW

sub28100-31071

main28100-31071i2GRFSE..GRS19#200910

12V 1.7KW

main28100-38020i1URFSE..URS190200709

12V 2.0KW

sub28100-38021

main28100-50110i3UZFE..UZS190200501-200709

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRFSE..GRS191,196200501-200709

main28110-38020i1URFSE..URS190200709-201012

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFSE..GRS19#200501-200709

main28114-38020i1URFSE..URS190200709-201012

28120YOKE ASSY, STARTER

main28120-28040i2GRFSE..GRS191,196200501-200808

sub28120-28060

main28120-28060i2GRFSE..GRS19#200808

main28120-38020i1URFSE..URS190200709-201107

main28120-38060i1URFSE..URS190201107

main28120-54380i3UZFE..UZS190200501-200709

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070i2GRFSE..GRS191,196200501-200709

main28130-38020i1URFSE..URS190200709-201012

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFSE..GRS19#200501-200709

28160ARMATURE ASSY, STARTER

main28160-21060i2GRFSE..GRS19#200501-200709

main28160-38020i1URFSE..URS190200709

main28160-75120i3UZFE..UZS190200501-200709

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFSE..GRS19#200501-200709

main28177-38020i1URFSE..URS190200709-201012

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFSE..GRS19#200501-200709

28255GEAR, PLANET

main28255-20020i3GRFSE..GRS19#200501-200709

main28255-38020i1URFSE..URS190200709-201012

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9164281065

main91642-81065

9415180800

main94151-80800

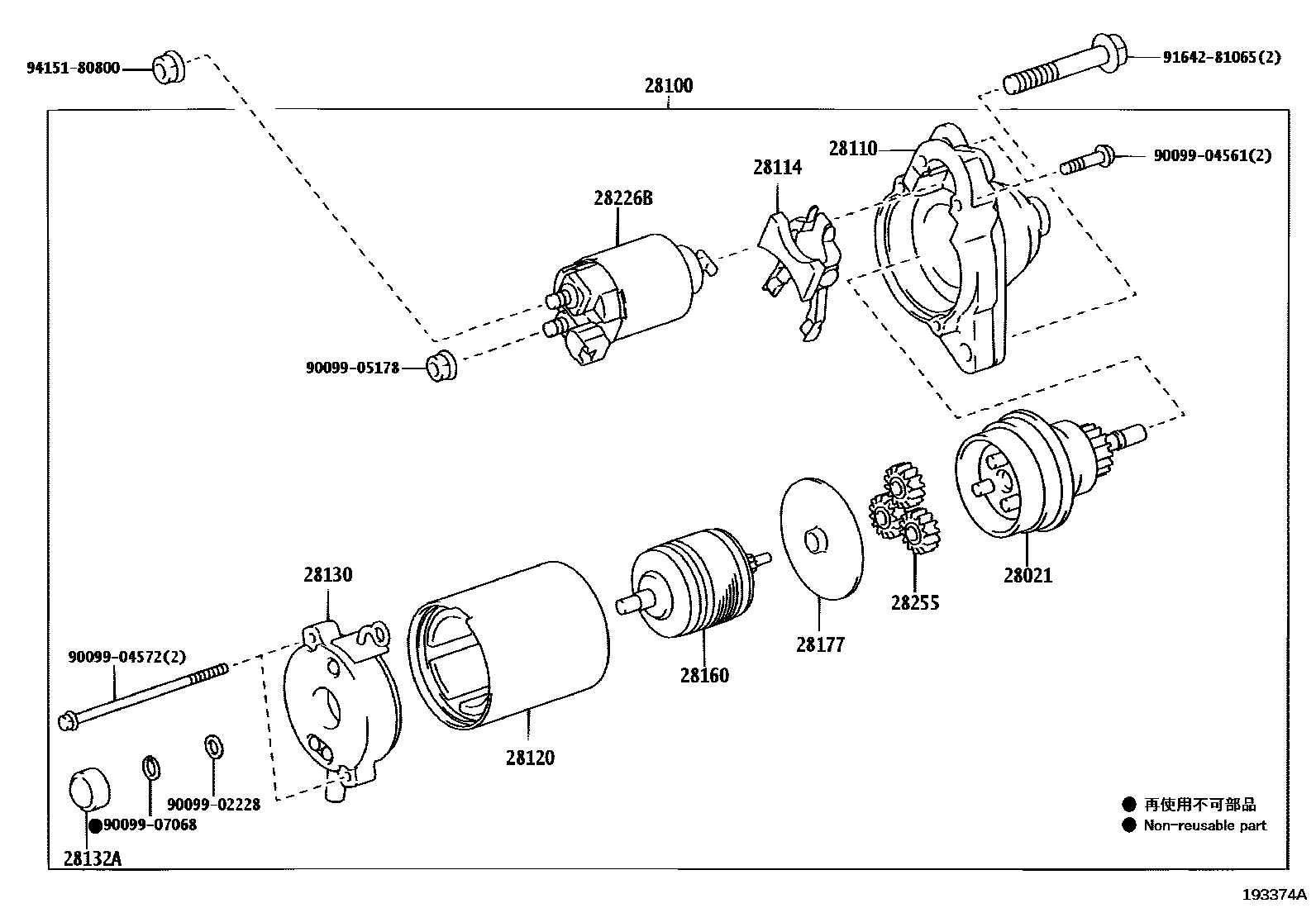

18 parts on this diagram · 3 diagrams in section
