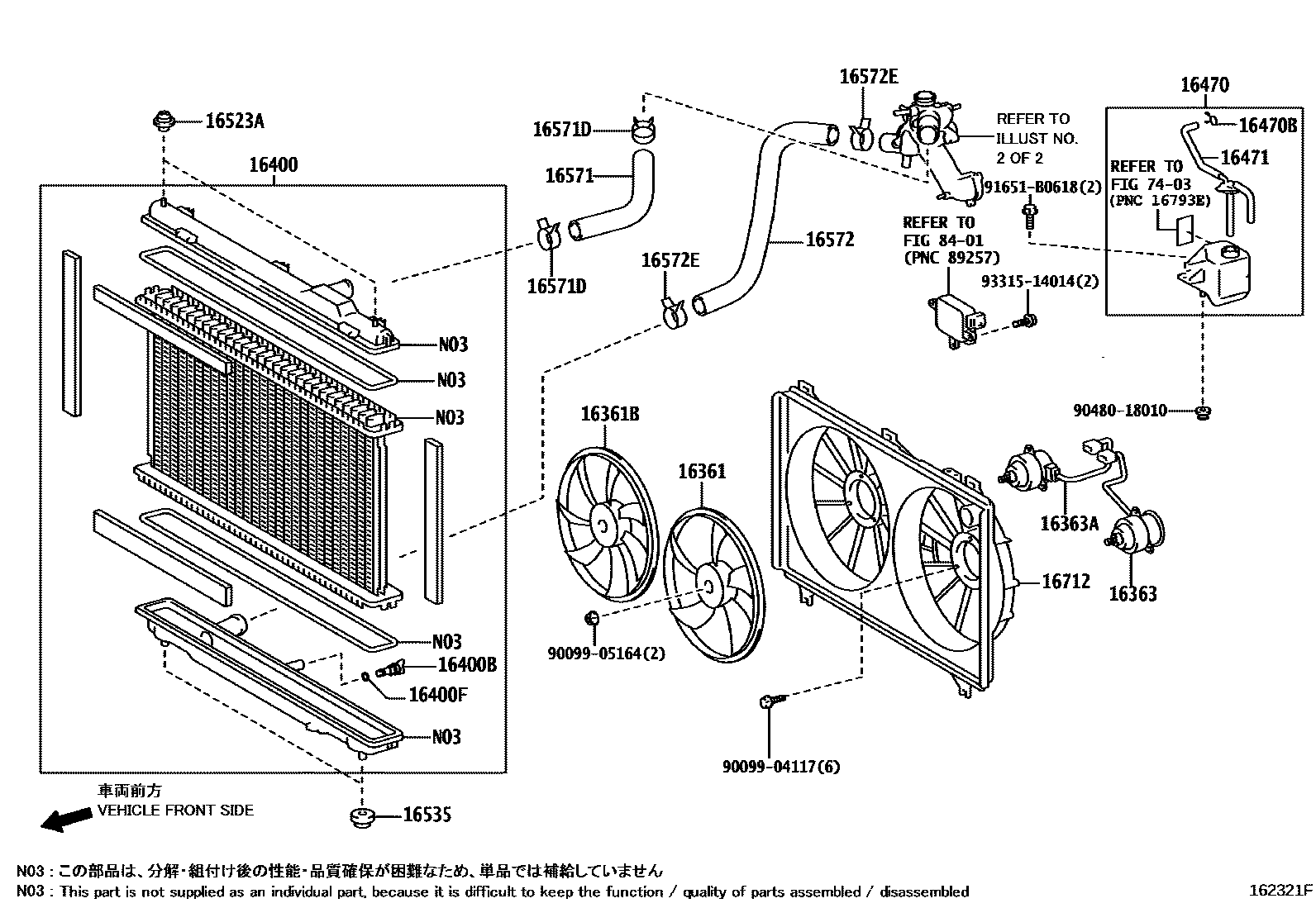

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16361FAN

main16361-31070i3GRFSE..GRS19#200501-200709

main16361-31110i2GRFSE..GRS19#200607-200709

main16361-38070i1URFSE..URS190200709

16361BFAN, NO.2

main16361-31080i2GRFSE..GRS19#200501-200709

main16361-38080i1URFSE..URS190200709

16363MOTOR, COOLING FAN

main16363-31010i3GRFSE..GRS19#200501-200709

main16363-31050i2GRFSE..GRS19#200607-200709

main16363-38070i1URFSE..URS190200709

16363AMOTOR, COOLING FAN, NO.2

main16363-31020i3GRFSE..GRS19#200501-200709

main16363-31070i2GRFSE..GRS19#200607-200709

main16363-38080i1URFSE..URS190200709

16400RADIATOR ASSY

main16400-31370i3GRFSE..GRS19#200501-200709

main16400-38220i1URFSE..URS190200709-201103

sub16400-38H30

main16400-38221i1URFSE..URS190201103

main16400-50340i3UZFE..UZS190200501-200709

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i3UZFE..UZS190200501-200709

main16417-21280i1URFSE..URS190200709

NO.1

main16417-28530i1URFSE..URS190200709

NO.2

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-20290i1URFSE..URS190200709

NO.2

main16492-21050i3GRFSE..GRS19#200501-200709

main16492-21050i1URFSE..URS190200709

NO.1

16470TANK ASSY, RADIATOR RESERVE

main16470-31030i2GRFSE..GRS19#200501-200709

main16470-38040i1URFSE..URS190200709-201103

main16470-38041i1URFSE..URS190201103

main16470-50150i3UZFE..UZS190200501-200709

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3UZFE..UZS190200501-200709

16471CAP SUB-ASSY, RESERVE TANK

main16405-31030i2GRFSE..GRS19#200501-200709

main16405-50060i3UZFE..UZS190200501-200709

main16475-51010i1URFSE..URS190200709

sub16475-28140

16523ACUSHION, RADIATOR SUPPORT

main16523-31010i3GRFSE..GRS19#200501-200709

main16523-38010i1URFSE..URS190200709

16535SUPPORT, RADIATOR, LOWER

main90480-40021i3GRFSE..GRS19#200501-200709

16571HOSE, RADIATOR, INLET

main16571-31160i2GRFSE..GRS191,196200501-201112

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002i1URFSE..URS190201111-201112

main90466-41008i3UZFE..UZS190200501-200709

main96136-44801i2GRFSE..GRS19#200908-201112

main96136-54801i1URFSE..URS190200501-200907

16572HOSE, RADIATOR, OUTLET

main16572-31180i2GRFSE..GRS19#200501-201005

sub16572-31380

main16572-31380i2GRFSE..GRS19#201006-201112

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i1URFSE..URS190201111-201112

main90466-41008i3UZFE..UZS190200501-200709

main96136-44801i2GRFSE..GRS19#200908-201112

main96136-54801i1URFSE..URS190200501-200907

16712SHROUD, FAN, NO.2

main16711-31230i3GRFSE..GRS19#200501-200709

main16711-31240i2GRFSE..GRS19#200607-200709

7403

8401

9009904117

main90099-04117

9009905164

main90099-05164

9048018010

main90480-18010

91651B0618

main91651-B0618

9331514014

main93315-14014

24 parts on this diagram · 8 diagrams in section
