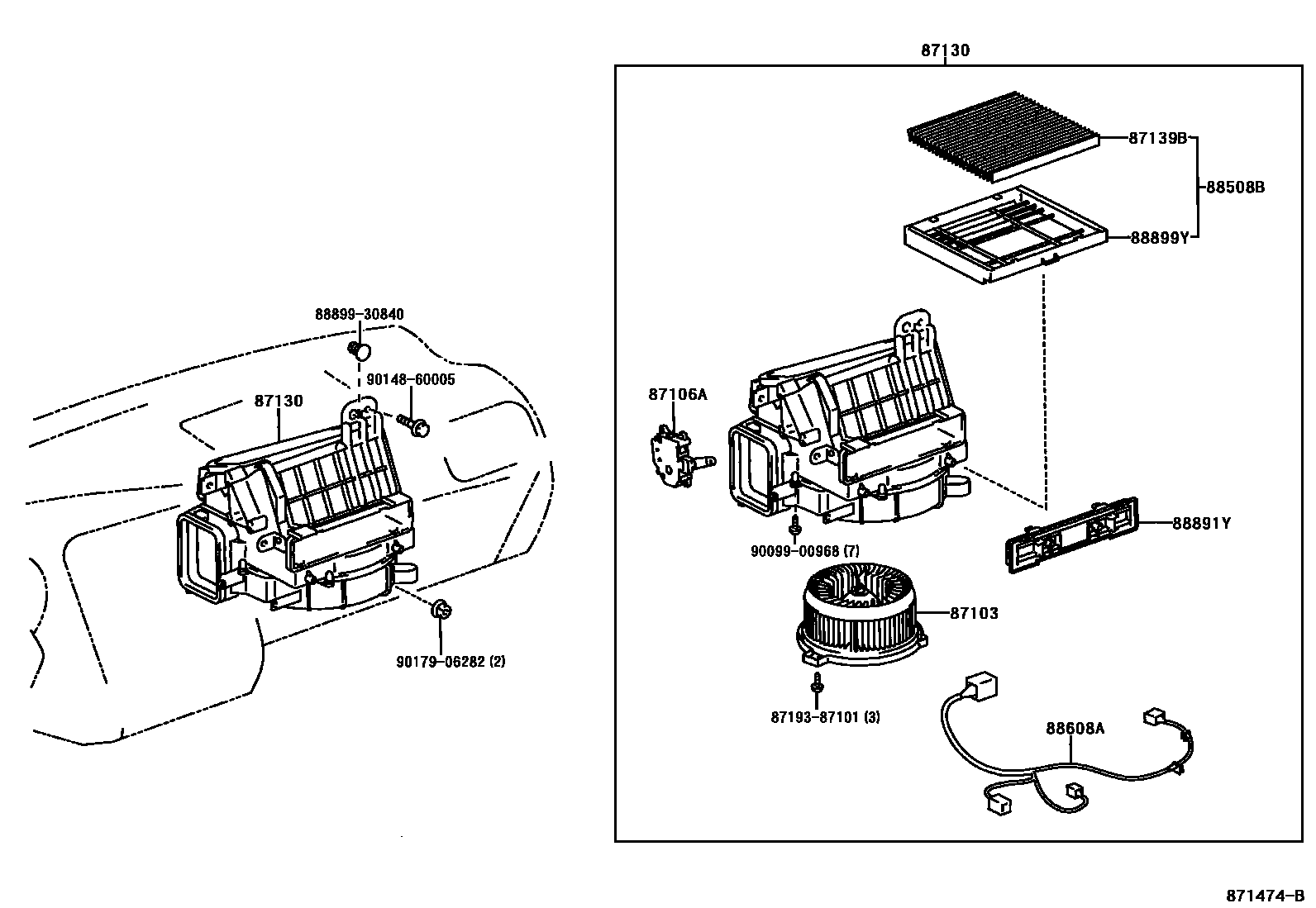

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30370iJZS160,UZS160199708-199808

sub87103-30390

main87103-30390iJZS160,UZS16#199808

87106ASERVO SUB-ASSY, DAMPER

main87106-30390iJZS160,UZS16#199708

87130BLOWER ASSY, HEATER, FRONT

main87130-30660iJZS160,UZS160199708-200007

main87130-30690iJZS160,UZS161200007-200208

sub87130-30691

main87130-30691iJZS160,UZS161200208

87139BFILTER, CLEAN AIR

main87139-30010iJZS160,UZS160199708-200007

sub87139-48030

main87139-50030iJZS160,UZS161200007

88508BFILTER SUB-ASSY, CLEAN AIR

main88508-22050iJZS160,UZS161200208-200501

main88508-30100iJZS160,UZS160199708-200007

main88508-50060iJZS160,UZS161200007-200208

88608AHARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2

main88608-3A030iJZS160,UZS16#199708

88891YCOVER, COOLER,NO.1

main88891-30680iJZS160,UZS16#199708

88899YPLATE, COVER(FOR AIR FILTER)

main88899-22380iJZS160,UZS161200208

main88899-30870iJZS160,UZS160199708-200007

main88899-50110iJZS160,UZS161200007-200208

8719387101

main87193-87101

8889930840COVER, EVAPORATOR

main88899-30840

9009900968

main90099-00968

9014860005

main90148-60005

9017906282

main90179-06282

13 parts on this diagram · 1 diagram in section
