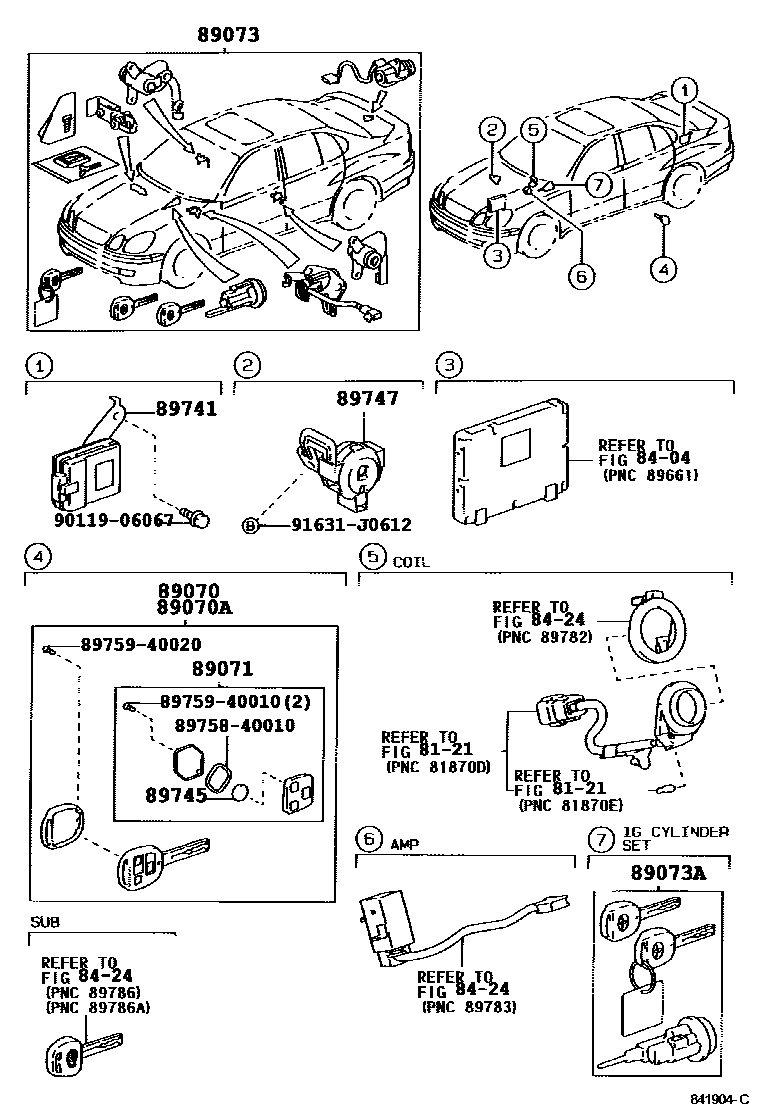

WIRELESS DOOR LOCK

0001 1 0002 1

8121

8404

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-50170iUZS160199708-200007

main89070-50180iJZS160199708

TAIWAN SPEC

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-50290iUZS160199708-200007

main89070-50300iJZS160199708

TAIWAN SPEC

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50020iUZS160199708-200009

sub89071-50021

main89071-50021iJZS160,UZS161200009

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-30170iJZS160,UZS160199708-200007

main89073-30171iJZS160,UZS161200007

main89073-30230iJZS160199708-200007

TAIWAN SPEC

main89073-30231iJZS160200007

TAIWAN SPEC

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-30060iJZS160,UZS16#199708-200501

main89073-30110iJZS160199708-200501

TAIWAN SPEC

89741RECEIVER, DOOR CONTROL

main89741-30200iJZS160,UZS160199708-199808

sub89741-30201

main89741-30201iJZS160,UZS161199808-200007

main89741-30270iJZS160199708-199810

TAIWAN SPEC

sub89741-30201

89745BATTERY, TRANSMITTER

main89745-40010iJZS160,UZS161200009

89747BUZZER, WIRELESS DOOR LOCK

main89747-30020iUZS160199708-200007

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906067

main90119-06067

91631J0612

main91631-J0612

16 parts on this diagram · 2 diagrams in section
