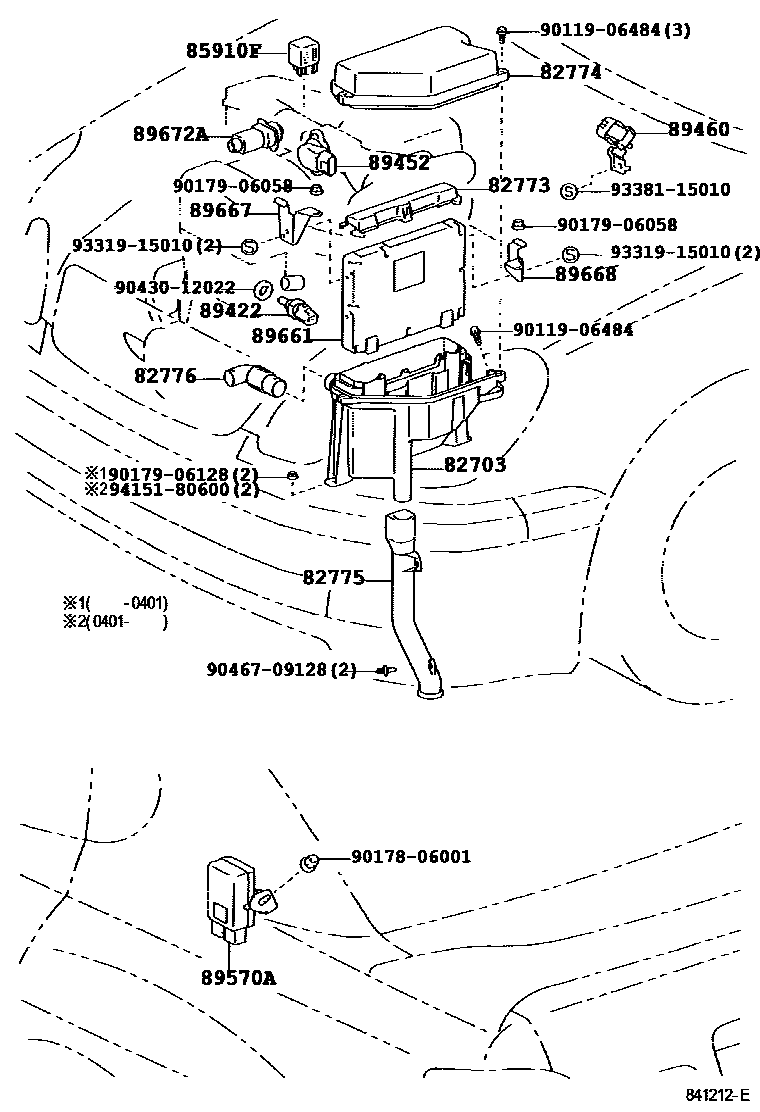

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-30010iJZS160,UZS160199708-200007

main82703-30060iUZS161200007-200107

main82703-30070iJZS160200007-200107

82773HOOD, ENGINE ROOM ECU

main82773-30010iJZS160,UZS160199708-200007

82774COVER, ENGINE ROOM ECU

main82774-30010iJZS160,UZS160199708-200007

main82774-30040iJZS160,UZS161200007

82775DUCT, ENGINE ROOM ECU INLET

main82775-30010iJZS160,UZS160199708-200007

main82775-30030iJZS160,UZS161200007

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30010iJZS160,UZS160199708-200007

main82776-30060iJZS160200007

main82776-30070iUZS161200007

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iJZS160,UZS16#199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iJZS160,UZS16#199708-200501

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iUZS160199708-200007

main89452-30150iJZS160,UZS161199708-200501

89460SENSOR ASSY, VAPOR PRESSURE

main89460-0W050iJZS160,UZS160199808-200007

sub89460-30010

main89460-30010iJZS160,UZS160199708-199808

main89460-53010iJZS160,UZS161200007-200501

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30180iJZS160,UZS16#199708

89661COMPUTER, ENGINE CONTROL

main89661-30A71iUZS161200408

main89661-30B00iJZS160200408

main89661-3A400iUZS161200307-200403

sub89661-3A401

main89661-3A401iUZS161200403-200408

main89661-3A420iJZS160199708-199711

sub89661-3A421

main89661-3A421iJZS160199711-199802

sub89661-3A422

main89661-3A422iJZS160199802-199808

sub89661-3A423

main89661-3A460iUZS160199708-199709

sub89661-3A461

main89661-3A461iUZS160199709-199712

sub89661-3A462

main89661-3A463iUZS160199712-199802

sub89661-3A464

main89661-3A464iUZS160199802-199808

sub89666-30050

main89661-3A490iJZS160199708-199805

TAIWAN SPEC

sub89661-3A491

main89661-3A491iJZS160199805-199808

TAIWAN SPEC

sub89661-3A492

main89661-3A541iUZS160199808-199810

sub89661-3A542

main89661-3A542iUZS160199810-199905

sub89661-3A543

main89661-3A543iUZS160199905-199908

main89661-3A550iJZS160199808-199810

sub89661-3A551

main89661-3A551iJZS160199810-199905

sub89661-3A552

main89661-3A552iJZS160199905-199908

main89661-3A580iJZS160199808-199810

TAIWAN SPEC

sub89661-3A581

main89661-3A581iJZS160199810-199905

TAIWAN SPEC

sub89661-3A582

main89661-3A582iJZS160199905-199908

TAIWAN SPEC

main89661-3F340iJZS160200307-200408

main89666-30020iUZS160199908-200007

main89666-30030iJZS160199908-200007

main89666-30040iJZS160199908-200007

TAIWAN SPEC

main89666-30070iJZS160200208-200307

main89666-30110iUZS161200007-200012

sub89666-30111

main89666-30111iUZS161200012-200107

main89666-30130iJZS160200007-200009

sub89666-30131

main89666-30131iJZS160200009-200102

sub89666-30132

main89666-30132iJZS160200102-200107

sub89666-30133

main89666-30170iJZS160200007-200107

TAIWAN SPEC

main89666-30220iUZS161200208-200307

main89666-30230iJZS160200107-200203

sub89666-30231

main89666-30231iJZS160200203-200207

sub89666-30232

main89666-30232iJZS160200207-200208

main89666-30250iJZS160200107-200203

TAIWAN SPEC

sub89666-30251

main89666-30251iJZS160200203

TAIWAN SPEC

main89666-30260iUZS161200107-200208

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30240iJZS160,UZS160199708-200007

main89667-30250iJZS160200007-200107

main89667-30280iUZS161200007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30200iJZS160,UZS160199708-200007

main89668-30230iUZS161200007

89672AMOTOR, THROTTLE CONTROL

main89672-30010iUZS160199708-200007

sub89672-47010

main89672-30020iJZS160199708-200501

9011906484

main90119-06484

9017806001

main90178-06001

9017906058

main90179-06058

9017906128

main90179-06128

9043012022

main90430-12022

9046709128

main90467-09128

9331915010

main93319-15010

9338115010

main93381-15010

9415180600

main94151-80600

23 parts on this diagram · 5 diagrams in section
