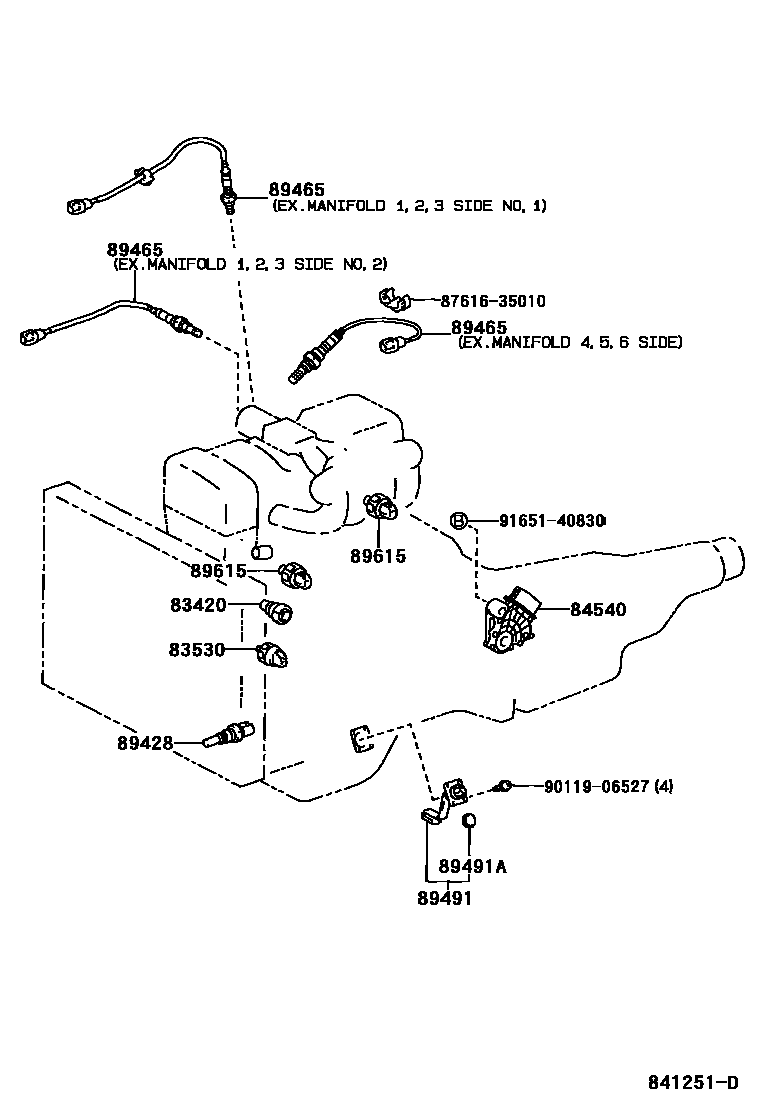

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020iJZS160199708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUZS16#199802-200501

DENSO

main83530-30090iJZS160199708-199712

YAZAKI

sub83530-60020

main83530-60020iJZS160199708-199802

DENSO

main83530-60020iJZS160199712-200501

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS160,UZS160199708-199908

main84540-30320iJZS160,UZS16#199908-200501

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iJZS160,UZS16#199708

89465SENSOR, OXYGEN

main89465-30410iUZS160199708-200007

REAR

main89465-30430iJZS160199708-200501

EX MANIFOLD 1,2,3SIDE,NO.1

main89465-30440iJZS160199708-199908

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-30450iJZS160199708-199908

EXHAUST PIPE

main89465-30470iJZS160199708-200501

EX MANIFOLD 4,5,6SIDE

main89465-30480iJZS160199908-200501

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-30490iJZS160199908-200501

EXHAUST PIPE

main89465-30630iUZS161200007-200501

REAR

main89465-50060iUZS160199708-200007

FRONT

sub89465-50150

main89465-50120iUZS161200007-200501

FRONT LH

main89465-50130iUZS161200007-200501

FRONT RH

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS160199708

main89491-30050iUZS16#199708

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iUZS160199708-200007

89615SENSOR, KNOCK CONTROL

main89615-12040iJZS160199708-199908

MATSUSHITA

main89615-12040iUZS160199708-200007

main89615-12050iJZS160199708-199908

DENSO

sub89615-12090

main89615-12090iJZS160199908-200501

main89615-30080iUZS161200007-200501

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011906527

main90119-06527

9165140830

main91651-40830

11 parts on this diagram · 8 diagrams in section
