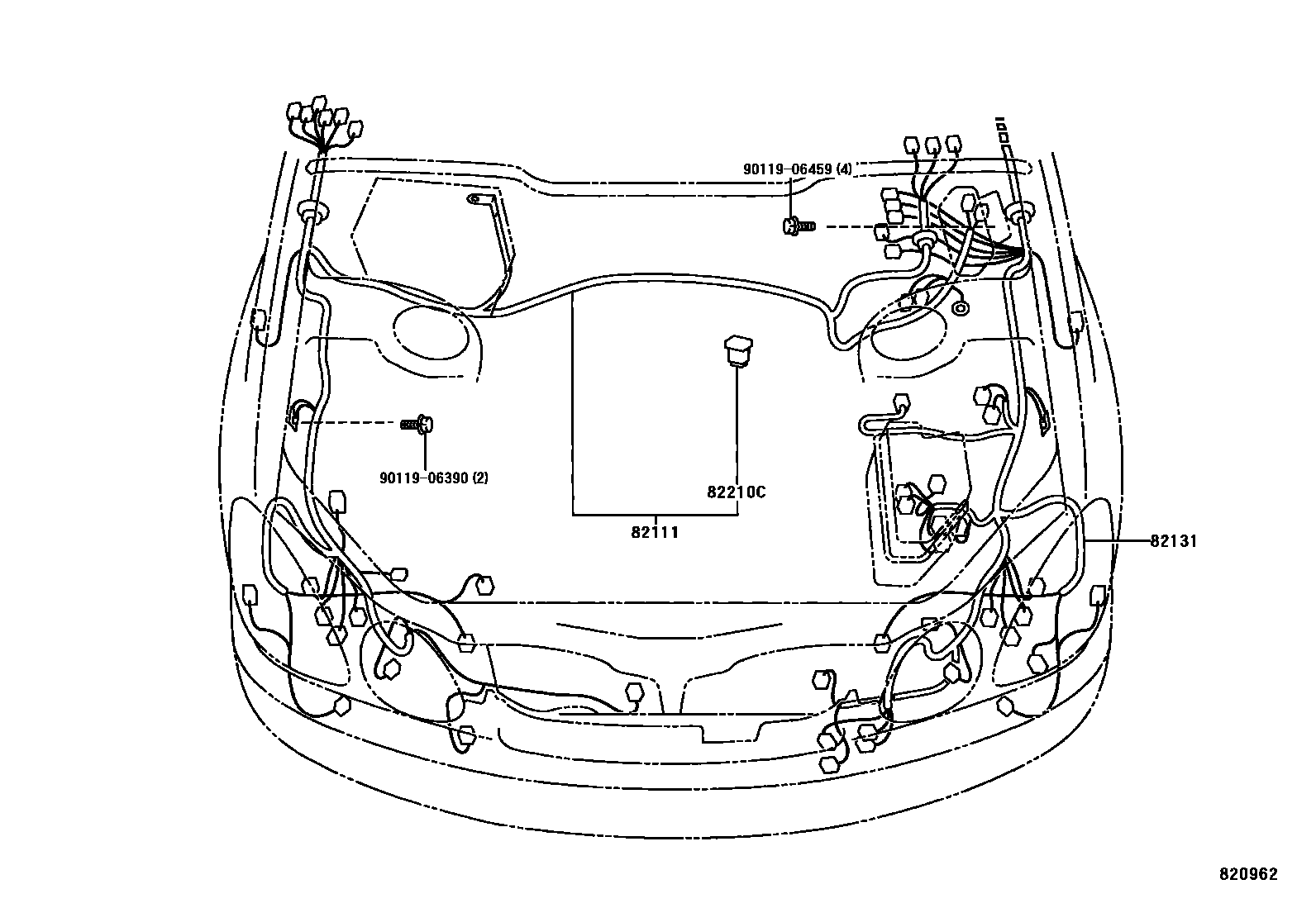

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(DISCHARGE HEADLAMP)
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(DAY TIME RUNNING LIGHT SYSTEM)
82131WIRE, COWL
W(DISCHARGE HEADLAMP)
CANADA SPEC & W(DISCHARGE HEADLAMP & SEAT HEATER)
W(SEAT HEATER)
W(DISCHARGE HEADLAMP);W(DISCHARGE HEADLAMP & SEAT HEATER)
CANADA SPEC & W(DISCHARGE HEADLAMP & SEAT HEATER)
W(DISCHARGE HEADLAMP)
W(SEAT HEATER)
W(DISCHARGE HEADLAMP);W(DISCHARGE HEADLAMP & SEAT HEATER)
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP & SEAT HEATER)
W(DAY TIME RUNNING LIGHT SYSTEM);W(DAY TIME RUNNING LIGHT SYSTEM & SEAT HEATER)
82210CFUSIBLE LINK
60A,TERM.:MALE,YEL
120A,TERM.:MALE,WHT
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,TERM.:FEMALE,RED
9011906390
main90119-06390
9011906459
main90119-06459
5 parts on this diagram · 9 diagrams in section
