SIDE MEMBER
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61139LBRACKET, FRONT BODY PILLAR OUTER
61139MBRACKET, FRONT BODY PILLAR OUTER
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH
61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61423GREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61424EREINFORCEMENT, ROCKER PANEL, NO.3 LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61611PANEL, QUARTER, RH
TAIWAN SPEC
sub61611-30841
61612PANEL, QUARTER, LH
TAIWAN SPEC
sub61612-3A231
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
61644CPATCH, QUARTER WHEEL HOUSE, NO.1 LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61649APLATE, QUARTER WHEEL HOUSE
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
NO.1
NO.2
NO.1
62151BPAD, COWL SIDE SILENCER
9011906355
main90119-06355
9015945010
main90159-45010
9015960507
main90159-60507
9017908025
main90179-08025
9018904207
main90189-04207
9033330002
main90333-30002
9033330008
main90333-30008
9046709183
main90467-09183
9046805045
main90468-05045
9095001826
main90950-01826
9095001841
main90950-01841
9095001864
main90950-01864
9095001959
main90950-01959
9095006070
main90950-06070
9095006110
main90950-06110
91621B0816
main91621-B0816

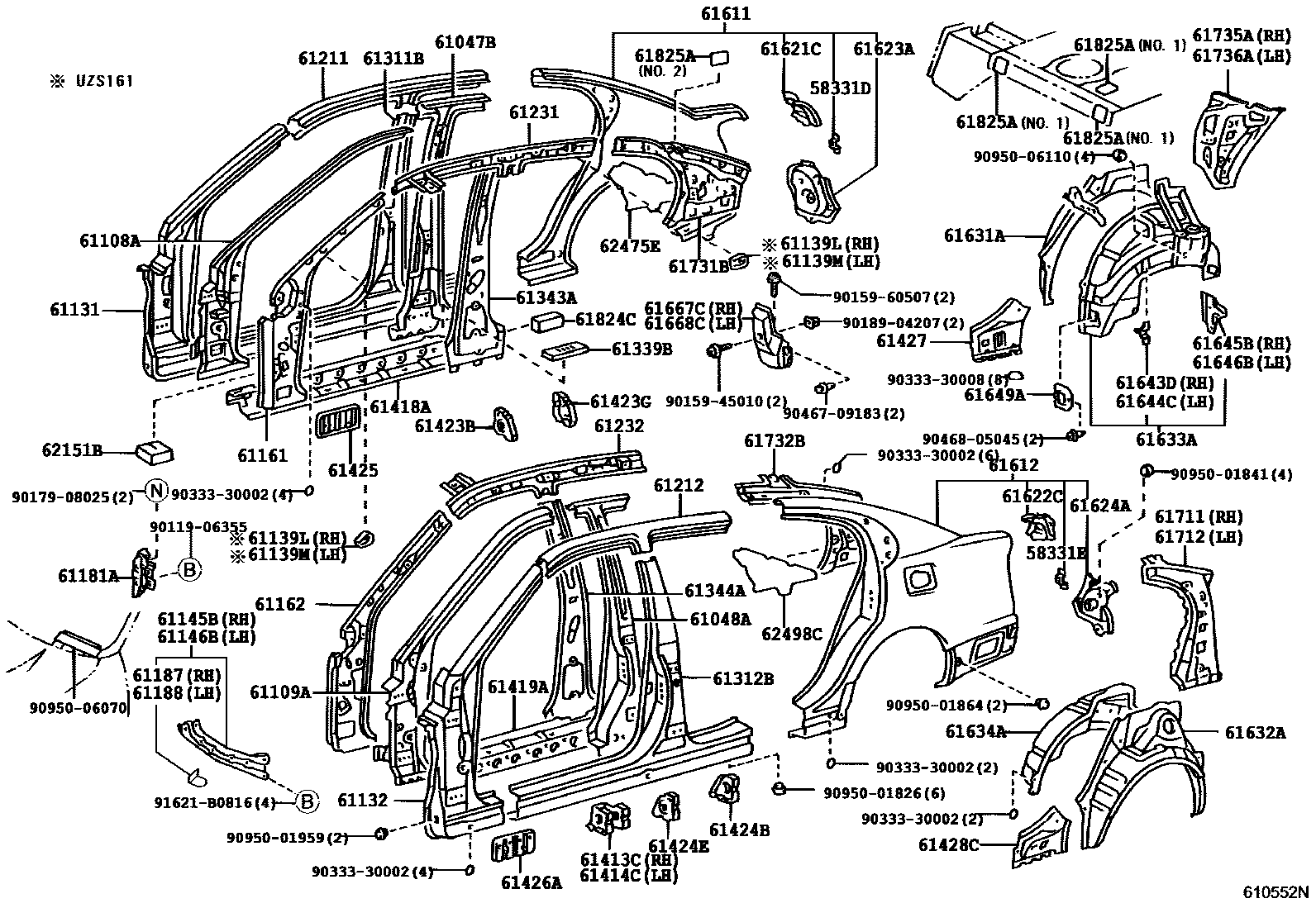

82 parts on this diagram · 2 diagrams in section
