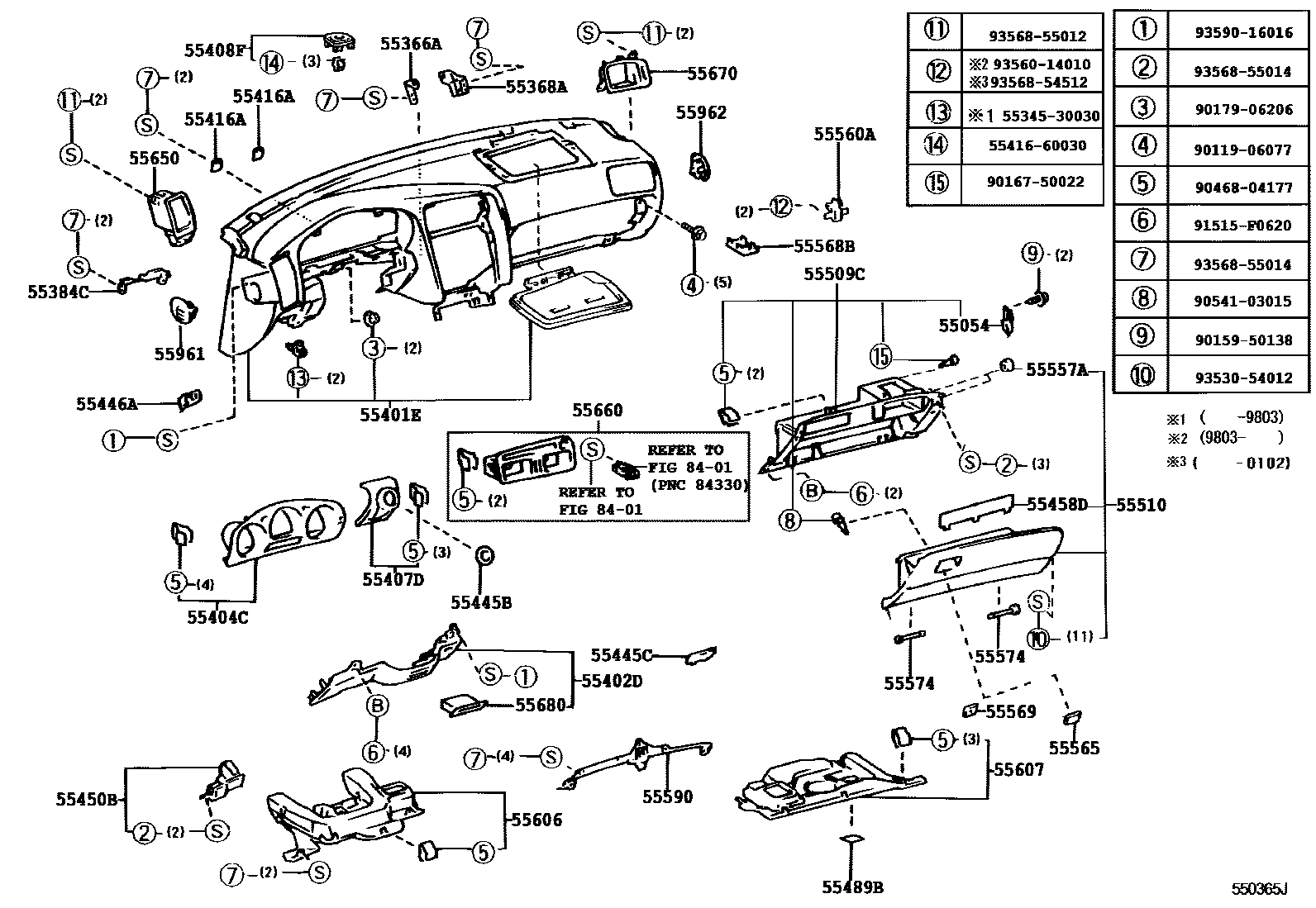

INSTRUMENT PANEL & GLOVE COMPARTMENT
55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55366ABRACKET, RADIO MOUNTING, NO.1
55368ABRACKET, RADIO MOUNTING, NO.2
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
W(8 SPEAKER),DK.CHARCOAL,TRIM1#
W(8 SPEAKER),BLACK,TRIM2#
W(8 SPEAKER),SANDAL WOOD,TRIM0#
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55407DPAD SUB-ASSY, INSTRUMENT PANEL, END
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55416ARETAINER, METER HOOD, NO.1
55445BPLATE, INSTRUMENT PANEL FINISH
55445CPLATE, INSTRUMENT PANEL BOX
55446ABASE, SWITCH HOLE, NO.1
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
55450BBOX ASSY, COIN
55458DCOVER, INSTRUMENT LOWER, RH
sub55459-30060
55489BLENS, FRONT FOOT LAMP, NO.2
55509CPANEL SUB-ASSY, GLOVE COMPARTMENT
W(CD AUTO CHANGER)
W(CD AUTO CHANGER)
55510DOOR ASSY, GLOVE COMPARTMENT
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55568BPLATE, GLOVE COMPARTMENT DOOR FINISH
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
8401
5534530030GARNISH, GLOVE COMPARTMENT, UPPER
main55345-30030
5541660030STOPPER,LIGHT CONTROL SWITCH
main55416-60030
9011906077
main90119-06077
9015950138
main90159-50138
9016750022
main90167-50022
9017906206
main90179-06206
9046804177
main90468-04177
9054103015
main90541-03015
91515F0620
main91515-F0620
9353054012
main93530-54012
9356014010
main93560-14010
9356854512
main93568-54512
9356855012
main93568-55012
9356855014
main93568-55014
9359016016
main93590-16016
49 parts on this diagram · 2 diagrams in section
