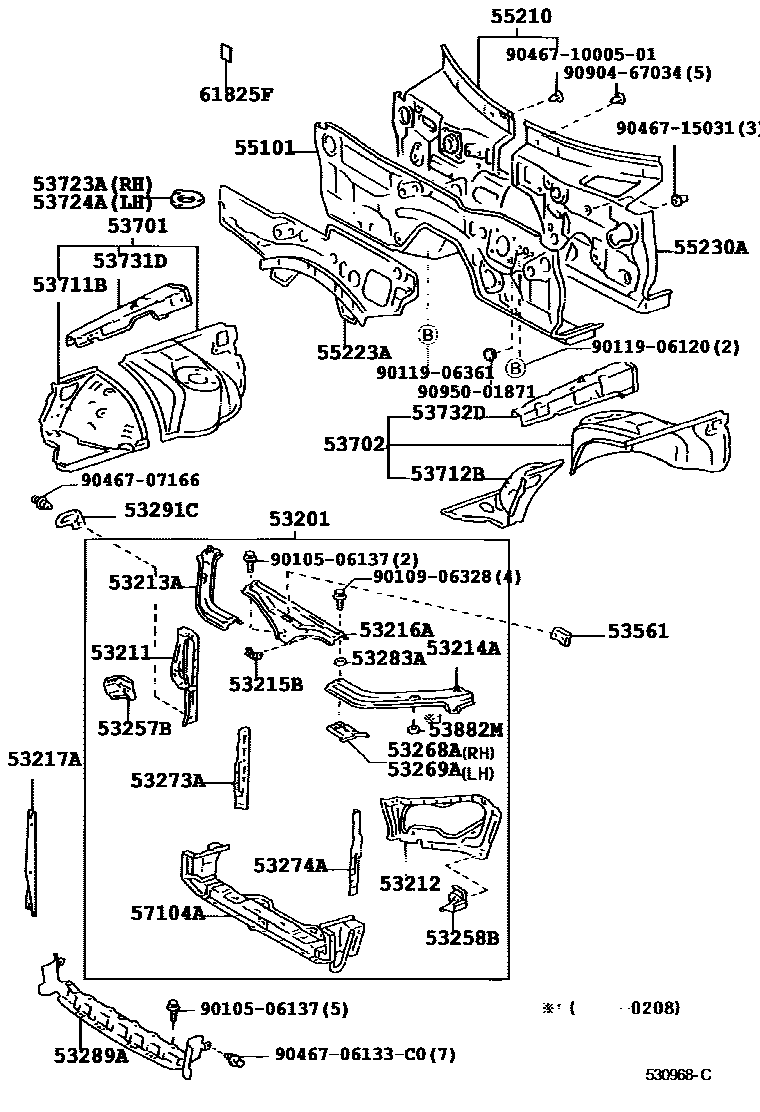

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53215BSUPPORT, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER
53289ACOVER, RADIATOR SUPPORT OPENING
53291CSEAL, RADIATOR SUPPORT TO FRAME
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53882MSEAL, FRONT FENDER
55101PANEL SUB-ASSY, DASH
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
61825FPLATE, NOISE CONTROL
9010506137
main90105-06137
9010906328
main90109-06328
9011906120
main90119-06120
9011906361
main90119-06361
9046706133C0
main90467-06133C0
9046707166
main90467-07166
904671000501
main90467-1000501
9046715031
main90467-15031
9090467034
main90904-67034
9095001871
main90950-01871
43 parts on this diagram · 1 diagram in section
