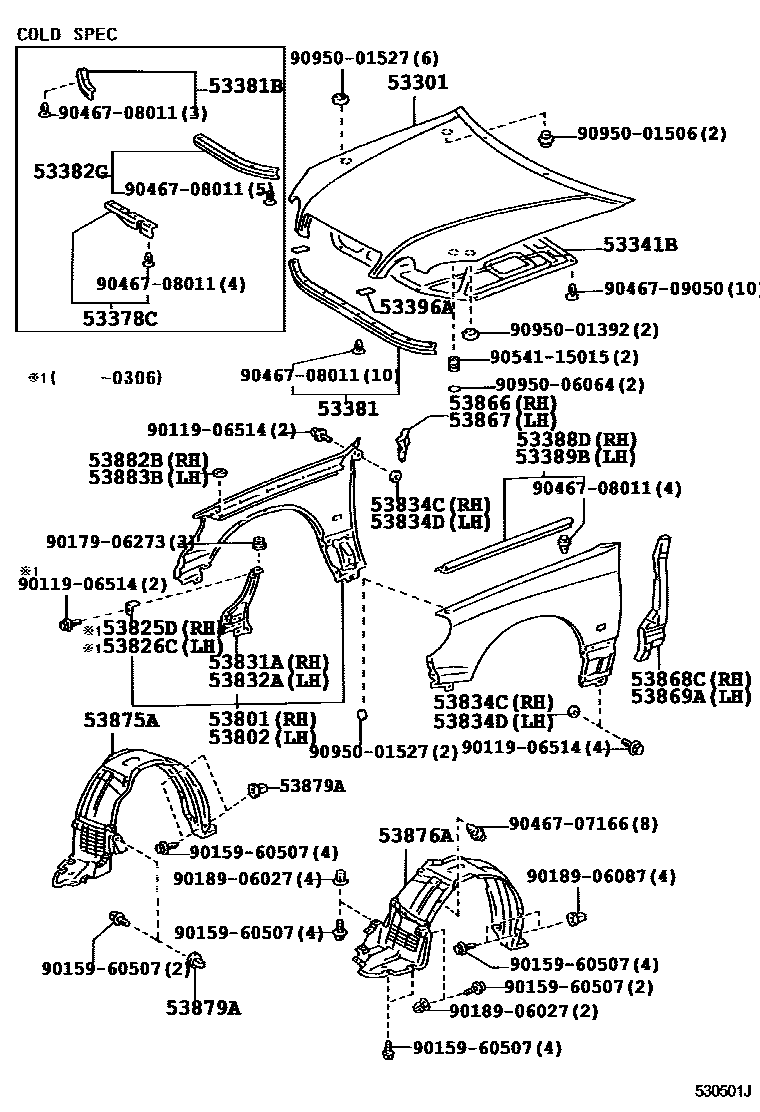

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-30410iJZS160,UZS16#199708

53341BINSULATOR, HOOD

main53341-30220iJZS160,UZS160199708-200003

sub53341-30221

main53341-30221iJZS160,UZS160200003-200005

sub53341-30222

main53341-30222iJZS160,UZS16#200005

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-30040iJZS160,UZS16#199708

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30170iJZS160,UZS16#199708-200307

sub53381-30171

main53381-30171iJZS160,UZS161200307

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-30180iJZS160,UZS16#199708

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-30090iJZS160,UZS16#199708

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30010iJZS160,UZS16#199708

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-30010iJZS160,UZS16#199708

53396ASEAL, HOOD TO FRONT END PANEL, NO.2

main53396-30050iJZS160,UZS16#199708

sub66244-30040

53801FENDER SUB-ASSY, FRONT RH

main53801-3F380iJZS160,UZS16#199708

53802FENDER SUB-ASSY, FRONT LH

main53802-3F200iJZS160,UZS16#199708

53825DPATCH, FRONT FENDER, UPPER RH

main53825-30110iJZS160,UZS16#199708-200306

53826CPATCH, FRONT FENDER, UPPER LH

main53826-30110iJZS160,UZS16#199708-200306

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-30170iJZS160,UZS16#199708

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-30170iJZS160,UZS16#199708

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-30090iJZS160,UZS16#199708-200501

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-30100iJZS160,UZS16#199708-200501

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30090iJZS160,UZS16#199708

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30090iJZS160,UZS16#199708

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-30020iJZS160,UZS160199708-199710

sub53868-30021

main53868-30021iJZS160,UZS16#199710

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-30020iJZS160,UZS160199708-199710

sub53869-30021

main53869-30021iJZS160,UZS16#199710

53875ALINER, FRONT FENDER, RH

main53875-30150iJZS160,UZS16#199708

53876ALINER, FRONT FENDER, LH

main53876-30110iJZS160,UZS16#199708

53879ARETAINER, FRONT FENDER LINER

main53879-50010iJZS160,UZS16#199708

53882BSEAL, FRONT FENDER, RH

main53882-30030iJZS160,UZS16#199708

53883BSEAL, FRONT FENDER, LH

main53882-30030iJZS160,UZS16#199708

9011906514

main90119-06514

9015960507

main90159-60507

9017906273

main90179-06273

9018906027

main90189-06027

9018906087

main90189-06087

9046707166

main90467-07166

9046708011

main90467-08011

9046709050

main90467-09050

9054115015

main90541-15015

9095001392

main90950-01392

9095001506

main90950-01506

9095001527

main90950-01527

9095006064

main90950-06064

39 parts on this diagram · 1 diagram in section
