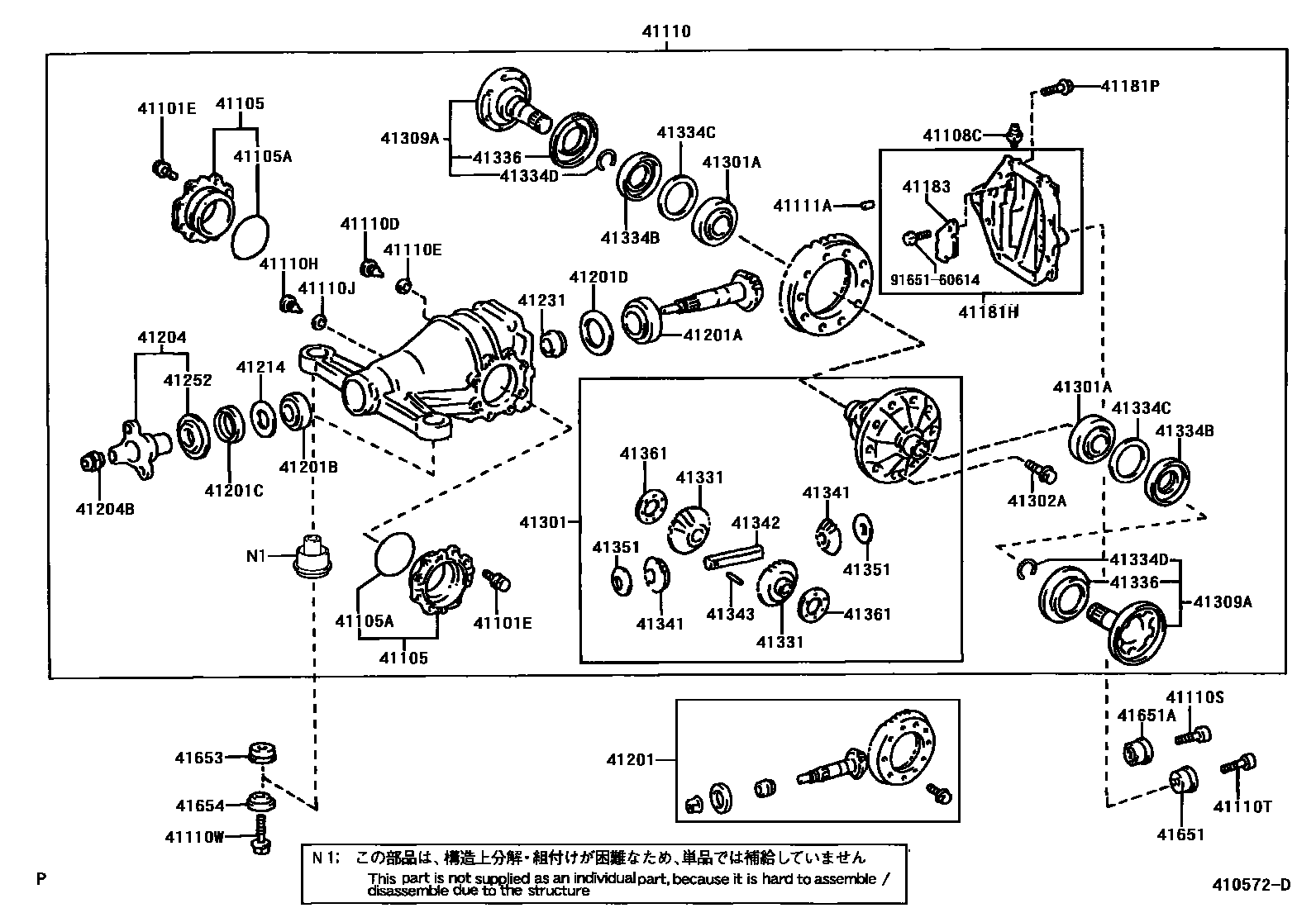

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41105RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER
41105ARING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-45032
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=40.4
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-50031
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
LH
RH
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41331GEAR, REAR DIFFERENTIAL SIDE
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=2.30,MARK 30
T=2.32,MARK 32
T=2.34,MARK 34
T=2.36,MARK 36
T=2.38,MARK 38
T=2.40,MARK 40
T=2.42,MARK 42
T=2.44,MARK 44
T=2.46,MARK 46
T=2.48,MARK 48
T=2.50,MARK 50
T=2.52,MARK 52
T=2.54,MARK 54
T=2.56,MARK 56
T=2.58,MARK 58
T=2.60,MARK 60
T=2.62,MARK 62
T=2.64,MARK 64
T=2.66,MARK 66
T=2.68,MARK 68
T=2.70,MARK 70
T=2.72,MARK 72
T=2.74,MARK 74
T=2.76,MARK 76
T=2.78,MARK 78
T=2.80,MARK 80
T=2.82,MARK 82
T=2.84,MARK 84
T=2.86,MARK 86
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.8
T=3.66,MARK 66,NO.2,T=3.66
T=3.68,MARK 68,NO.2,T=3.68
T=3.70,MARK 70,NO.2,T=3.70
T=3.72,MARK 72,NO.2,T=3.72
T=3.74,MARK 74,NO.2,T=3.74
T=3.76,MARK 76,NO.2,T=3.76
T=3.78,MARK 78,NO.2,T=3.78
T=3.80,MARK 80,NO.2,T=3.80
T=3.82,MARK 82,NO.2,T=3.82
T=3.84,MARK 84,NO.2,T=3.84
T=3.86,MARK 86,NO.2,T=3.86
T=3.88,MARK 88,NO.2,T=3.88
T=3.90,MARK 90,NO.2,T=3.90
T=3.92,MARK 92,NO.2,T=3.92
T=3.94,MARK 94,NO.2,T=3.94
T=3.96,MARK 96,NO.2,T=3.96
T=3.98,MARK 98,NO.2,T=3.98
T=4.00,MARK 00,NO.2,T=4.00
T=4.02,MARK 02,NO.2,T=4.02
T=4.04,MARK 04,NO.2,T=4.04
T=4.06,MARK 06,NO.2,T=4.06
T=4.08,MARK 08,NO.2,T=4.08
T=4.10,MARK 10,NO.2,T=4.10
T=4.12,MARK 12,NO.2,T=4.12
T=4.14,MARK 14,NO.2,T=4.14
T=4.16,MARK 16,NO.2,T=4.16
T=4.18,MARK 18,NO.2,T=4.18
T=4.20,MARK 20,NO.2,T=4.20
T=4.22,MARK 22,NO.2,T=4.22
T=4.24,MARK 24,NO.2,T=4.24
T=4.26,MARK 26,NO.2,T=4.26
T=4.28,MARK 28,NO.2,T=4.28
T=4.30,MARK 30,NO.2,T=4.30
T=4.32,MARK 32,NO.2,T=4.32
T=4.34,MARK 34,NO.2,T=4.34
T=4.36,MARK 36,NO.2,T=4.36
T=4.38,MARK 38,NO.2,T=4.38
T=4.40,MARK 40,NO.2,T=4.40
T=4.42,MARK 42,NO.2,T=4.42
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.50
T=1.55
T=1.65
T=1.75
T=1.85
T=1.90
T=1.7
T=1.8
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
H=17.5
H=18.0
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
9165160614
main91651-60614
45 parts on this diagram · 2 diagrams in section
