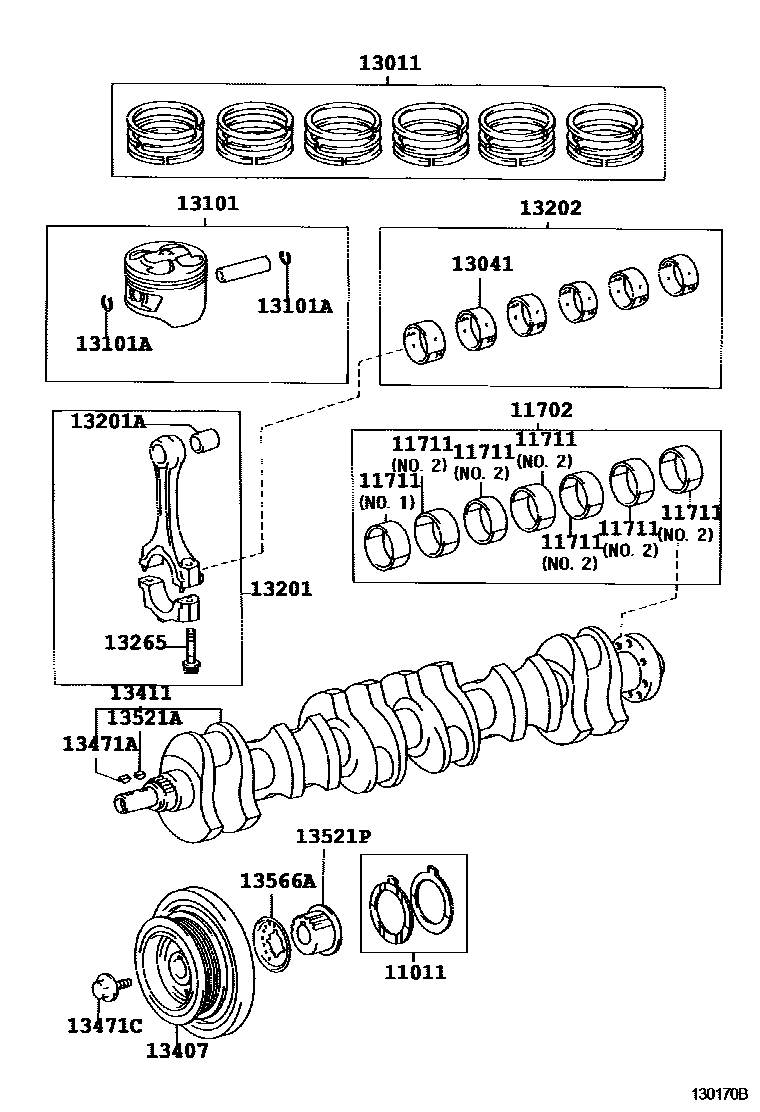

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
REFER TO REPAIR MANUAL,MARK UPPER 1 LOWER 1,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 1 LOWER 2,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 2,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 3,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 4,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 4,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 5,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5,NO.2,3,4
sub11071-50031
REFER TO REPAIR MANUAL,MARKUPPER2LOWER1,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 1 LOWER 2,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 2,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 3,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 4,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 4,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 5,NO.2,3,4
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5,NO.2,3,4
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 4,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 4,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 5,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 6,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 6,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 7,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 7 LOWER 7,NO.1,5
sub11701-50041
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 4,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 4,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 4 LOWER 5,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 6,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 6,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 7,NO.1,5
REFER TO REPAIR MANUAL,MARK UPPER 7 LOWER 7,NO.1,5
13011RING SET, PISTON
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK 1,RH
STD,MARK 2,RH
STD,MARK 3,RH
STD,MARK 1,LH
STD,MARK 2,LH
STD,MARK 3,LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
sub90520-22025
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13407DAMPER SUB-ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
18 parts on this diagram · 2 diagrams in section
