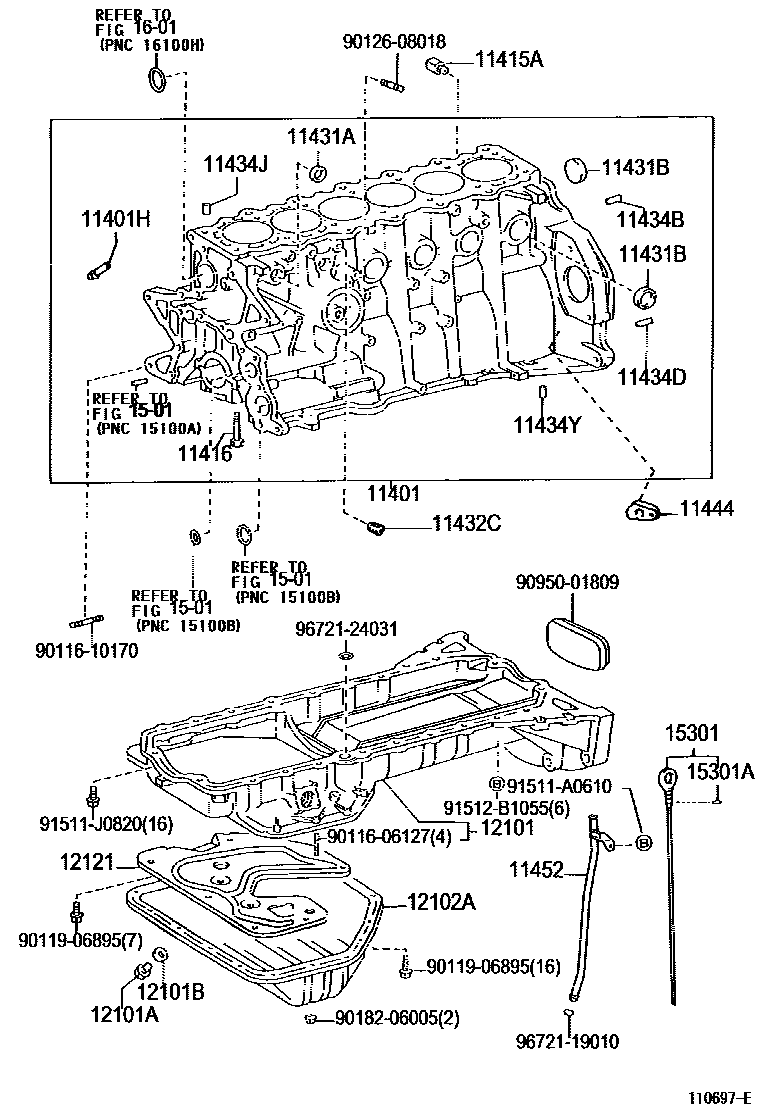

CYLINDER BLOCK
11401HUNION(FOR CYLINDER BLOCK LLC DRAIN)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11432CPLUG, W/HEAD TAPER SCREW, NO.3
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11444PLUG, HOLE
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
1501
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
1601
9011606127
main90116-06127
9011610170
main90116-10170
9011906895
main90119-06895
9012608018
main90126-08018
9018206005
main90182-06005
9095001809
main90950-01809
91511A0610
main91511-A0610
91511J0820
main91511-J0820
91512B1055
main91512-B1055
9672119010
main96721-19010
9672124031
main96721-24031
34 parts on this diagram · 2 diagrams in section
