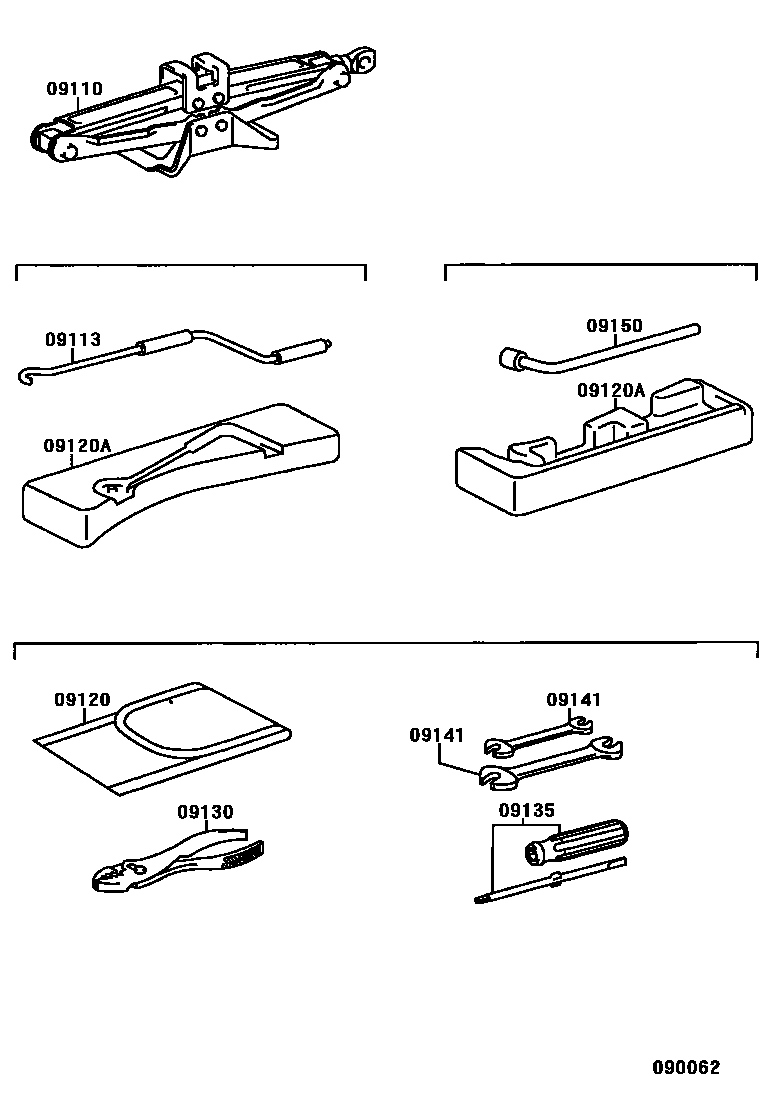

STANDARD TOOL

09110JACK ASSY

main09111-30120iJZS160,UZS16#199708-200107

main09111-50050iJZS160,UZS161200107-200112

sub09111-50051

main09111-50051iJZS160,UZS161200112

sub09111-76011

09113HANDLE, JACK

main09113-14030iJZS160,UZS160199708-199909

main09113-22020iJZS160,UZS16#199909

09120BAG, TOOL

main09120-24020iJZS160,UZS16#199708

09120ACASE, TOOL

main09120-30090iJZS160,UZS160199708-199909

FOR JACK HANDLE

main09120-30100iJZS160,UZS160199708-199909

FOR HUB NUT BOX WRENCH

09130PLIERS

main09130-50030iJZS160,UZS16#199708

09135DRIVER, SCREW

main09135-50040iJZS160,UZS16#199708

09141SPANNER

main09141-50050iJZS160,UZS16#199708

8 X 10

main09141-50060iJZS160,UZS16#199708

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iJZS160,UZS16#199708

sub09150-53010

8 parts on this diagram · 1 diagram in section
