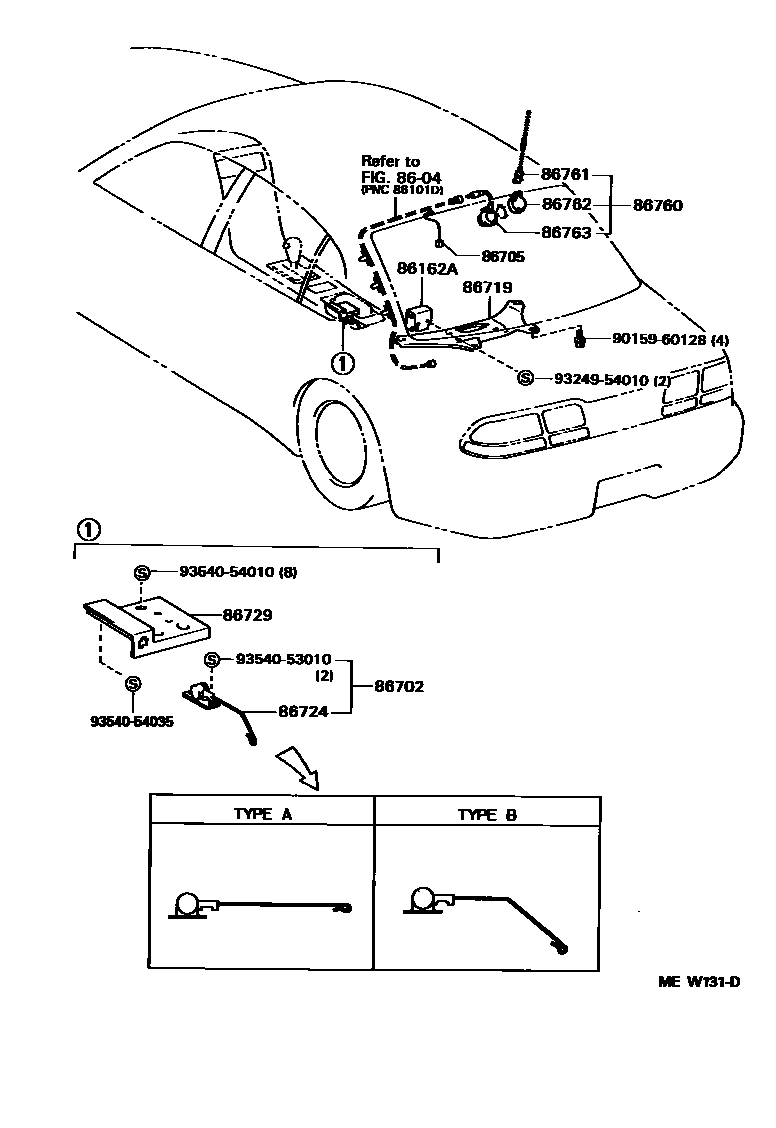

TELEPHONE & MAYDAY

8604

86162ARELAY, SPEAKER

main86162-50010iJZS147199301-199705

86702BRACKET SET, TELEPHONE

main86702-24010iJZS147199301-199410

TYPE A

sub86702-33010

main86702-30010iJZS147199301-199708

TYPE B

main86702-33010iJZS147199410-199708

TYPE A

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-30010iJZS147199508-199708

86719BRACKET, TELEPHONE

main86719-30040iJZS147199301-199708

86724GUIDE, CURL CORD

main86724-30010iJZS147199301-199708

TYPE B

main86724-33010iJZS147199410-199708

TYPE A

main86724-50010iJZS147199301-199410

TYPE A

sub86724-33010

86729BRACKET, MOBILEPHONE

main86729-30030iJZS147199301-199708

86760ANTENNA ASSY, TELEPHONE

main86760-24010iJZS147199301-199507

86761ROD, TELEPHONE ANTENNA

main86761-50010iJZS147199301-199507

86762BASE, TELEPHONE ANTENNA

main86762-50010iJZS147199301-199507

86763BASE, TELEPHONE ANTENNA, N0.2

main86763-24010iJZS147199301-199507

9015960128

main90159-60128

9324954010

main93249-54010

9354053010

main93540-53010

9354054010

main93540-54010

9354054035

main93540-54035

16 parts on this diagram · 1 diagram in section
