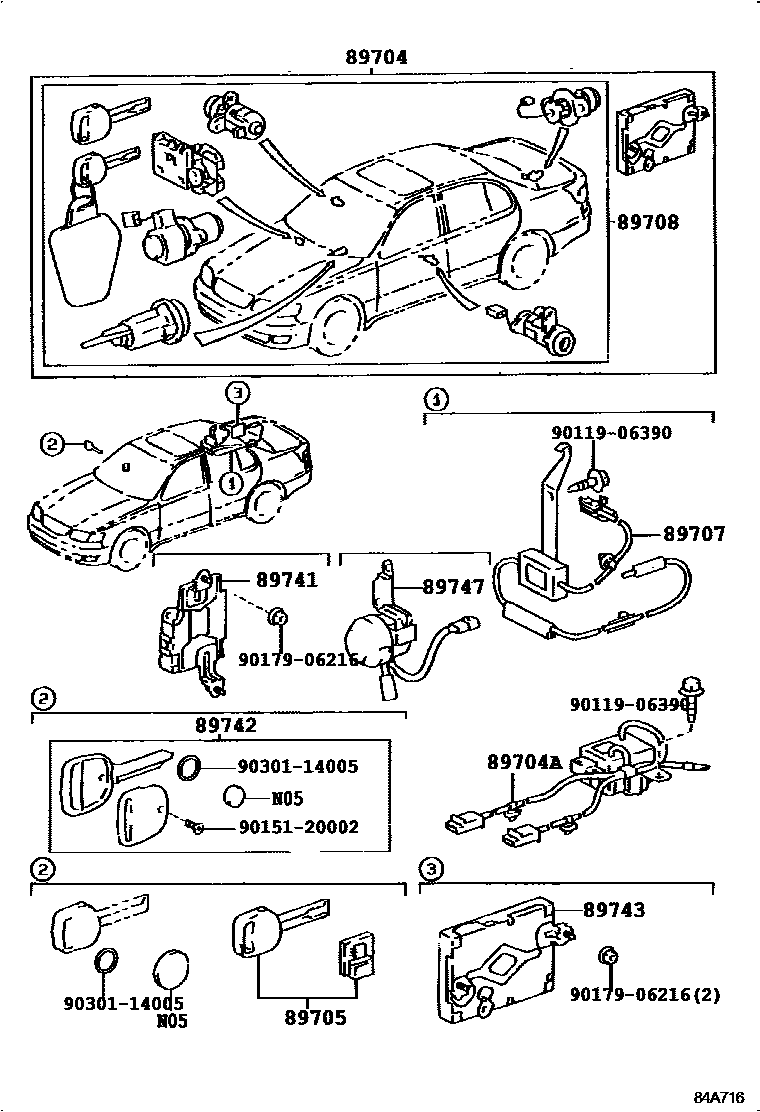

WIRELESS DOOR LOCK

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-30110iJZS147199301-199408

sub89708-30050

main89704-30210iJZS147199408-199503

sub89708-30140

main89704-30211iJZS147199508-199708

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05273iJZS147199301-199708

89705TRANSMITTER, DOOR CONTROL

main89705-50943iJZS147199301-199408

main89705-50944iJZS147199408-199503

main89705-50945iJZS147199508-199708

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-30030iJZS147199301-199708

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-30140iJZS147199503-199708

89741RECEIVER, DOOR CONTROL

main89741-30140iJZS147199408-199508

sub89741-30141

main89741-30141iJZS147199508-199708

89742TRANSMITTER, DOOR CONTROL

main89742-24070iJZS147199408-199708

89743RECEIVER, DOOR CONTROL

main89743-30080iJZS147199301-199408

89747BUZZER, WIRELESS DOOR LOCK

main89747-30010iJZS147199508-199708

9011906390

main90119-06390

9015120002

main90151-20002

9017906216

main90179-06216

9030114005

main90301-14005

13 parts on this diagram · 1 diagram in section
