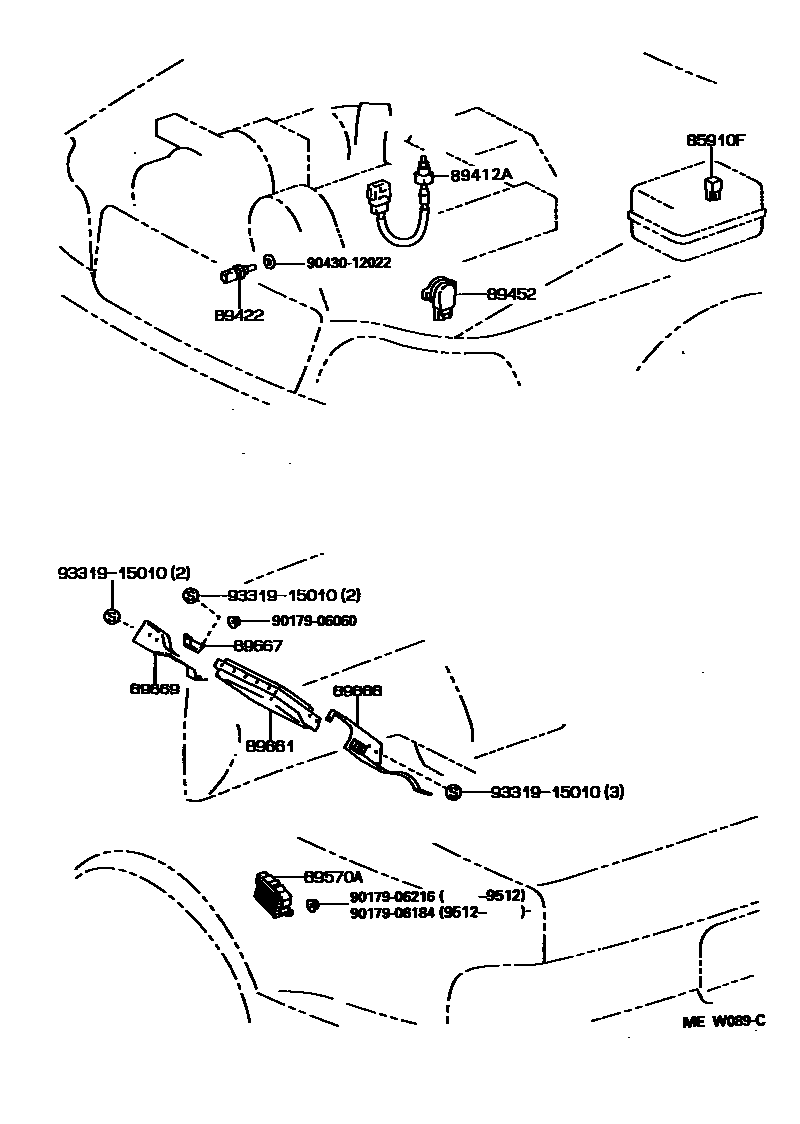

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iJZS147199301-199708

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-24030iJZS147..USA199301-199308

CALIFORNIA SPEC

sub89412-24031

main89412-24030iJZS147199308-199408

sub89412-24031

main89412-24031iJZS147..USA199404-199408

CALIFORNIA SPEC

main89412-24031iJZS147199408-199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZS147199301-199708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iJZS147199301-199708

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30170iJZS147199301-199708

89661COMPUTER, ENGINE CONTROL

main89661-30570iJZS147..CND199608-199611

sub89661-30571

main89661-30571iJZS147..CND199611-199708

main89661-30680iJZS147..USA199301-199308

CALIFORNIA SPEC

main89661-30681iJZS147..USA199308-199408

CALIFORNIA SPEC

main89661-30682iJZS147199408-199508

main89661-30690iJZS147199301-199308

main89661-30691iJZS147199308-199408

main89661-3A010iJZS147199508-199510

sub89661-3A011

main89661-3A011iJZS147199510-199608

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30160iJZS147199301-199708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30150iJZS147199301-199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30120iJZS147199301-199708

9017906060

main90179-06060

9017906184

main90179-06184

9017906216

main90179-06216

9043012022

main90430-12022

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
