SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1COWL RH 0005 1COWL LH 0006 1COMBINATION SWITCH 0007 1ROOF,FRONT DOOR,FRONT SEAT & 0008 1REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iJZS147199301-199708

NIPPONDENSO

main83420-20030iJZS147199301-199708

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iJZS147199301-199708

NIPPONDENSO

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS147199308-199708

MATSUSHITA

main84540-30270iJZS147199301-199708

TOKAIRIKA

main84540-30280iJZS147199301-199308

MATSUSHITA

sub84540-30270

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJZS147199301-199708

89437COVER, SENSOR

main89437-30030iJZS147..USA199301-199408

CALIFORNIA SPEC

main89437-30030iJZS147199408-199708

89465SENSOR, OXYGEN

main89465-20430iJZS147199508-199708

FRONT

main89465-30180iJZS147..USA199301-199408

CALIFORNIA SPEC,FRONT

main89465-30180iJZS147199408-199508

FRONT

main89465-30190iJZS147199408-199508

REAR

main89465-30190iJZS147..USA199301-199408

CALIFORNIA SPEC,REAR

main89465-30360iJZS147199508-199708

REAR

main89465-39675iJZS147199301-199408

REAR

main89465-39695iJZS147199301-199408

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020iJZS147199301-199408

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS147199301-199708

89615SENSOR, KNOCK CONTROL

main89615-22030iJZS147199301-199708

MATSUSHITA

main89615-22040iJZS147199301-199708

DENSO

9011906430

main90119-06430

9011906527

main90119-06527

9017908059

main90179-08059

9043027001

main90430-27001

9095001060

main90950-01060

9165140830

main91651-40830

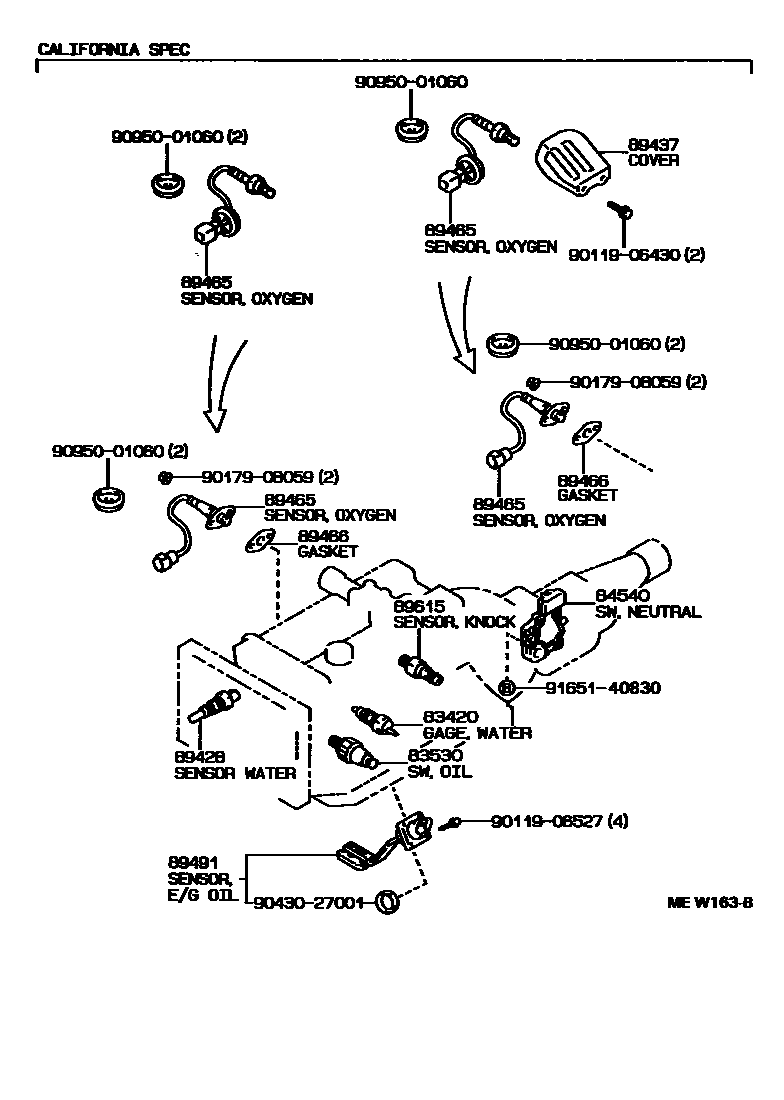

15 parts on this diagram · 8 diagrams in section
