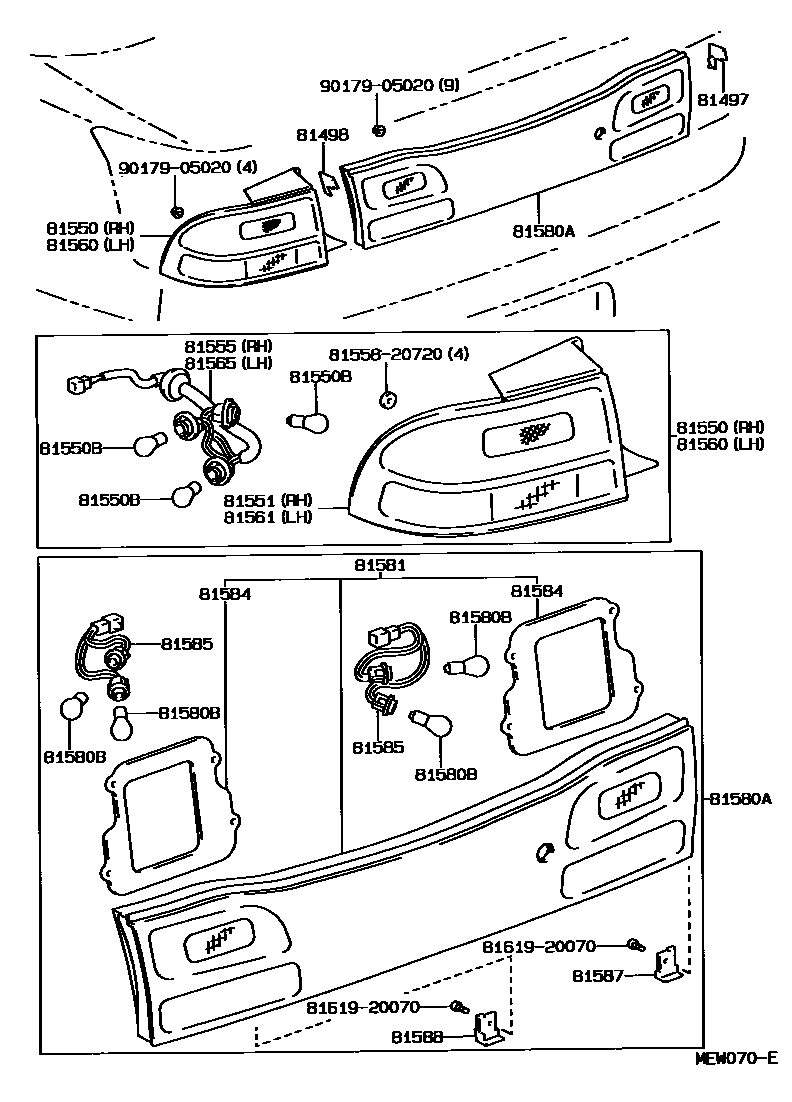

REAR COMBINATION LAMP

81497COVER, REAR COMBINATION LAMP, RH

main81497-30040iJZS147199301-199708

81498COVER, REAR COMBINATION LAMP, LH

main81498-30040iJZS147199301-199708

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30670iJZS147199301-199508

sub81551-30670

main81550-30790iJZS147199508-199708

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270iJZS147199301-199708

12V 27W

main99132-21270iJZS147199301-199708

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-30670iJZS147199301-199508

main81551-30790iJZS147199508-199708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30630iJZS147199301-199308

main81555-30670iJZS147199308-199508

main81555-30730iJZS147199508-199708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30670iJZS147199301-199508

sub81561-30670

main81560-30760iJZS147199508-199708

81561LENS, REAR COMBINATION LAMP, LH

main81561-30670iJZS147199301-199508

main81561-30760iJZS147199508-199708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-30630iJZS147199301-199308

main81555-30670iJZS147199308-199508

main81555-30730iJZS147199508-199708

81580ALAMP ASSY, REAR

main81580-30050iJZS147199301-199508

main81580-30140-A0iJZS147199508-199708

SU. WHITE PM,051

sub81580-30140

main81580-30140-B0iJZS147199508-199708

SILVER ME,199

sub81580-30140

main81580-30140-C0iJZS147199508-199708

BLACK,202

sub81580-30140

main81580-30140-D0iJZS147199508-199708

MAGENTA MC.,3L3

sub81580-30140

main81580-30140-E0iJZS147199508-199708

BEIGE ME.,4M9

sub81580-30140

main81580-30140-G0iJZS147199508-199708

GRAYISH GREEN M.M,6N0

sub81580-30140

main81580-30140-G1iJZS147199508-199708

DK.GREEN MC.P.I.O,6N9

sub81580-30140

main81580-30140-J0iJZS147199508-199708

DK.BLUE MC,8L1

sub81580-30140

81580BBULB (FOR REAR LAMP)

main99132-11270iJZS147199301-199708

12V 27W

main99132-21270iJZS147199301-199708

12V 27/8W

81581LENS, REAR LAMP

main81581-30050iJZS147199301-199508

main81581-30140-A0iJZS147199508-199708

SU.WHITE PM,051

sub81581-30140

main81581-30140-B0iJZS147199508-199708

SILVER ME,199

sub81581-30140

main81581-30140-C0iJZS147199508-199708

BLACK,202

sub81581-30140

main81581-30140-D0iJZS147199508-199708

MAGENTA MC,3L3

sub81581-30140

main81581-30140-E0iJZS147199508-199708

BEIGE ME,4M9

sub81581-30140

main81581-30140-G0iJZS147199508-199708

GRAYISH GREEN M.M,6N0

sub81581-30140

main81581-30140-G1iJZS147199508-199708

DK.GREEN MC.P.I.O,6N9

sub81581-30140

main81581-30140-J0iJZS147199508-199708

DK.BLUE MC,8L1

sub81581-30140

81584PACKING, REAR LAMP RH

main81584-30030iJZS147199301-199508

81585SOCKET & WIRE, REAR LAMP

main81585-30030iJZS147199301-199308

RH

main81585-30050iJZS147199308-199708

RH

main81586-30030iJZS147199301-199308

LH

main81586-30050iJZS147199308-199708

LH

81587PROTECTOR, REAR LAMP, RH

main81587-30030iJZS147199301-199708

81588PROTECTOR, REAR LAMP, LH

main81588-30030iJZS147199301-199708

8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-20720

8161920070

main81619-20070

9017905020

main90179-05020

19 parts on this diagram · 1 diagram in section
