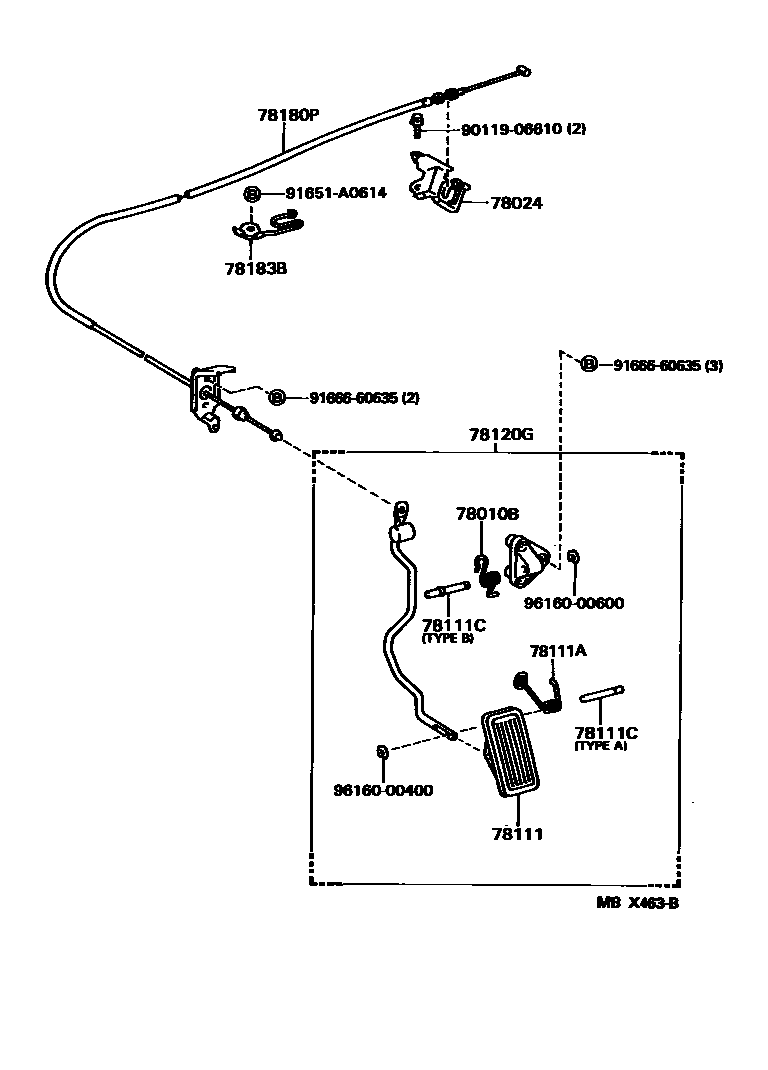

ACCELERATOR LINK

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18103iJZS147199301-199708

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-24030iJZS147199301-199512

sub78024-24031

main78024-24031iJZS147199512-199708

78111PEDAL, ACCELERATOR

main78111-12100iJZS147199301-199708

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18071iJZS147199301-199408

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZS147199301-199708

TYPE A

main90249-08116iJZS147199301-199708

TYPE B

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30780iJZS147199301-199408

sub78120-30800

main78120-30800iJZS147199408-199708

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A470iJZS147199301-199708

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-24030iJZS147199301-199708

9011906610

main90119-06610

91651A0614

main91651-A0614

9166660635

main91666-60635

9616000400

main96160-00400

9616000600

main96160-00600

13 parts on this diagram · 1 diagram in section
