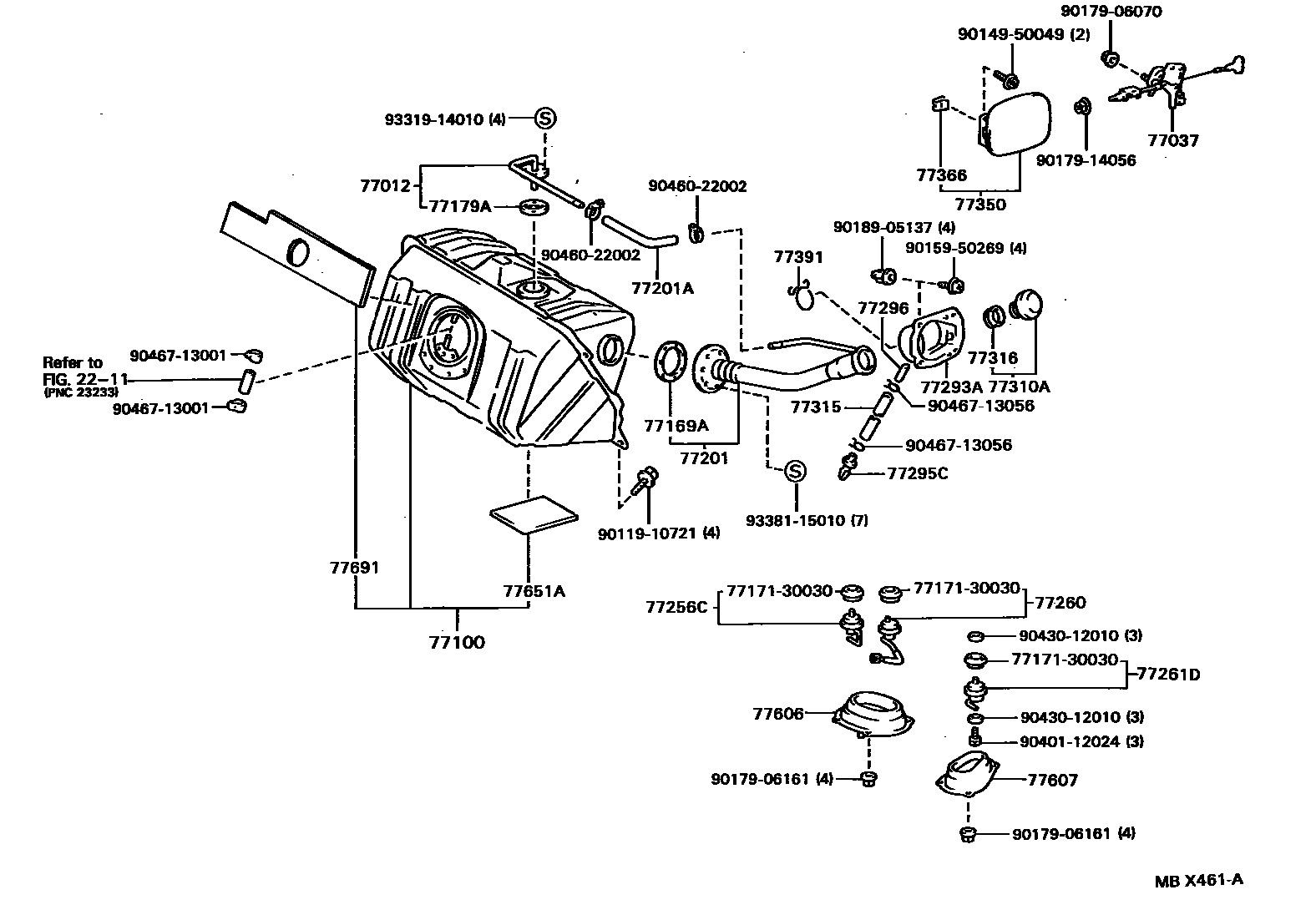

FUEL TANK & TUBE
2211
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=260
77256CTUBE, FUEL RETURN, NO.2
77260HOSE ASSY, FUEL MAIN
77261DTUBE, FUEL TANK TO CANISTER
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77295CGROMMET, FUEL TUBE
77296PLATE, FUEL TUBE GROMMET SUPPORT
77310ACAP ASSY, FUEL TANK
77315HOSE, FUEL FILLER OPENING
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77391RING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH
77651ACUSHION, FUEL TANK, NO.1
77691SHEET, FUEL TANK SILENCER, UPPER NO.1
7717130030GASKET, FUEL TANK TUBE, NO.1
main77171-30030
9011910721
main90119-10721
9014950049
main90149-50049
9015950269
main90159-50269
9017906070
main90179-06070
9017906161
main90179-06161
9017914056
main90179-14056
9018905137
main90189-05137
9040112024
main90401-12024
9043012010
main90430-12010
9046022002
main90460-22002
9046713001
main90467-13001
9046713056
main90467-13056
9331914010
main93319-14010
9338115010
main93381-15010
39 parts on this diagram · 2 diagrams in section
