SEAT BELT & CHILD RESTRAINT SEAT

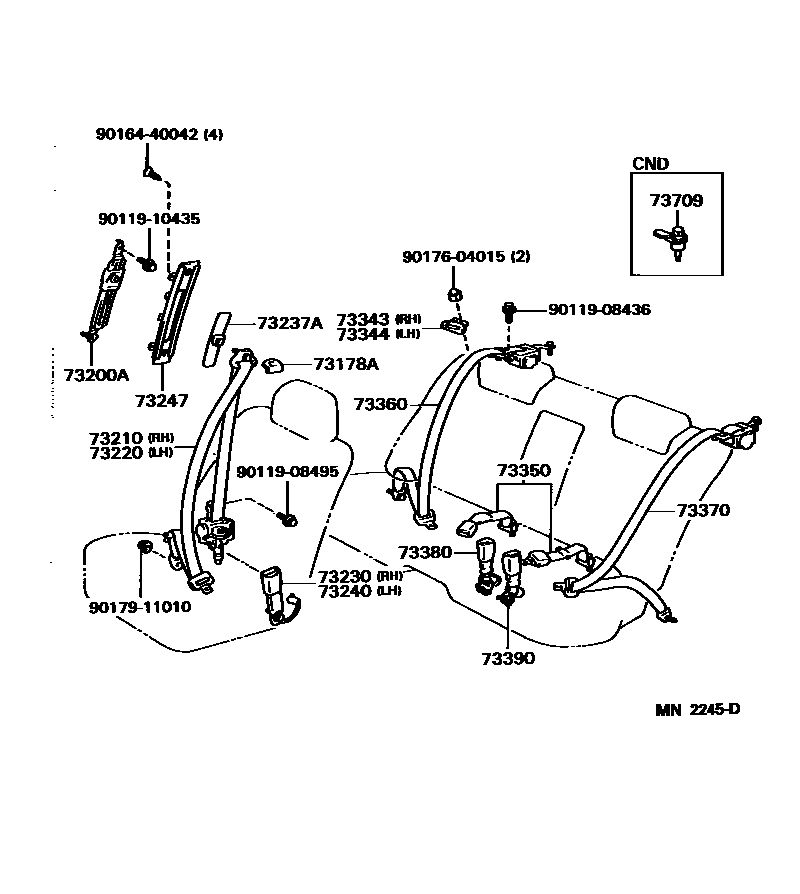

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-30020-A0i199301-199708
IVORY,TRIM0#
sub73178-30020
main73178-30020-B0i199301-199708
LI.GRAY,TRIM1#
sub73178-30020
main73178-30020-G0i199301-199708
LI.SPRUCE,TRIM6#
sub73178-30020
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30050i199301-199411
sub73200-30053
sub90119-08901
main73200-30052i199411-199607
main73200-30053i199607-199708
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30580-A0i199301-199401
IVORY,TRIM0#
sub73210-30580
main73210-30580-B0i199301-199401
GRAY,TRIM1#
sub73210-30580
main73210-30580-G0i199301-199401
LI.SPRUCE,TRIM6#
sub73210-30580
main73210-30582-A0i199401-199408
IVORY,TRIM0#
sub73210-30583
main73210-30582-B0i199401-199408
MD.GRAY,TRIM1#
sub73210-30583
main73210-30582-B3i199408-199502
BLUISH GRAY,TRIM1#
sub73210-30583
main73210-30582-E0i199408-199502
MD.OAK,TRIM0#
sub73210-30583
main73210-30582-G0i199401-199408
SPRUCE,TRIM6#
sub73210-30583
main73210-30582-G2i199408-199502
DK.SPRUCE GRAY,TRIM6#
sub73210-30583
main73210-30583-B4i199502-199508
BLUISH GRAY,TRIM1#
sub73210-30582
main73210-30583-E1i199502-199508
MD.OAK,TRIM0#
sub73210-30582
main73210-30583-G3i199502-199508
DK.SPRUCEGRAY,TRIM6#
sub73210-30582
main73210-30710-B0i199508-199708
MD.GRAY,TRIM1#
main73210-30710-E0i199508-199708
IVORY,TRIM0#
main73210-30710-G0i199508-199708
SPRUCE,TRIM6#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30480-A0i199301-199401
IVORY,TRIM0#
sub73220-30480
main73220-30480-B0i199301-199401
GRAY,TRIM1#
sub73220-30480
main73220-30480-G0i199301-199401
LI.SPRUCE,TRIM6#
sub73220-30480
main73220-30482-A0i199401-199408
IVORY,TRIM0#
sub73220-30483
main73220-30482-B0i199401-199408
MD.GRAY,TRIM1#
sub73220-30483
main73220-30482-B3i199408-199502
BLUISH GRAY,TRIM1#
sub73220-30483
main73220-30482-E0i199408-199502
MD.OAK,TRIM0#
sub73220-30483
main73220-30482-G0i199401-199408
SPRUCE,TRIM6#
sub73220-30483
main73220-30482-G2i199408-199502
DK.SPRUCE GRAY,TRIM6#
sub73220-30483
main73220-30483-B4i199502-199508
BLUISH GRAY,TRIM1#
sub73220-30483
main73220-30483-E1i199502-199508
MD.OAK,TRIM0#
sub73220-30483
main73220-30483-G3i199502-199508
DK.SPRUCEGRAY,TRIM6#
sub73220-30483
main73220-30660-B0i199508-199708
MD.GRAY,TRIM1#
sub73220-30660
main73220-30660-E0i199508-199708
IVORY,TRIM0#
sub73220-30660
main73220-30660-G0i199508-199708
SPRUCE,TRIM6#
sub73220-30660
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30660-A0i199301-199312
IVORY,TRIM0#
main73230-30660-B0i199301-199312
GRAY,TRIM1#
main73230-30660-G0i199301-199312
LI.SPRUCE,TRIM6#
main73230-30661-A0i199312-199408
IVORY,TRIM0#
main73230-30661-B0i199312-199408
MD.GRAY,TRIM1#
main73230-30661-B3i199408-199508
BLUISH GRAY,TRIM1#
main73230-30661-E0i199408-199508
MD.OAK,TRIM0#
main73230-30661-G0i199312-199408
SPRUCE,TRIM6#
main73230-30661-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73230-30662-B3i199508-199708
BLUISH GRAY,TRIM1#
main73230-30662-E0i199508-199708
MD.OAK,TRIM0#
main73230-30662-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73237ACOVER, SHOULDER BELT ANCHOR
main73135-30020-A0i199301-199708
IVORY,TRIM0#
sub73135-30020
main73135-30020-B0i199301-199708
LI.GRAY,TRIM1#
sub73135-30020
main73135-30020-G0i199301-199708
LI.SPRUCE,TRIM6#
sub73135-30020
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-30192-A0i199301-199312
IVORY,TRIM0#
main73240-30192-B0i199301-199312
GRAY,TRIM1#
main73240-30192-G0i199301-199312
LI.SPRUCE,TRIM6#
main73240-30193-A0i199312-199408
IVORY,TRIM0#
main73240-30193-B0i199312-199408
MD.GRAY,TRIM1#
main73240-30193-B2i199408-199508
BLUISH GRAY,TRIM1#
main73240-30193-E2i199408-199508
MD.OAK,TRIM0#
main73240-30193-G0i199312-199408
SPRUCE,TRIM6#
main73240-30193-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73240-30194-B2i199508-199708
BLUISH GRAY,TRIM1#
main73240-30194-E2i199508-199708
MD.OAK,TRIM0#
main73240-30194-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73247RETAINER, SHOULDER BELT ANCHOR
main73247-30010i199301-199708
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-30020-A0i199301-199308
IVORY,TRIM0#
main73343-30020-B0i199301-199308
GRAY,TRIM1#
main73343-30020-G0i199301-199308
LI.SPRUCE,TRIM6#
main73343-30050-A0i199308-199408
IVORY,TRIM0#
main73343-30050-B0i199308-199408
GRAY,TRIM1#
main73343-30050-B1i199408-199508
SHADOW GRAY,TRIM1#
main73343-30050-E2i199408-199508
MD.OAK,TRIM0#
main73343-30050-G0i199308-199408
LI.SPRUCE,TRIM6#
main73343-30050-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73343-50020-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73343-50020
main73343-50020-E1i199508-199708
MD.OAK,TRIM0#
sub73343-50020
main73343-50020-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73343-50020
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-30010-A0i199301-199308
IVORY,TRIM0#
main73344-30010-B0i199301-199308
GRAY,TRIM1#
main73344-30010-G0i199301-199308
LI.SPRUCE,TRIM6#
main73344-30040-A0i199308-199408
IVORY,TRIM0#
main73344-30040-B0i199308-199408
GRAY,TRIM1#
main73344-30040-B1i199408-199508
SHADOW GRAY,TRIM1#
main73344-30040-E2i199408-199508
MD.OAK,TRIM0#
main73344-30040-G0i199308-199408
LI.SPRUCE,TRIM6#
main73344-30040-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73344-50010-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73344-50010
main73344-50010-E1i199508-199708
MD.OAK,TRIM0#
sub73344-50010
main73344-50010-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73344-50010
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-30150-A0i199301-199408
IVORY,TRIM0#
main73350-30150-B0i199301-199408
GRAY,TRIM1#
main73350-30150-B2i199408-199508
SHADOW GRAY,TRIM1#
main73350-30150-E0i199408-199508
MD.OAK,TRIM0#
main73350-30150-G0i199301-199408
GRAY,TRIM6#
main73350-30150-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73350-30151-B2i199508-199708
MD.GRAY,TRIM1#
main73350-30151-E0i199508-199708
IVORY,TRIM0#
main73350-30151-G1i199508-199708
SPRUCE,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-30240-A0i199301-199408
IVORY,TRIM0#
main73360-30240-B0i199301-199408
GRAY,TRIM1#
main73360-30240-B2i199408-199508
SHADOW GRAY,TRIM1#
main73360-30240-E0i199408-199508
MD.OAK,TRIM0#
main73360-30240-G0i199301-199408
LI.SPRUCE,TRIM6#
main73360-30240-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73360-30290-B0i199508-199708
BLUISH GRAY,TRIM1#
main73360-30290-E0i199508-199708
MD.OAK,TRIM0#
main73360-30290-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-30180-A0i199301-199408
IVORY,TRIM0#
main73370-30180-B0i199301-199408
GRAY,TRIM1#
main73370-30180-B2i199408-199508
SHADOW GRAY,TRIM1#
main73370-30180-E0i199408-199508
MD.OAK,TRIM0#
main73370-30180-G0i199301-199408
LI.SPRUCE,TRIM6#
main73370-30180-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73370-30200-B0i199508-199708
BLUISH GRAY,TRIM1#
main73370-30200-E0i199508-199708
MD.OAK,TRIM0#
main73370-30200-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-30260-A0i199301-199312
IVORY,TRIM0#
main73380-30260-B0i199301-199312
GRAY,TRIM1#
main73380-30260-G0i199301-199312
LI.SPRUCE,TRIM6#
main73380-30261-A0i199312-199408
IVORY,TRIM0#
sub73380-30261
main73380-30261-B0i199312-199408
MD.GRAY,TRIM1#
sub73380-30261
main73380-30261-B2i199408-199508
SHADOW GRAY,TRIM1#
sub73380-30261
main73380-30261-E0i199408-199508
MD.OAK,TRIM0#
sub73380-30261
main73380-30261-G0i199312-199408
SPRUCE,TRIM6#
sub73380-30261
main73380-30261-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73380-30261
main73380-30262-B2i199508-199708
BLUISH GRAY,TRIM1#
main73380-30262-E0i199508-199708
MD.OAK,TRIM0#
main73380-30262-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-30110-A0i199301-199312
IVORY,TRIM0#
main73480-30110-B0i199301-199312
GRAY,TRIM1#
main73480-30110-G0i199301-199312
LI.SPRUCE,TRIM6#
main73480-30111-A0i199312-199408
IVORY,TRIM0#
main73480-30111-B0i199312-199408
MD.GRAY,TRIM1#
main73480-30111-B2i199408-199508
SHADOW GRAY,TRIM1#
main73480-30111-E0i199408-199508
MD.OAK,TRIM0#
main73480-30111-G0i199312-199408
SPRUCE,TRIM6#
main73480-30111-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73480-30112-B2i199508-199708
BLUISH GRAY,TRIM1#
main73480-30112-E0i199508-199708
MD.OAK,TRIM0#
main73480-30112-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73709-20010i199301-199708
9011908436
main90119-08436
9011908495
main90119-08495
9011910435
main90119-10435
9016440042
main90164-40042
9017604015
main90176-04015
9017911010
main90179-11010

22 parts on this diagram · 1 diagram in section
