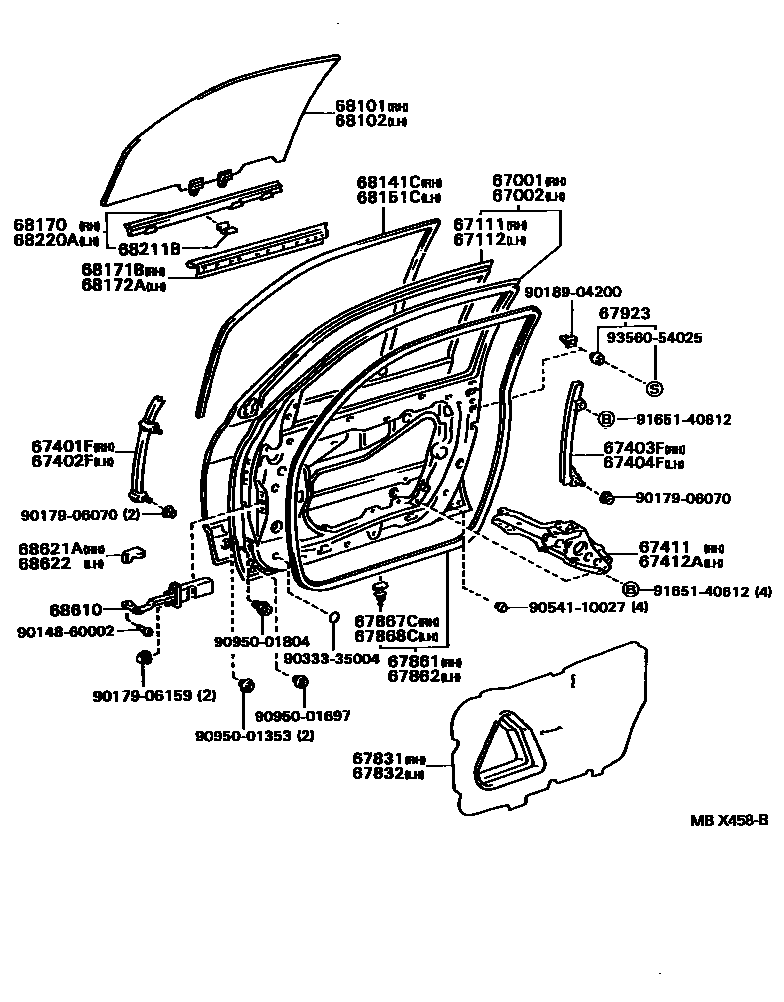

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
sub67867-30060
67923CUSHION, FRONT DOOR STIFFENER, NO.1
sub67923-24030
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0,GRAY
*TEM,T=4.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,BRONZE
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68610CHECK ASSY, FRONT DOOR
RH
LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
9014860002
main90148-60002
9017906070
main90179-06070
9017906159
main90179-06159
9018904200
main90189-04200
9033335004
main90333-35004
9054110027
main90541-10027
9095001353
main90950-01353
9095001697
main90950-01697
9095001804
main90950-01804
9165140612
main91651-40612
9356054025
main93560-54025
40 parts on this diagram · 4 diagrams in section
