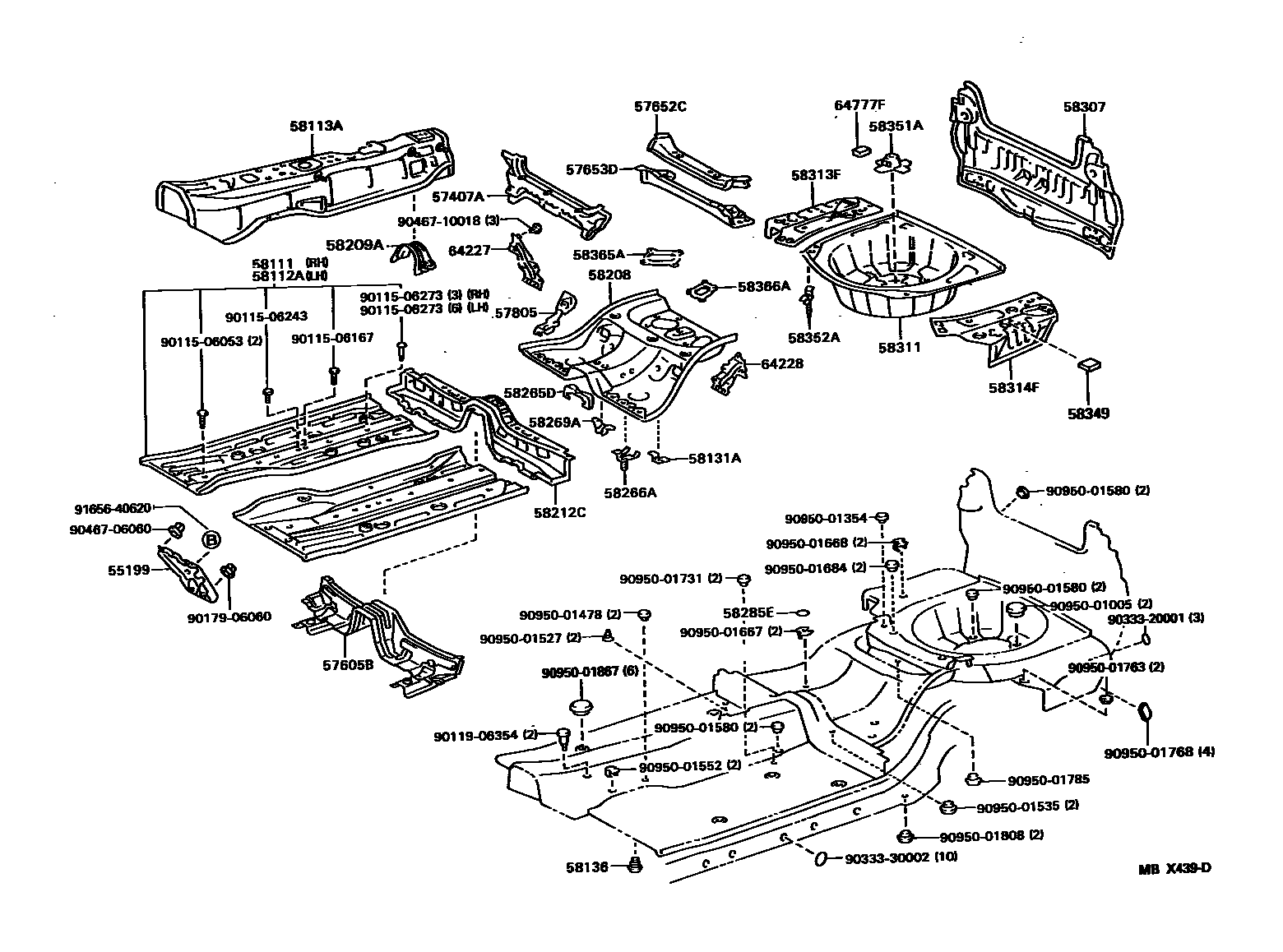

FLOOR PAN & LOWER BACK PANEL

55199COVER, DASH PANEL COMPUTER

main55199-30030iJZS147199301-199708

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-30080iJZS147199301-199708

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-30040iJZS147199301-199708

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30901iJZS147199301-199708

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-30900iJZS147199301-199708

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-30010iJZS147199301-199708

RH

main57806-30010iJZS147199301-199708

LH

58111PAN, FRONT FLOOR

main58111-30900iJZS147199301-199508

sub58111-30905

main58111-30905iJZS147199508-199708

58112APANEL, FRONT FLOOR, LH

main58112-30900iJZS147199301-199508

sub58112-30905

main58112-30905iJZS147199508-199708

58113APANEL, FRONT FLOOR, CENTER

main58014-30030iJZS147199301-199508

sub58014-30031

sub33555-30290

main58014-30031iJZS147199508-199609

sub58014-30032

sub90950-06001

main58014-30032iJZS147199609-199708

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-24010iJZS147199301-199708

58136COVER, FRONT FLOOR HOLE

main58136-30020iJZS147199301-199708

58208PAN, CENTER FLOOR

main58211-30901iJZS147199301-199708

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-50010iJZS147199301-199708

58212CPAN, CENTER FLOOR, FRONT

main58202-30100iJZS147199508-199708

main58212-30050iJZS147199301-199508

sub58202-30100

58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2

main58265-30040iJZS147199301-199708

58266ABRACKET, FUEL TUBE CLAMP

main58266-30070iJZS147199301-199708

58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3

main58269-30120iJZS147199301-199708

58285ECOVER, CENTER FLOOR HOLE

main58285-50010iJZS147199301-199708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30640iJZS147199301-199708

58311PAN, REAR FLOOR

main58311-24020iJZS147199301-199708

sub58311-24021

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main57603-30900iJZS147199301-199512

sub57603-30901

sub90119-12247

main57603-30901iJZS147199512-199708

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main57604-30900iJZS147199301-199708

58349CUSHION, REAR FLOOR SIDE

main58349-30010iJZS147199508-199708

58351ABRACKET, SPARE WHEEL CARRIER

main58351-50010iJZS147199301-199708

58352ABRACKET, REAR FLOOR STAY

main58352-24010iJZS147199301-199708

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-30040iJZS147199301-199708

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-30040iJZS147199301-199708

64227EXTENSION, CENTER FLOOR TO BRACE

main64227-30050iJZS147199301-199708

64228EXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30030iJZS147199301-199708

64777FCUSHION, SPARE WHEEL

main64777-24040iJZS147199301-199708

9011506053

main90115-06053

9011506167

main90115-06167

9011506243

main90115-06243

9011506273

main90115-06273

9011906354

main90119-06354

9017906060

main90179-06060

9033320001

main90333-20001

9033330002

main90333-30002

9046706060

main90467-06060

9046710018

main90467-10018

9095001005

main90950-01005

9095001354

main90950-01354

9095001478

main90950-01478

9095001527

main90950-01527

9095001535

main90950-01535

9095001552

main90950-01552

9095001580

main90950-01580

9095001667

main90950-01667

9095001668

main90950-01668

9095001684

main90950-01684

9095001731

main90950-01731

9095001763

main90950-01763

9095001768

main90950-01768

9095001785

main90950-01785

9095001808

main90950-01808

9095001867

main90950-01867

9165640620

main91656-40620

57 parts on this diagram · 1 diagram in section
