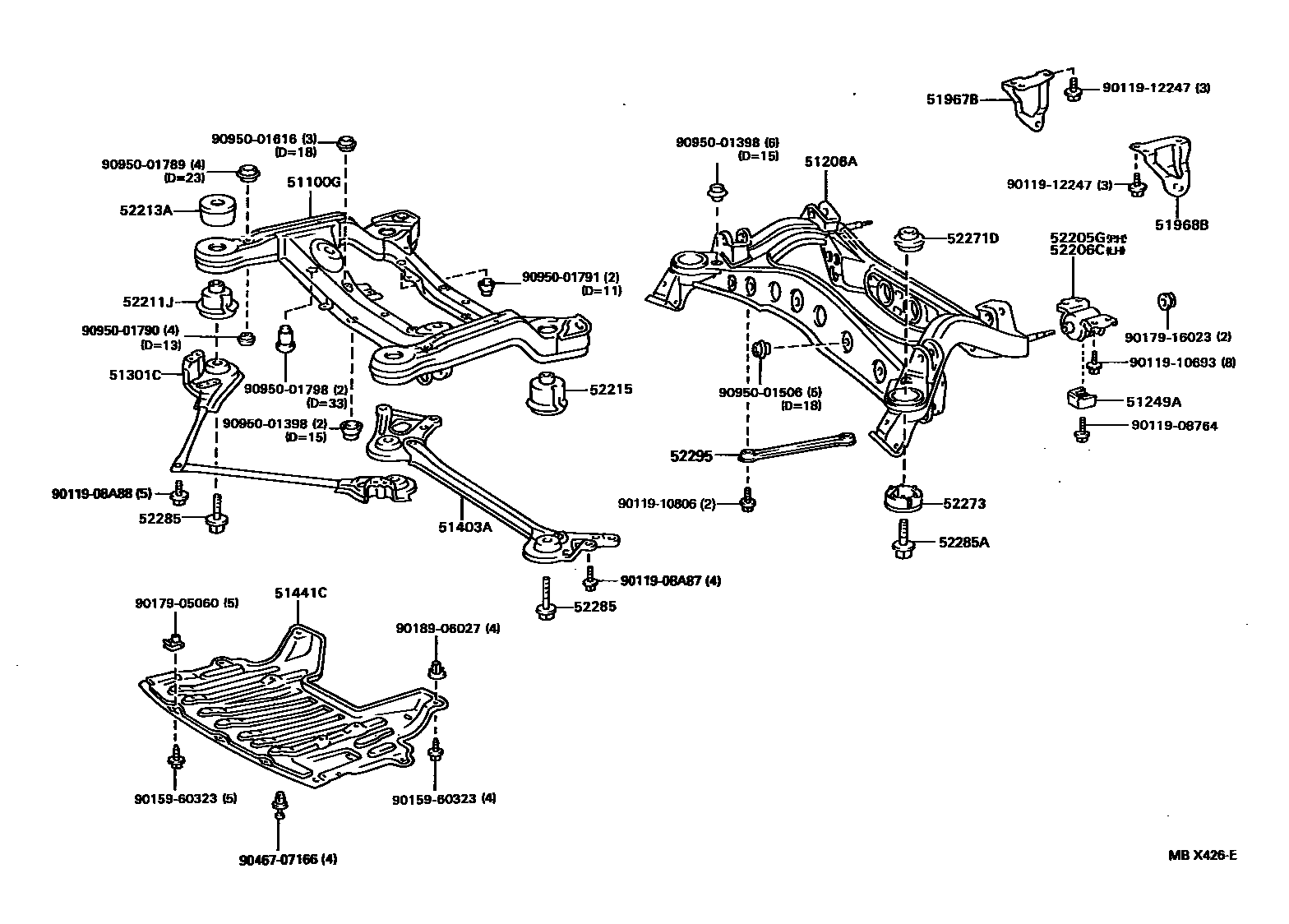

SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51249ADAMPER, REAR SUSPENSION MEMBER
51301CROD SUB-ASSY, FRONT FRAME
51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51441CCOVER, ENGINE UNDER, RH
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
FRONT
REAR
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52295BRACE, REAR SUSPENSION MEMBER, RH
9011908764
main90119-08764
9011908A87
main90119-08A87
9011908A88
main90119-08A88
9011910693
main90119-10693
9011910806
main90119-10806
9011912247
main90119-12247
9015960323
main90159-60323
9017905060
main90179-05060
9017916023
main90179-16023
9018906027
main90189-06027
9046707166
main90467-07166
9095001398
main90950-01398
9095001506
main90950-01506
9095001616
main90950-01616
9095001789
main90950-01789
9095001790
main90950-01790
9095001791
main90950-01791
9095001798
main90950-01798
36 parts on this diagram · 1 diagram in section
