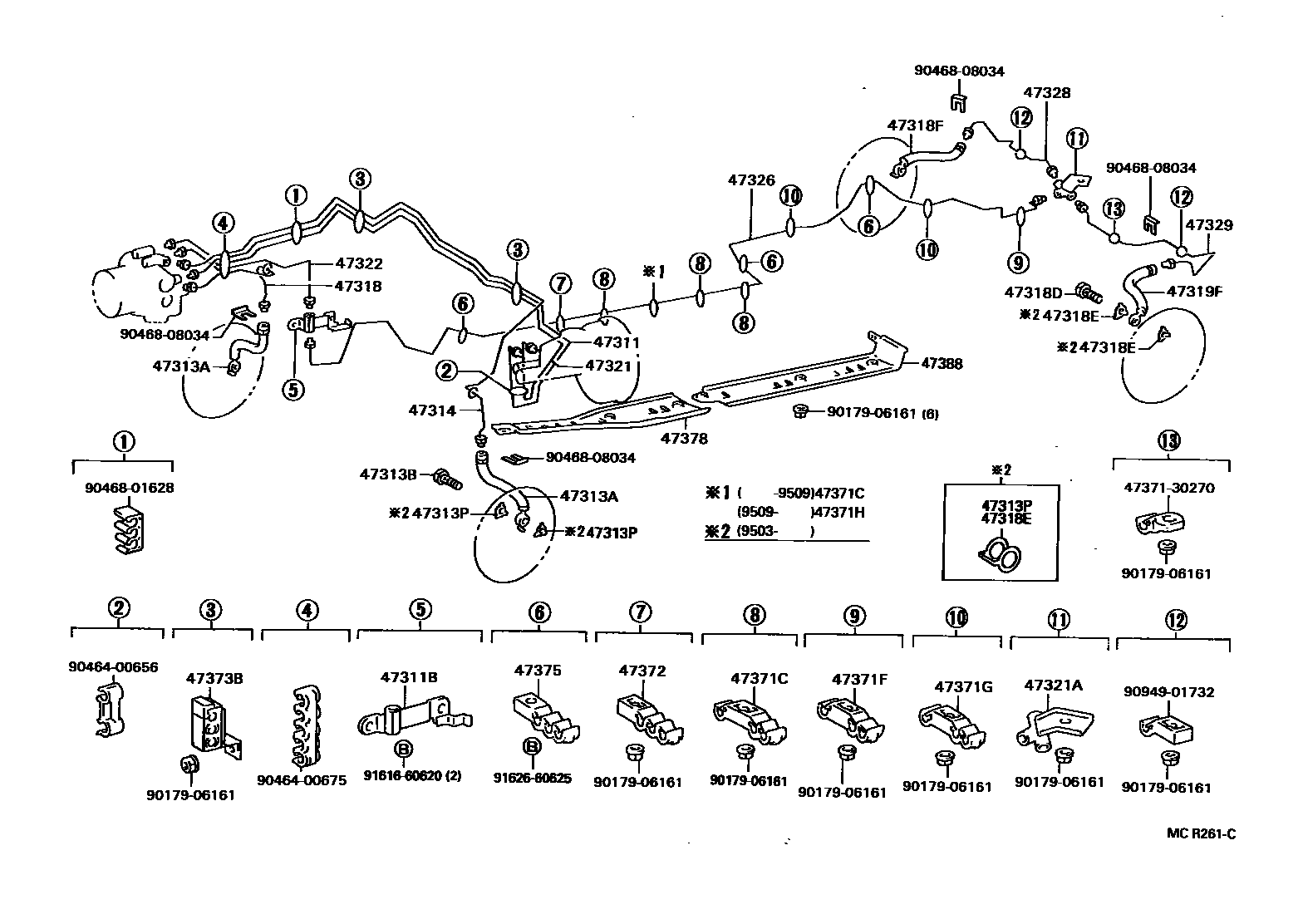

BRAKE TUBE & CLAMP

0001 1W(ANTI-LOCK BRAKING SYSTEM) 0002 1W(TRACTION CONTROL) 0003 1W(ANTI-LOCK BRAKING SYSTEM) 0004 1W(TRACTION CONTROL)

47311TUBE, FRONT BRAKE, NO.1

main47311-30480iJZS147..USA199301-199708

main47311-30490iJZS147..USA199301-199708

W(*TRC)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10188iJZS147..USA199301-199708

main90412-10189iJZS147199301-199708

W(*TRC)

47313TUBE, FRONT BRAKE, NO.3

main47313-30260iJZS147199301-199708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02674iJZS147199301-199508

sub90947-02837

main90947-02837iJZS147199508-199708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10044iJZS147199301-199409

main90401-10058iJZS147199409-199708

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iJZS147199301-199503

main47389-50020iJZS147199503-199708

47314TUBE, FRONT BRAKE, NO.4

main47314-30290iJZS147..USA199301-199708

main47314-30300iJZS147199301-199708

W(*TRC)

47318TUBE, FRONT BRAKE, NO.8

main47313-30250iJZS147199301-199708

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10044iJZS147199301-199409

main90401-10058iJZS147199409-199708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010iJZS147199301-199503

main47389-50020iJZS147199503-199708

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02672iJZS147199301-199508

sub90947-02839

main90947-02839iJZS147199508-199708

47319TUBE, FRONT BRAKE, NO.9

main44551-30060iJZS147199301-199708

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02672iJZS147199301-199508

sub90947-02839

main90947-02839iJZS147199508-199708

47321TUBE, REAR BRAKE, NO.1

main47321-30200iJZS147..USA199301-199708

main47321-30210iJZS147199301-199708

W(*TRC)

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10265iJZS147..USA199301-199708

47322TUBE, REAR BRAKE, NO.2

main47322-30150iJZS147..USA199301-199708

main47322-30160iJZS147..CND199301-199708

W(*TRC)

47326TUBE, REAR BRAKE, NO.6

main47326-30030iJZS147..CND199301-199508

W(*TRC)

sub47326-30070

main47326-30040iJZS147..USA199301-199508

sub47326-30080

main47326-30070iJZS147..CND199508-199605

W(*TRC)

main47326-30080iJZS147..USA199508-199708

main47326-30090iJZS147..CND199605-199708

W(*TRC)

47328TUBE, REAR BRAKE, NO.8

main47328-30010iJZS147199301-199708

47329TUBE, REAR BRAKE, NO.9

main47329-30040iJZS147199301-199708

47371CCLAMP, BRAKE TUBE, NO.7

main47371-50060iJZS147..4FC;JZS147..5FC..CND199301-199708

main47371-50060iJZS147..USA199508-199509

W(*TRC)

47371FCLAMP, BRAKE TUBE, NO.10

main47371-30180iJZS147..USA199508-199708

main47371-30260iJZS147..USA199301-199508

47371GCLAMP, BRAKE TUBE, NO.11

main47371-30160iJZS147199301-199708

47371HCLAMP, BRAKE TUBE, NO.12

main47371-30260iJZS147..USA199509-199708

47372CLAMP, BRAKE TUBE, NO.2

main47371-30170iJZS147199301-199708

47373BCLAMP, BRAKE TUBE, NO.3

main47371-30330iJZS147199301-199708

main47371-30340iJZS147..USA199301-199708

W(*TRC)

47375CLAMP, BRAKE TUBE, NO.5

main47371-30200iJZS147..USA199508-199708

W(*TRC)

main47371-30200iJZS147..4FC;JZS147..5FC..CND199301-199708

47378PROTECTOR, BRAKE TUBE

main47378-30010iJZS147199301-199708

47388PROTECTOR, BRAKE TUBE, LOWER

main47388-30010iJZS147199301-199708

4737130270BRACKET, CONNECTOR

main47371-30270

9017906161

main90179-06161

9046400656

main90464-00656

9046400675

main90464-00675

9046801628

main90468-01628

9046808034

main90468-08034

9094901732

main90949-01732

9161660620

main91616-60620

9162660625

main91626-60625

37 parts on this diagram · 4 diagrams in section
