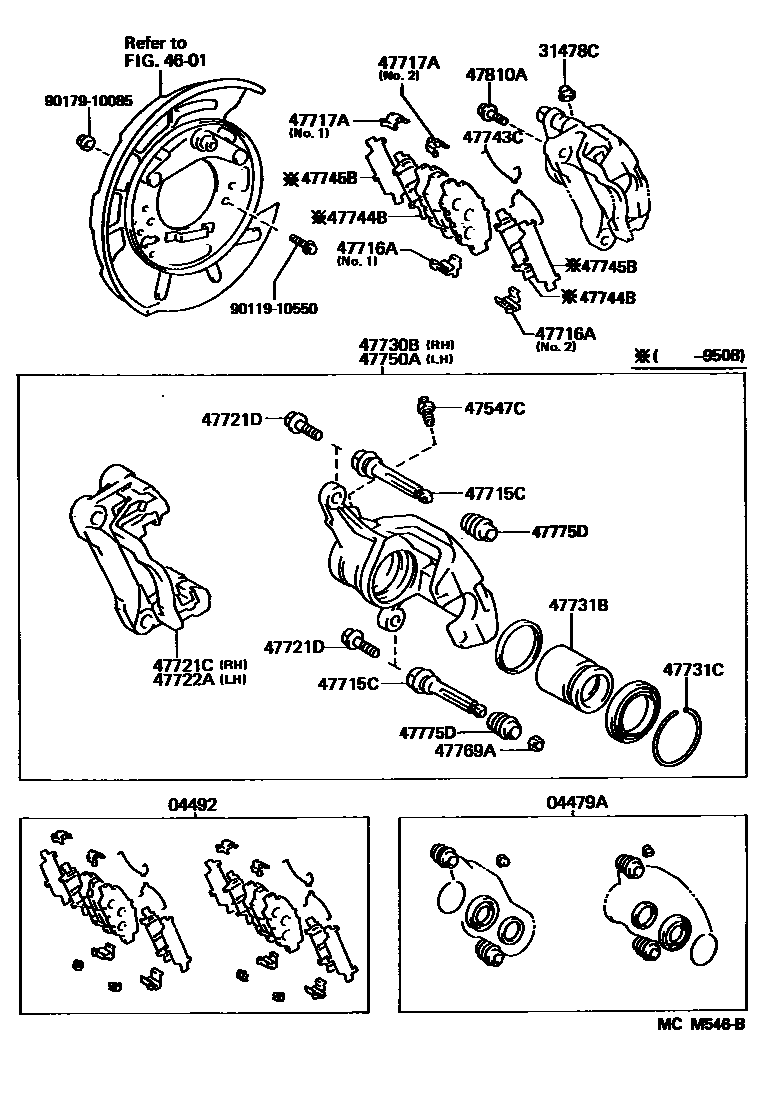

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30140iJZS147199301-199503

sub04479-30141

main04479-30141iJZS147199503-199508

main04479-30170iJZS147199508-199708

04492PAD KIT, DISC BRAKE, REAR

main04492-30140iJZS147199301-199302

sub04492-50040

main04492-50040iJZS147199302-199505

sub04466-30030

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJZS147199301-199708

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJZS147199301-199708

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22070iJZS147199509-199708

SUB PIN SIDE

main47715-22080iJZS147199509-199708

MAIN PIN SIDE

main47715-50010iJZS147199301-199509

SUB PIN SIDE

main47715-50030iJZS147199301-199509

MAIN PIN SIDE

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30200iJZS147199509-199708

INNER

main47716-30210iJZS147199509-199708

OUTER

main47716-50020iJZS147199301-199509

INNER

main47716-50040iJZS147199301-199509

OUTER

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-30090iJZS147199509-199708

INNER

main47717-30100iJZS147199509-199708

OUTER

main47717-50020iJZS147199301-199509

INNER

main47717-50040iJZS147199301-199509

OUTER

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-24060iJZS147199301-199708

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iJZS147199301-199708

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-24060iJZS147199301-199708

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30270iJZS147199301-199508

main47730-30380iJZS147199508-199708

47731BPISTON, REAR DISC BRAKE

main47731-30150iJZS147199509-199708

main47731-50040iJZS147199301-199508

main47731-50050iJZS147199508-199509

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iJZS147199509-199708

main90522-50002iJZS147199301-199509

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020iJZS147199301-199708

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-24020iJZS147199301-199508

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-24020iJZS147199301-199508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30270iJZS147199301-199508

main47750-30380iJZS147199508-199708

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iJZS147199301-199708

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070iJZS147199509-199708

sub47775-50010

main47775-50010iJZS147199301-199509

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZS147199301-199708

9011910550

main90119-10550

9017910085

main90179-10085

23 parts on this diagram · 2 diagrams in section
