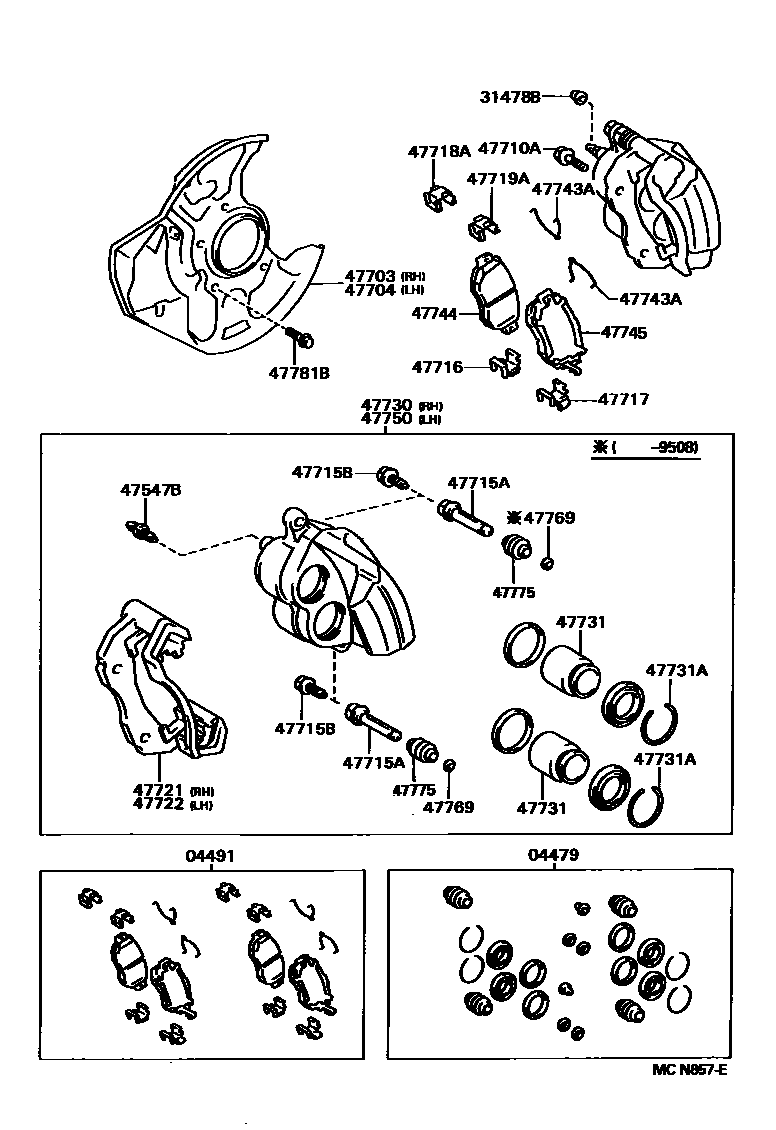

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30120i199301-199503

main04479-30121i199503-199508

main04479-30190i199508-199708

sub04479-30191

04491PAD KIT, DISC BRAKE, FRONT

main04491-30330i199301-199304

sub04491-50120

main04491-50120i199304-199411

sub04491-50121

main04491-50180i199411-199505

sub04465-50040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i199301-199708

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030i199301-199708

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-30150i199301-199508

sub47781-30191

sub90148-60028

main47781-30190i199508-199609

sub47781-30191

sub90148-60028

main47781-30191i199609-199708

sub47781-30210

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-30150i199301-199508

sub47782-30191

sub90148-60028

main47782-30190i199508-199609

sub47782-30191

sub90148-60028

main47782-30191i199609-199708

sub47782-30210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228i199301-199708

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070i199509-199708

SUB PIN SIDE

main47715-30060i199509-199708

MAIN PIN SIDE

main47715-50010i199508-199509

SUB PIN SIDE

main47715-50020i199301-199508

main47715-50030i199508-199509

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164i199301-199708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010i199303-199708

main47716-30080i199301-199303

sub47716-24010

sub47716-50050

main47716-50050i199304-199411

sub47716-50051

main47716-50051i199411-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020i199303-199708

main47716-30090i199301-199303

sub47716-24020

sub47716-50060

main47716-50060i199304-199411

sub47716-50061

main47716-50061i199411-199508

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-24010i199303-199411

main47717-30010i199301-199303

sub47717-24010

main47717-30070i199508-199708

main47717-50051i199411-199508

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-24020i199303-199411

main47717-30020i199301-199303

sub47717-24020

main47717-30080i199508-199708

main47717-50061i199411-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30130i199301-199402

sub47721-30132

main47721-30132i199402-199508

main47721-30180i199508-199708

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30050i199301-199402

sub47722-30052

main47722-30052i199402-199508

main47722-30100i199508-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30230i199301-199304

sub47730-30231

main47730-30231i199304-199402

sub47730-30233

main47730-30233i199402-199508

main47730-30400i199508-199708

47731PISTON, FRONT DISC BRAKE

main47731-30140i199509-199708

main47731-50030i199301-199509

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006i199509-199708

main90522-50002i199301-199509

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020i199301-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14130i199304-199708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060i199304-199708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30230i199301-199304

sub47750-30231

main47750-30231i199304-199402

sub47750-30233

main47750-30233i199402-199508

main47750-30400i199508-199708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i199301-199708

SUB PIN SIDE

main47769-50020i199301-199508

MAIN PIN SIDE

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070i199509-199708

sub47775-50010

main47775-50010i199301-199509

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227i199301-199609

*6-1.0PX14-7.5

main90148-60028i199609-199708

*6-1.0PX14-10.5

25 parts on this diagram · 2 diagrams in section
