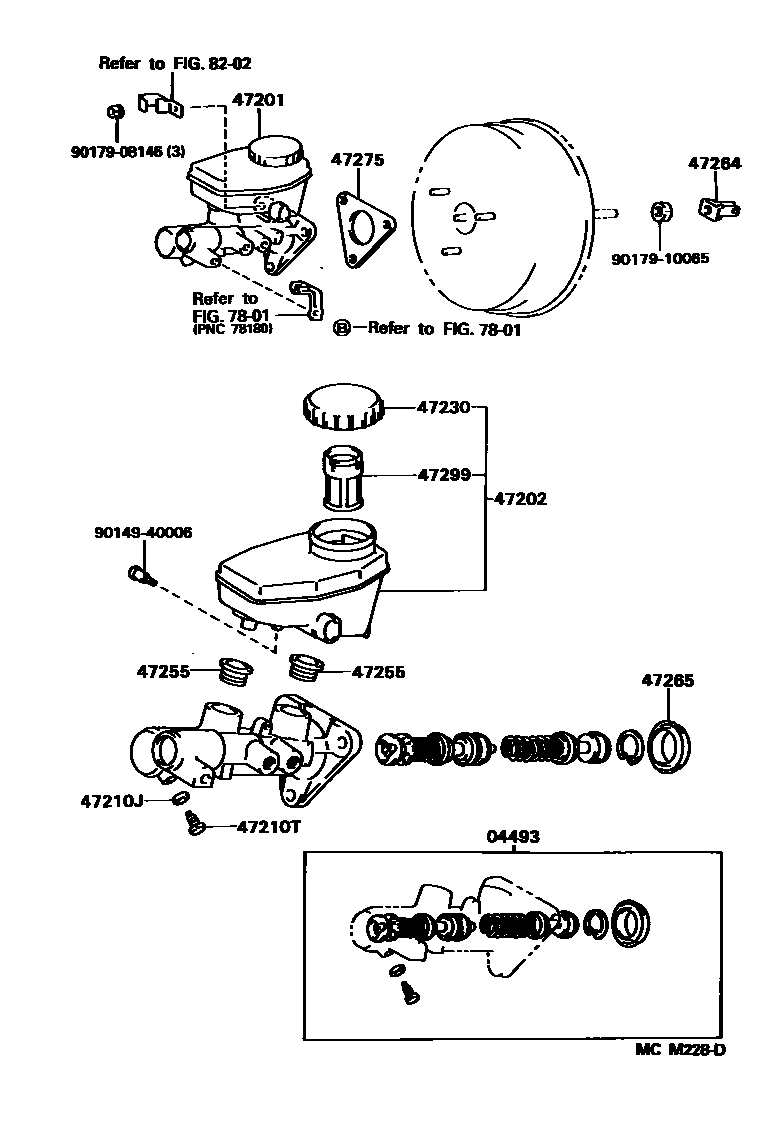

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-24050iJZS147199301-199508

sub04493-30240

main04493-30240iJZS147199508-199708

sub04493-30241

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30520iJZS147..CND199301-199508

W(*TRC)

main47201-30530iJZS147..USA199301-199508

main47201-30630iJZS147..CND199508-199708

W(*TRC)

main47201-30640iJZS147..USA199508-199708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-24010iJZS147..USA199301-199508

sub47220-30080

main47202-30180iJZS147..CND199301-199508

W(*TRC)

sub47220-30070

main47220-30070iJZS147..CND199508-199708

W(*TRC)

main47220-30080iJZS147..USA199508-199708

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iJZS147..USA199301-199708

W(*TRC)

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iJZS147199301-199708

W(*TRC)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iJZS147199301-199708

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iJZS147199301-199708

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iJZS147199301-199708

47265BOOT, MASTER CYLINDER

main47265-22030iJZS147199301-199708

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iJZS147199301-199708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iJZS147199301-199708

7801

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
