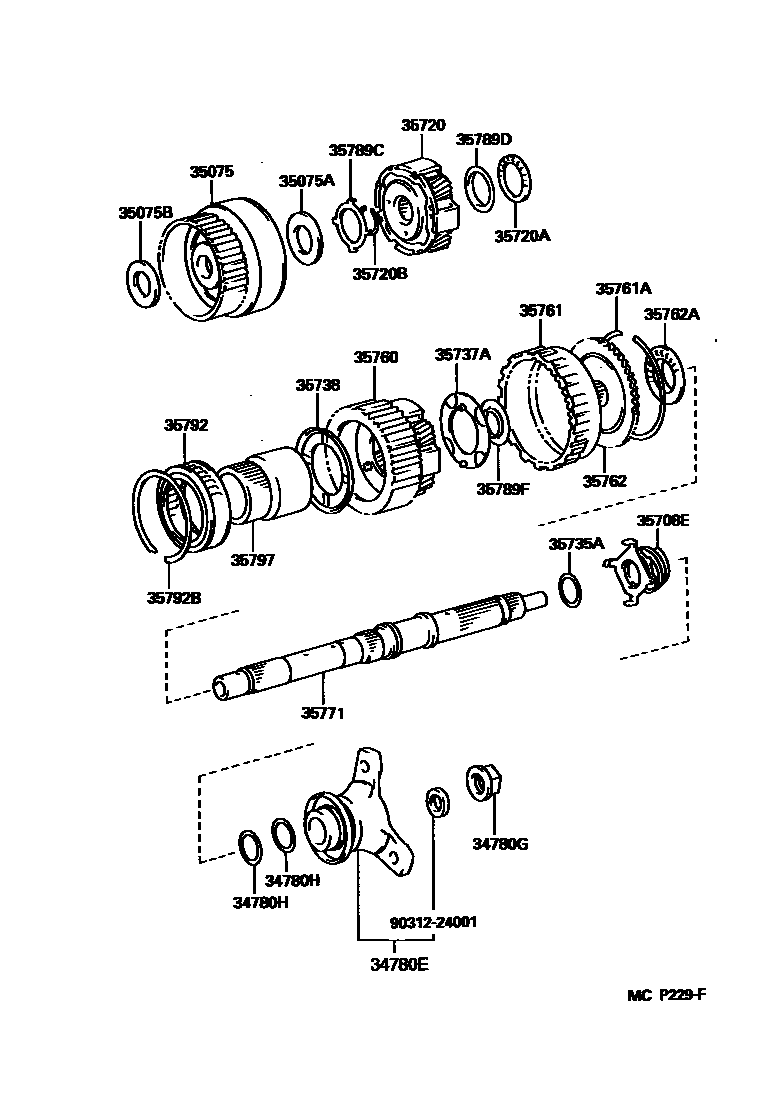

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780HWASHER, PLATE (FOR ATM FLANGE YOKE)
35075GEAR SUB-ASSY, FRONT PLANETARY RING
35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)
35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)
35708EGEAR SUB-ASSY, SPEEDOMETER DRIVE
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
sub90374-38003
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35797RACE, 1 WAY CLUTCH INNER
9031224001
main90312-24001
26 parts on this diagram · 1 diagram in section
