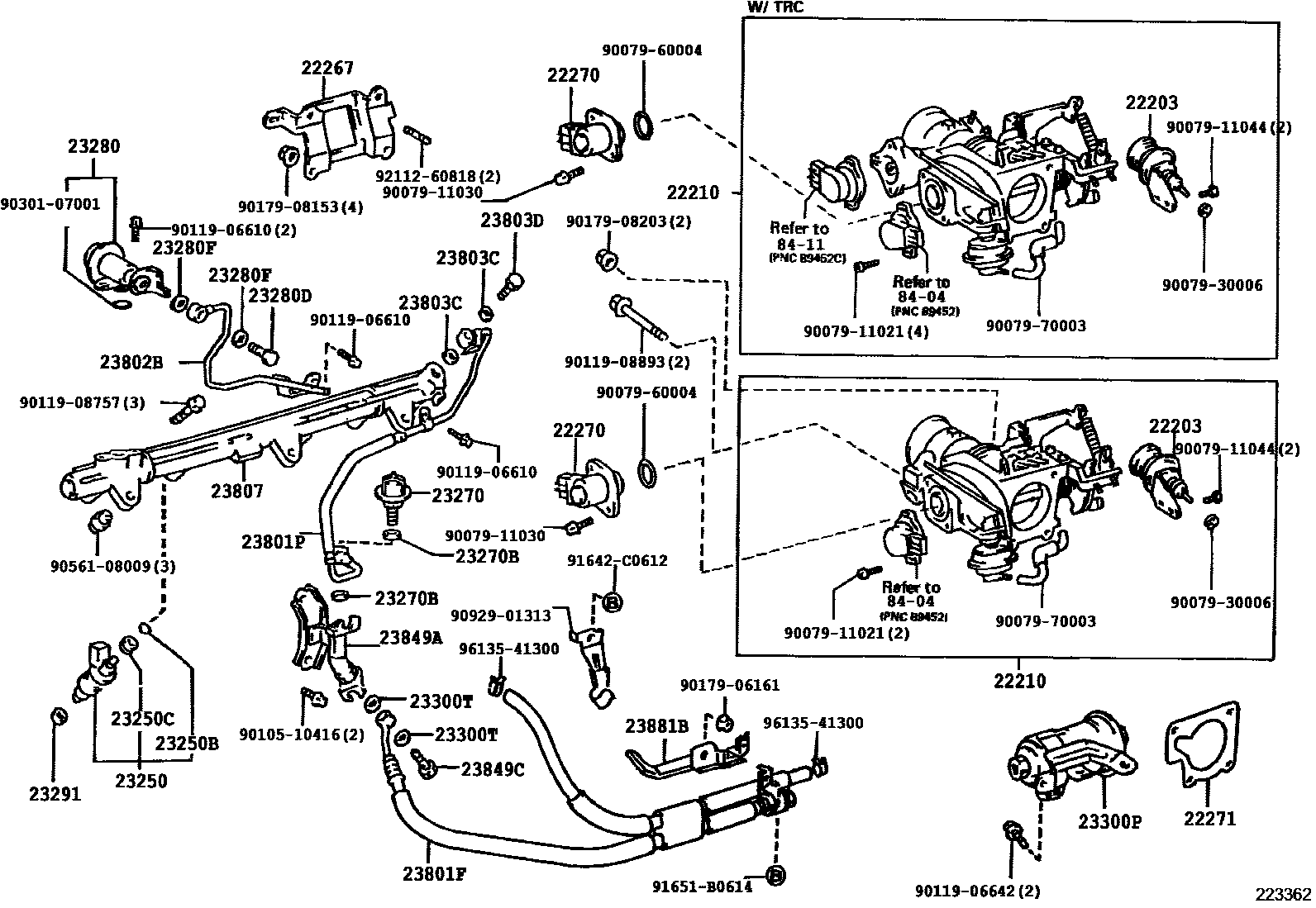

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
W/TRACTION CONTROL
CALIFORNIA SPEC
W/TRACTION CONTROL
W/TRACTION CONTROL & CALIFORNIA SPEC
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
CALIFORNIA SPEC
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
DELIVERY PIPE SIDE
DAMPER SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
CALIFORNIA SPEC
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
23849ASUPPORT, FUEL PIPE
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
23881BBRACKET, FUEL HOSE
8404
8411
9007911021
main90079-11021
9007911030
main90079-11030
9007911044
main90079-11044
9007930006
main90079-30006
9007960004
main90079-60004
9007970003
main90079-70003
9010510416
main90105-10416
9011906610
main90119-06610
9011906642
main90119-06642
9011908757
main90119-08757
9011908893
main90119-08893
9017906161
main90179-06161
9017908153
main90179-08153
9017908203
main90179-08203
9030107001
main90301-07001
9056108009
main90561-08009
9092901313
main90929-01313
91642C0612
main91642-C0612
91651B0614
main91651-B0614
9211260818
main92112-60818
9613541300
main96135-41300
48 parts on this diagram · 2 diagrams in section
